• Model NO.：captain 604
• Certification：CE, GS, UL
• Substrate：Sandwich Panel
• Brand：Captain
• Coating：Painting
• Airflow Direction：Lateral Undershot-type
• Heating Mode：Diesel
• Paint Mist Treatment：Dry-type
• Condition：New
• Outside Dimension：7050 * 5500 * 3500(L*W*H)
• Inside Dimension：6900 * 4000 * 2800mm(L*W*H)
• Front Door(mm)：3200*2600(W*H), 4 Folded
• Service Door (mm)：2000*650(W*H)
• Wall Panel：75mm Rock-Wool Panel, 0.6 Steel
• Basement：300mm Depth with Grids, 3 Rows Grilles
• Inlet Fan(Turbo)：1X7.5kw Turbo Fan
• Outlet Fan(Turbo)：1X7.5kw Turbo Fan
• Heating System：Riello G20 Diesel Oil,Gas Burner
• Lightening System：4X8units Ceiling, 4X12units Side
• Air Speed：0.3-0.35m,S
• Ventilation Type：Full Downdraft
• Filter Type：Dry
• Ramp：1800mm Long, 750mm Wide
• Voltage：According to Need
• Transport Package：Export Container ,Pallet ,Disassembly with Carton
• Specification：CE, SGS
• Trademark：Captain,OEM
• Origin：Jiangsu, China.
• HS Code：8424899990
• Production Capacity：196sets,Month
• Package size per unit product：700.00cm * 535.00cm * 340.00cm
• Gross weight per unit product：3500.000kg

Detailed  specificationInside dimension6900×4000×2800 mm(L×W×H)Outside dimension7050×5500×3500 mm(L×W×H)Front doorFolding door, 4 folds, 3200×2600 mm(W×H), without frame cover, color : blue.Emergency door1 unit, 650×2000mm(W×H), color: whiteBasementGalvanized steel assemble, 300mm high, quadrate steel support, 3 rows grilles made by flat bar and twisted steel, galvanized, 2 rows diamond plate , galvanized; 3ramps, 900×2000mm/pc.Wall panel
Thickness: 75mm, width:950mm, tongue and groove structure, 0.6mm color steel with rock wool inside, color: white.Light
Ceiling Lights: 8Units×4Pcs=32Pcs×36W, Side Lights: 12Units×4Pcs=48Pcs×18W, with electronic ballasts, lighting boxes open outside, illumination≥1200LuxGenerator cabinetIntake from back upper, exhaust from back upper, white coated steel outside covered, galvanized steel inside, filled with heat preservation material inside.Intake and Exhaust systemInlet: 1×7.5KW turbo fan, power: 7.5KW, air capacity: 25000m3/h. Outlet: 1×7.5KW turbo fan, power: 7.5KW, air capacity: 25000m3/h. Water based paint drying system60 units ceiling nozzles with 3 sets of centrifugal fans for drying the Water Based Paint.Heating systemRIELLO RG5S diesel burner, stainless steel heat exchanger, pneumatic damper actuates from spraying to baking cycle. Max. heating productivity: 260000Kcal/h. Spray to baking switchOne manual damper Chimney ducting304 Stainless ducting and one safe fireproof chimney elbow.Purification systemPre-filter, ceiling filter, fiberglass filter, activated carbon filterRoof
Galvanized steelControl system
Spraying, heat spraying, baking, time setting, lighting switch, failure indicator, thermostat, power supply switch, emergency stop, hour meter, temperature limit controller, pressure gauge.Total power 22.5KWUNIT PRICE (FOB QINGDAO) $9860

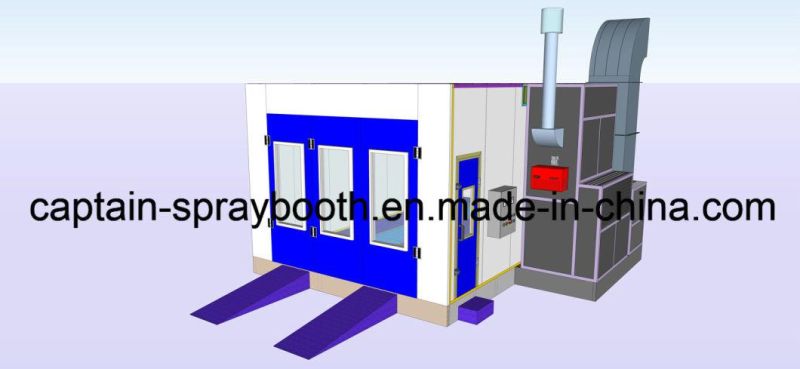

Designed Draw



Production

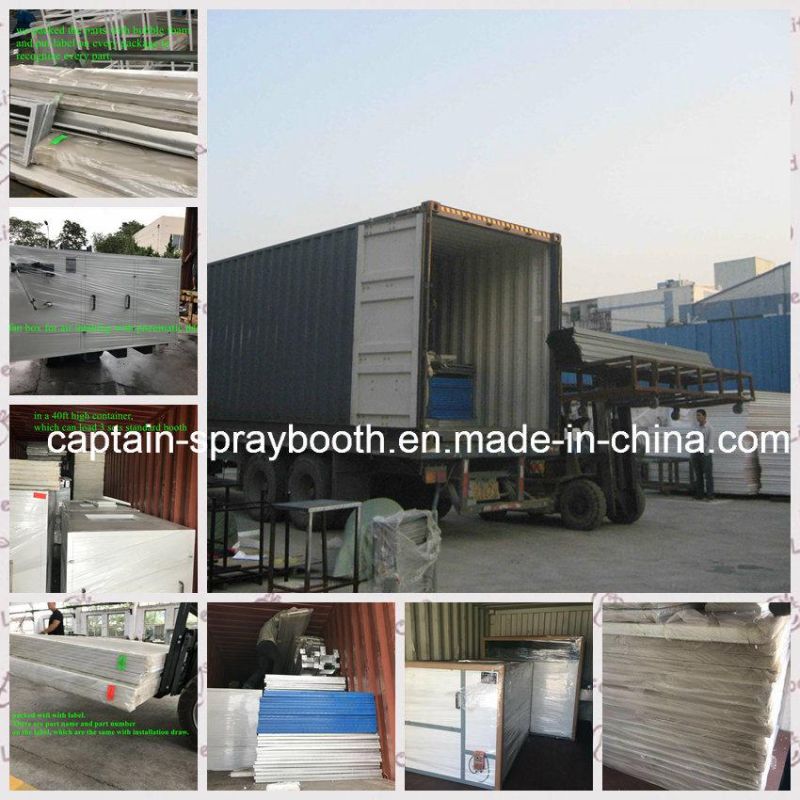

Packing and Delivery

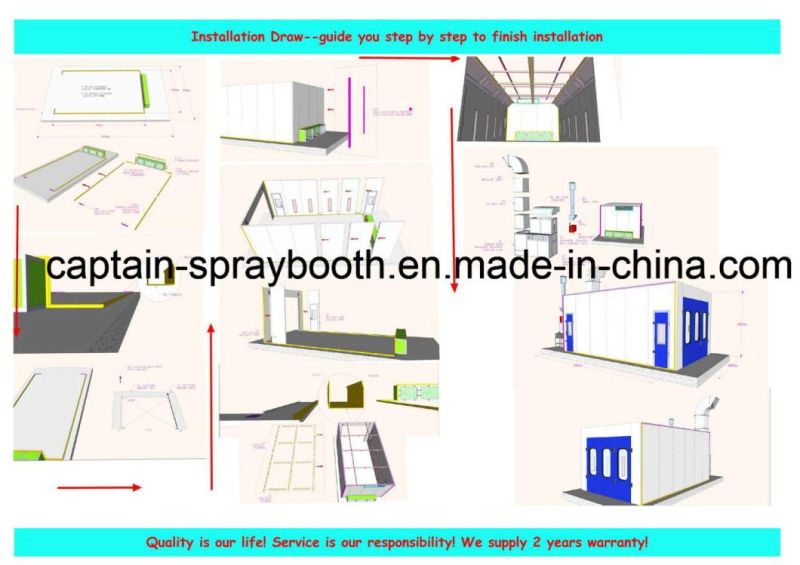

Installation

Parts

High desensity wall panel, two men stand on it, it will not bend.


Stainless steel heat exchanger, we make ourself, our worker is professional, there is no leaking and strong enough.



Our control box is with SCHNEIDER parts


Different Colors for your choice

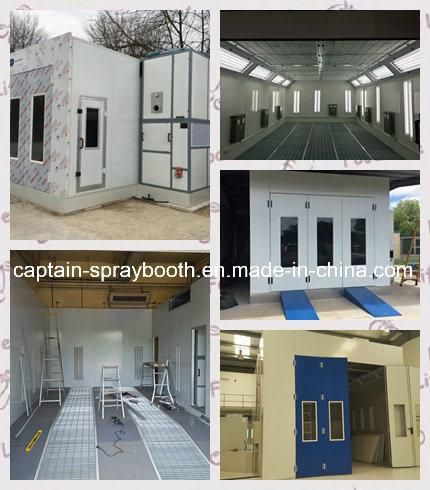

Finished

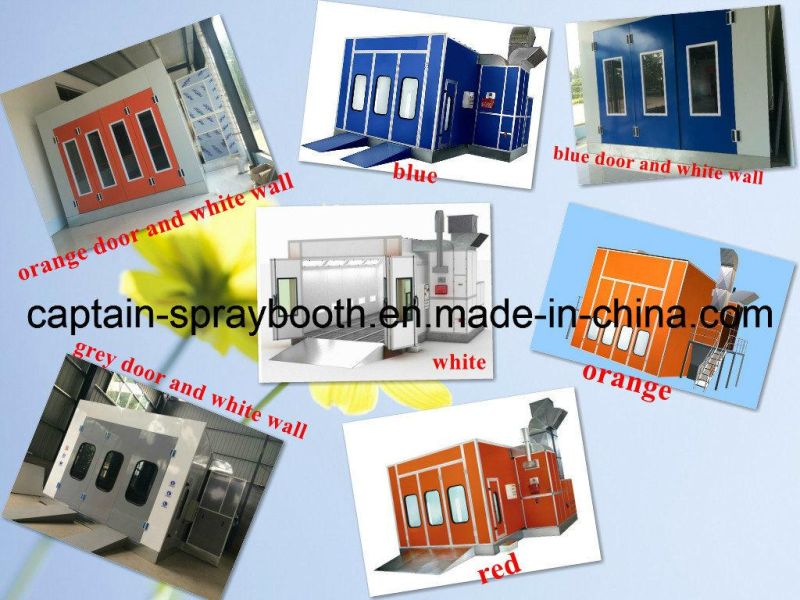

Different Colors

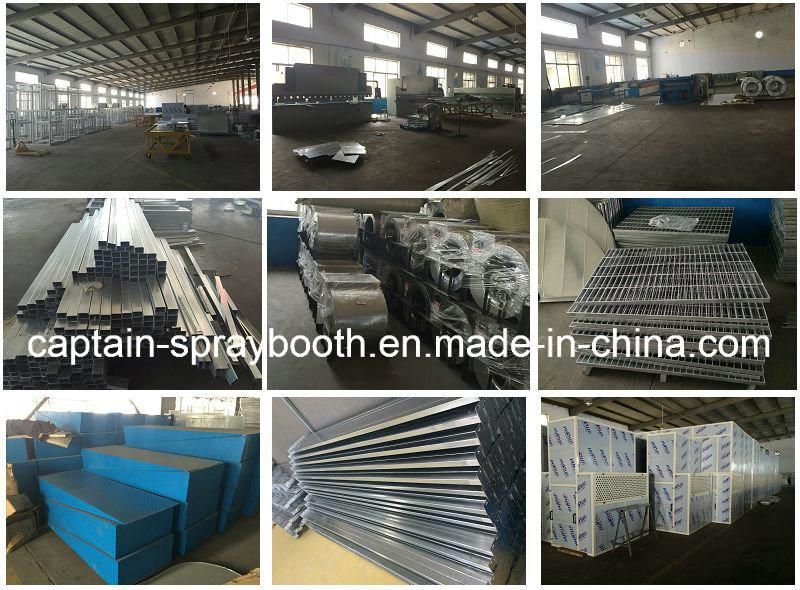

Workshop


Factory View




Captain Spray Booth(Qingdao Hua Yushun Commercial Co., Ltd)
Is a professional leading factory in China, who is specializing in manufacture kinds of paint spray room system. And also offering full garage equipments, such as

Car care equipment.

Car spray&baking room system

Bus spray&baking room system

Furnitue spray&baking room system

Industrial painting&baking room system

High temperature baking room system

Customized spray&bake booth and Offer car spray baking booth accossories


Services We Supply

Customized service

More Than 90% Of Our Spraying Booth Is Customized.

1. We can design the machines according your requirements. At the same time, our engineers will give you our professional suggestions.

2. We can give you free technical support and consultation such as design your factory, make the factory layout drawing and so on.

After-sales service

1. Our fast and professional after service engineer team can go to your factory and install the machine, give you the operating guidance, and train your employees until they can operate the machine well.

2. We often ask feedback and offer help to our customer whose machine have been used in their factory for some time.

3. We provide 2 years warranty.


Captain Advantages

*The same price higher quality, the same quality lower price! ! !
*2 years quality warranty! ! !
*Fast and stable supply capability! ! !
*Personalized design to meet customer various needs! ! !


Competitive Price and High Quality Spraying Booth with Perfect Service Is From Here.
