Auto Spray Booth with Infrared Lamps Heating
Qingdao Hua Yushun Commercial Co., Ltd.- After-sales Service：Local,on Line
- Warranty：24 Months
- Type：Spray Booth
- Certification：CE
- Substrate：Sandwich Panel
- Brand：Captain
Base Info
- Model NO.：captain 603
- Coating：Painting
- Airflow Direction：Fully Undershot-type
- Heating Mode：Infrared Ray
- Paint Mist Treatment：Dry-type
- Condition：New
- Outside Size(mm)：7000*5250*3430(L*W*H)
- Inside Size(mm)：6900*3900*2650(L*W*H)
- Main Door：3000*2600mm(L*W)
- Wallboard：50mm EPS Panel
- Basement：Galvanized & Corrosion Resistant Steel
- Intake Fan：1*7.5kw Turbo Fan
- Exhaust Fan：Optional
- Heating：33PCS Infrared Lamp, Total Power:33kw
- Light：Roof: 24PCS*36W LED Lights
- Air Speed：0.3-0.35m,S
- Ventilation Type：Full Downdraft
- Filter Type：Dry
- Voltage：According to Need
- Color：Red, Blue, White, Orange
- Total Power：8.5kw
- Transport Package：Polyfoam and Cardboards by Sea or Steel Frame
- Specification：CE, SGS, ISO
- Trademark：CAPTAIN
- Origin：Jiangsu, China.
- HS Code：8424899990
- Production Capacity：3600set,Year
Description

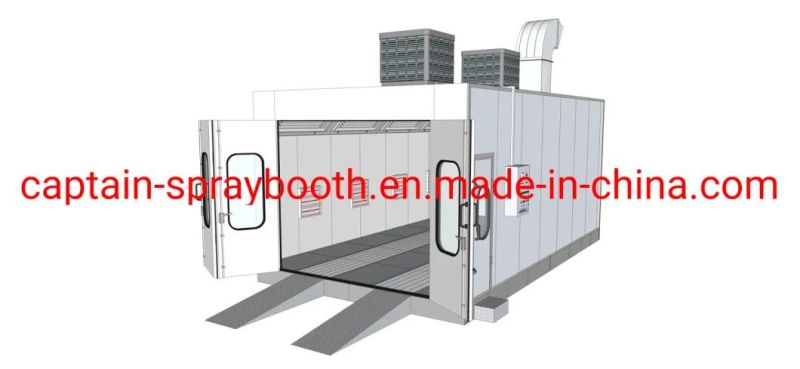

EX-YB 100RSketch Outside Size(mm): 7050*5500*3500 Inside Size(mm): 6900*4000*2800 Front Door(mm): 2800(W)*2600(H), 3 pieces folding doors,frame cover, with two sets of pressure locks. Service Door(mm): 650*1800, with two sets of pressure lock which will automatically open when the pressure inside is over the limit. Total Power: 16 kw Cabin System Wallboard EPS material, tongue and groove interlock construction, thickness: 75 mm, 0.5mm steel plate. Basement 300mm depth, patented circumferential diamond plate design, middle with grids, 2 Pcs ramps, each size: 750X2000MM(WXL). Inlet Fan Double-intake belt centrifugal fan, Capacity: 14500m³/h each. Outlet Fan Double-intake belt centrifugal fan, Capacity: 18000m³/h. Power: 4 kw Power: 5.5kw Quantity: 2 set Quantity: 1 set Ducting 4 meters exhausted air duct, one flop damper, one weather hood, one anti-bird mesh. Purification System G3 grade, Air Inlet pre filter, EU5/F5 high efficiency filter (ceiling filter), G3 grade glass fiber floor filter, exhaust active carbon filter. Heating System Italy Riello G20 diesel burner, 200000Kcal/h. Heating exchanger, stainless steel, argon arc welding, heating exchange rate 85%. Chimney ducting 3 meters stainless ducting and one chimney elbow. Max temp: 80ºC, heating time: 4-6min(20-60ºC), fuel consumption: 5-8 kg/ vehicle. Lighting System Ceiling Lights: 8Units×4Pcs=32Pcs×36W,
Side Lights: 10Units×2Pcs=20Pcs×36W, with electronic ballasts, lighting boxes open outside, illumination≥1200Lux. Controlling System Spraying, heat spraying, baking, time setting, lighting switch, failure indicator, thermostat, power supply switch, emergency stop, hour meter, temperature limit controller. Environmental System G3 grade glass fiber floor filter, exhaust active carbon filter.
Designed Draw
Production

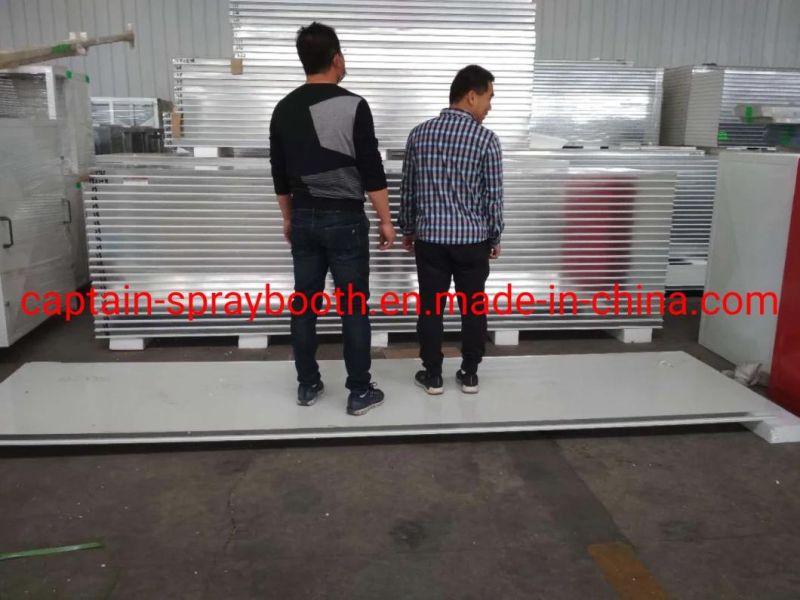

High desensity wall panel, two men stand on it, it will not bend.

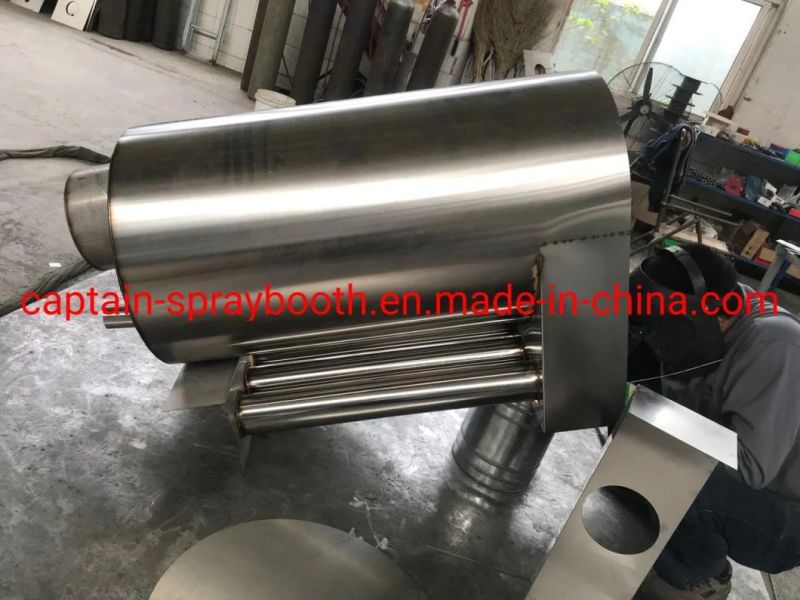

Stainless steel heat exchanger, we make ourself, our worker is professional, there is no leaking and strong enough.

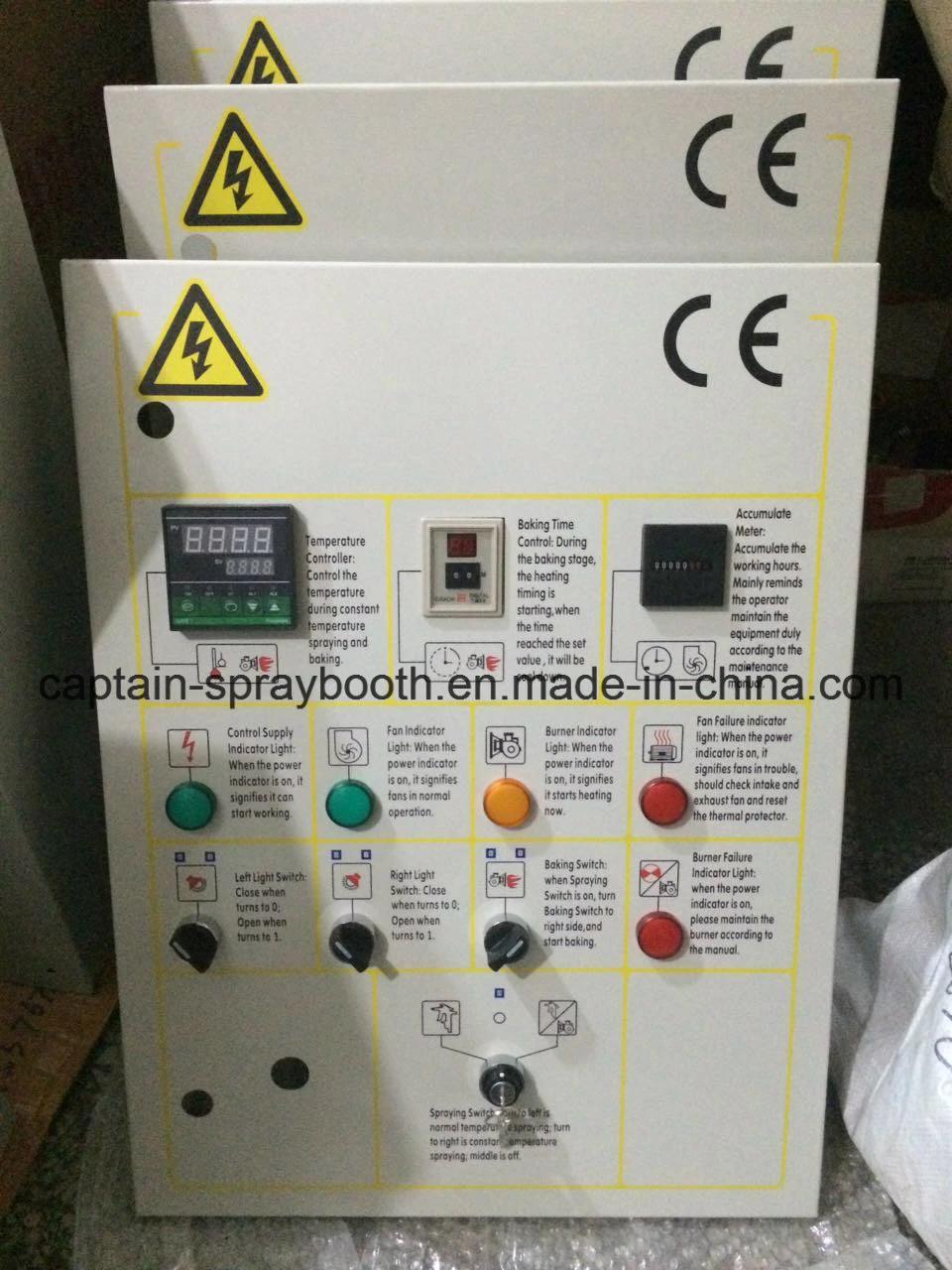

Our control box

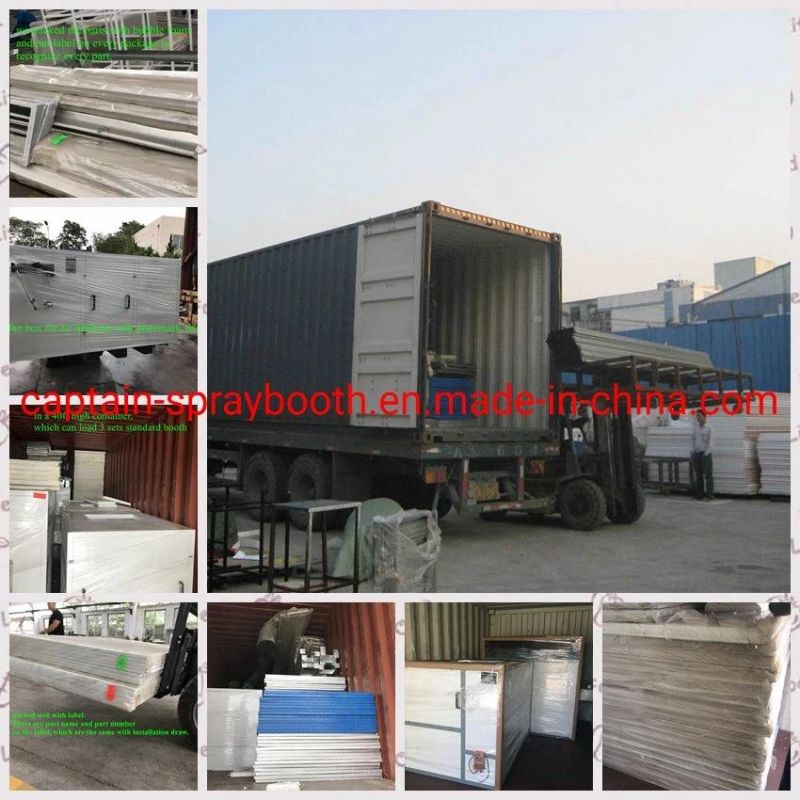

Packing and Delivery

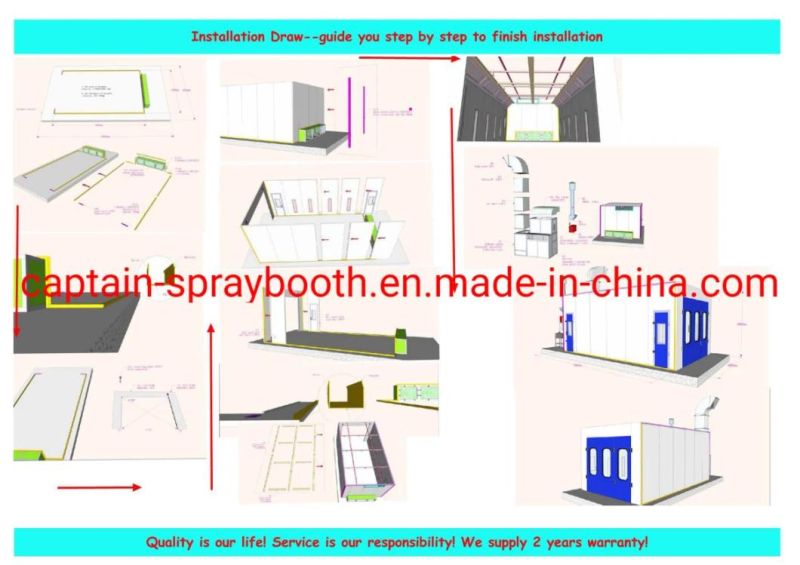

Installation

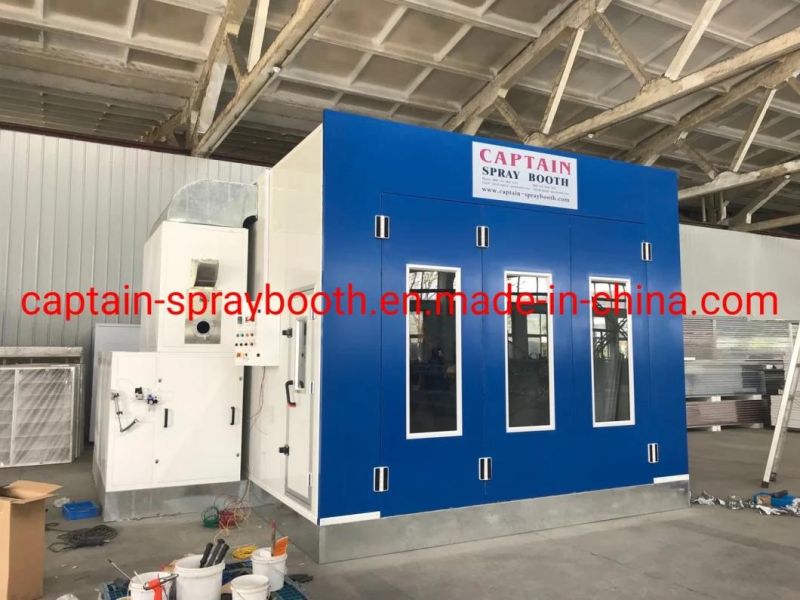

Real pictures of Installed Model----This is the model we installed ourself for testing, it works very well.

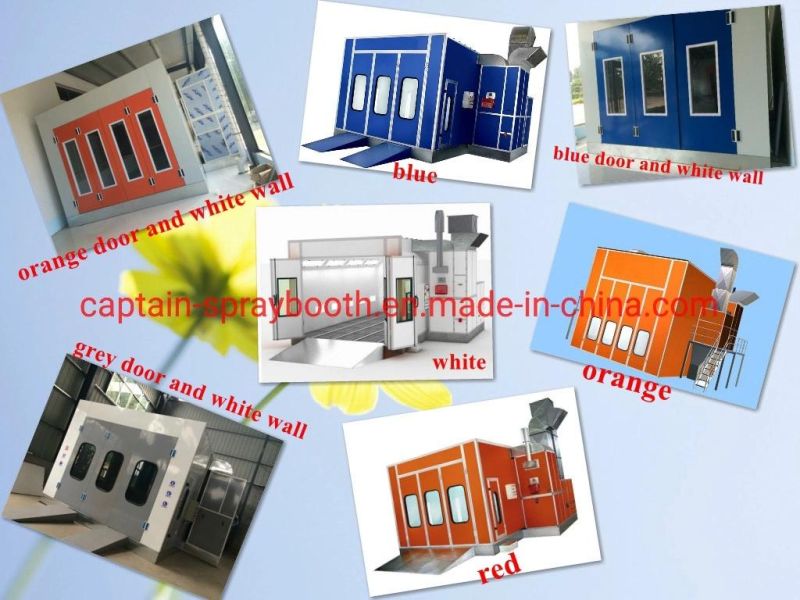

Different Colors for your choice

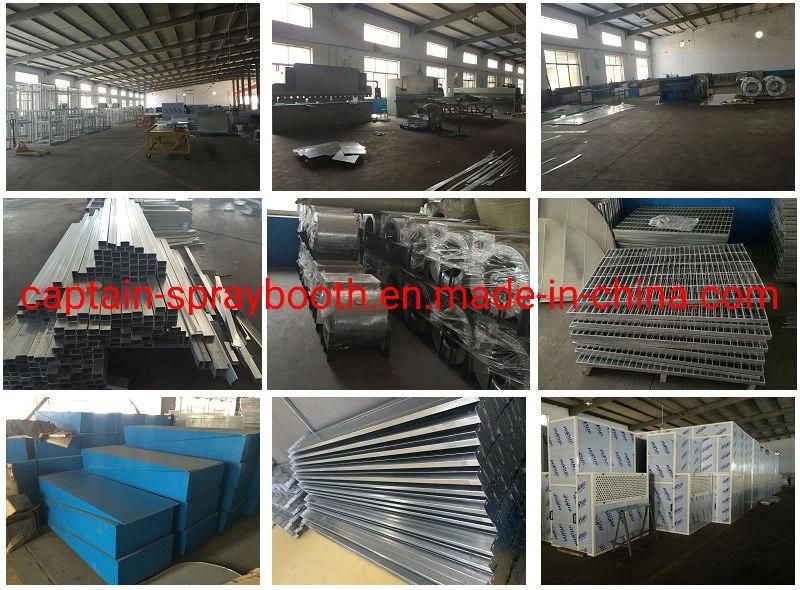

Workshop

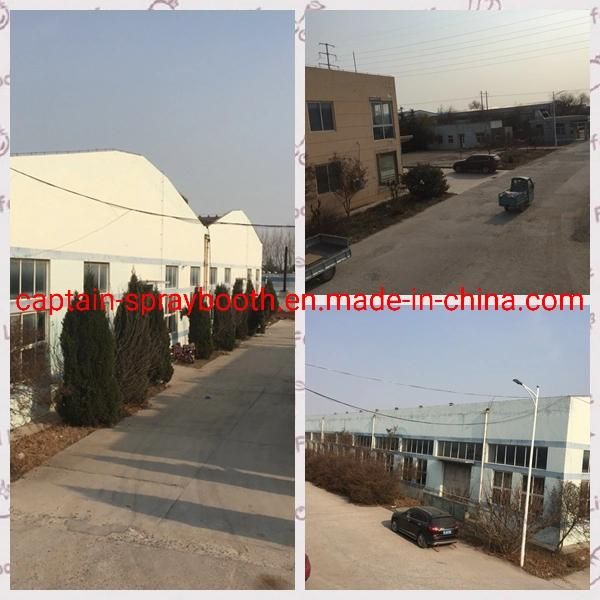

Factory View
Outside size: (mm)7000x5250x3430
Inside size: (mm)6900x3900x2650
Main door size: (mm)3000(W)x2600(H)
Total power: (kw)8.5
Room system
1.50mm EPS insulation wallpanels, roof panels are high quality galvanized sheets.
2. Main door frames are made of bending section, emergency door at the main door.
3. Room frames are fixed by galvanized sheet.
4. The basement consist of galvanized sheets, Corrosion resistant square steel, reinforce checkered plates.
5. Inside ramps construction.
Air circulation system
1.1*7.5kw Single inlet turbo fan, air capacity: 25000m3/h
2. Air generator group consist of painted section bar and galvanized sheets.
3. Exhaust air duct consist of galvanized sheets and flanges.
4. On-load air velocity: 0.35m/s, air change rate: 320times/h
Purification system
1. Inlet air filter is high quality filter, it can catch 10um dust particle.
2. Roof filter is high-efficient filter, it can catch 5um dust particle.
3. Floor filter is fiber glass filter.
Heating system
Infrared Lamps System. It consist of infrared lamps and control systems. Two side walls with 24pcs*1kw infrared lamps. Backside wall with 9pcs*1kw infrared lamps.
Total power: 33kw, It adopts 3 sets contactors to control the lamps seperately.
Max temp: 80C, temperature rise speed: 15-20min(work temperature 20-60C).
Lighting system
1. Roof lighting: 24pcs*36w lamps.
2. Illuminance: 700Lux
3. Side lighting system is optional
Control system
1. It adopts high-quality electronic components, Major loop set Multiple protection.
2. It consist of lighting switch, temperature/time setup, normal temperature paint, constant temperature paint, baking switch, emergency stop switch, fault alarm, hour meter etc.
Exhaust gas disposal
1. Direct exhaust
2. Exhaust fan is optional
20'/40'HQ PCS
1 set/20'GP, 3 sets/40HQ
Sincerely hope can get your inquiry and warmly welcome to our factory!
I'm just here waiting for you!
Introduction of our company
Captain Spray Booth(Qingdao Hua Yushun Commercial Co., Ltd)
Is a professional manufacturer of different kinds of spraybooth and we can customize according to your need and place. And also offering full garage equipments, such as following:
Car care equipment.
Car spray&baking room system
Bus spray&baking room system
Furnitue spray&baking room system
Industrial painting&baking room system
High temperature baking room system
Customized spray&bake booth and Offer car spray baking booth accossories
Services We Supply
Customized service
More Than 90% Of Our Spraying Booth Is Customized.
1. We can design the machines according your requirements. At the same time, our engineers will give you our professional suggestions.
2. We can give you free technical support and consultation such as design your factory, make the factory layout drawing and so on.
After-sales service
1. Our fast and professional after service engineer team can go to your factory and install the machine, give you the operating guidance, and train your employees until they can operate the machine well.
2. We often ask feedback and offer help to our customer whose machine have been used in their factory for some time.
3. We provide 2 years warranty.
Captain Advantages
*The same price higher quality, the same quality lower price! ! !
*2 years quality warranty! ! !
*Fast and stable supply capability! ! !
*Personalized design to meet customer various needs! ! !
Competitive Price and High Quality Spraying Booth with Perfect Service Is From Here.
Side Lights: 10Units×2Pcs=20Pcs×36W, with electronic ballasts, lighting boxes open outside, illumination≥1200Lux.
