Vehicle Spray Booth with CE Certificate
Qingdao Hua Yushun Commercial Co., Ltd.- After-sales Service:Local,on Line
- Warranty:24 Months
- Type:Spray Booth
- Certification:CE, GS, UL, ISO
- Substrate:Sandwich Panel
- Brand:Captain
Base Info
- Model NO.:EZYB
- Coating:Painting
- Airflow Direction:Fully Undershot-type
- Heating Mode:Electric
- Paint Mist Treatment:Dry-type
- Condition:New
- Outside Dimension:7000 * 5400 * 3250(L*W*H)
- Inside Dimension:6900 * 3900 * 2600mm
- Front Door(mm):2800*2500(W*H)
- Service Door (mm):1800*650(W*H)
- Total Power:42kw
- Wall Panel:50mm Rock-Wool Panel, 0.5mm Steel
- Basement:300mm Depth with Grids
- Ramp:Two 2000*900mm Ramps
- Heating:3*9 Units High Energy Infra-Red Lamp
- Water Based Paint Drying System:40 Ceiling Nozzles with 2 Centrifugal Fan
- Air Speed:0.3-0.35m,S
- Ventilation Type:Full Downdraft
- Filter Type:Dry
- Voltage:Customized According to Need
- Certificate:CE
- Transport Package:Export Container ,Pallet ,Disassembly with Carton
- Specification:CE, SGS, ISO
- Trademark:Captain,OEM
- Origin:Jiangsu, China.
- HS Code:8424899990
- Production Capacity:196sets,Month
Description
7000 * 5400 * 3250(L*W*H)Inside Dimension(mm)6900 * 3900 * 2600(L*W*H)Front Door(mm)2800*2500(W*H)Service door (mm)1800*650(W*H)Total Power42KWCabin systemWall panel 50mm rock-wool panel, double face steel sheet thickness: 0.5mm Ceiling panel Galvanized steel sheet. Basement300mm depth, patented circumferential diamond plate design, middle with grids. RampTwo 2000*900mm ramps Glass6mm safety tempered glass WindowsSquare glass WindowsAir Make-up SystemAir Inlet fan system2 * 4 kw double-intake belt centrifugal fan, air capacity for each fan: 14500m3/h. Exhausted fan system1 * 5.5 kw double-intake belt centrifugal fan, air capacity 18000m3/h. Air Flowing speed0.45 m/s in empty booth, 0.35 m/s when painting. Exhausted ducting4 meters air duct, one flop damper, one weather hood, one anti-bird mesh Water based paint drying system40 units ceiling nozzles with 2 sets of centrifugal fans for drying the Water Based Paint.Purification SystemPre-filterG3 grade, Air Inlet filter Ceiling filterEU5 / F5 Floor filterGreen fiber glass filter / G3 grade Exhausted fan FiltersFiber glass filter. Heating With 9 units high energy short wave infra-red lamps for heating. 3 pcs/ unit, each lamp 1 KW, total power of infra-red lamp:27KW Max heating temperature
Heating time80 degree centigrade
4-6min(20-60 degree centigrade)Lighting SystemCeiling lights8 Units, each 3 x 36W lamps, Total 1152 W Illumination 900LUXControlling systemSwitched control panelSpraying & baking switch, lighting switch, emergency stop, breakdown alarm, failure alarm

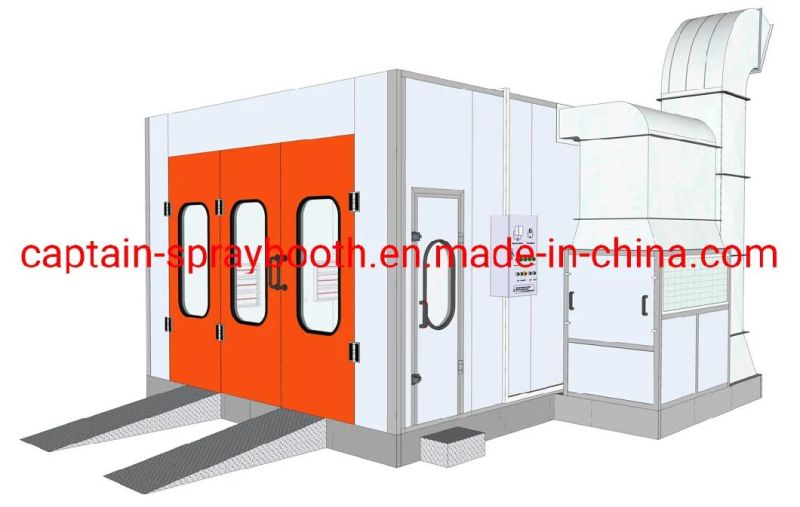

basic draw


production

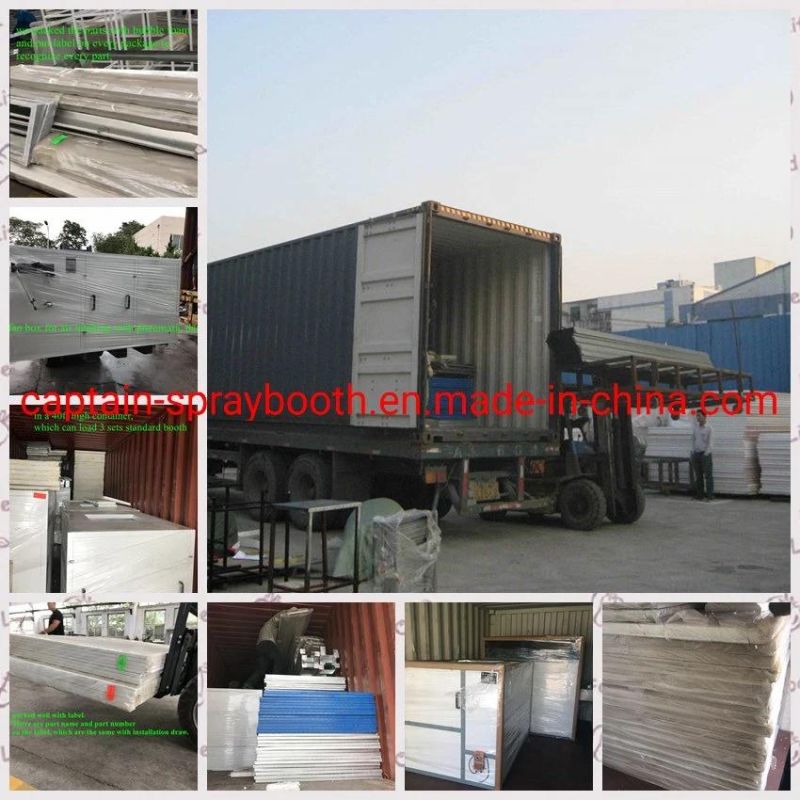

package and delivery

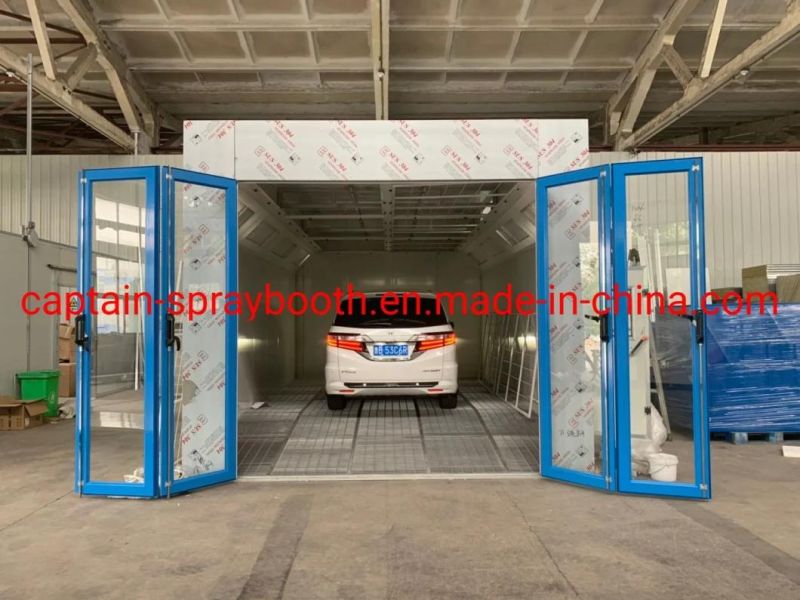

installation

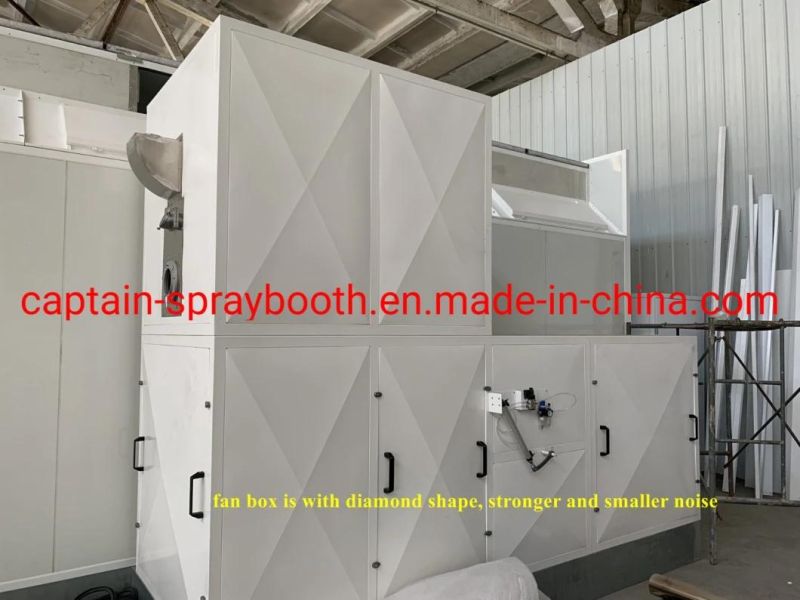

high quality parts

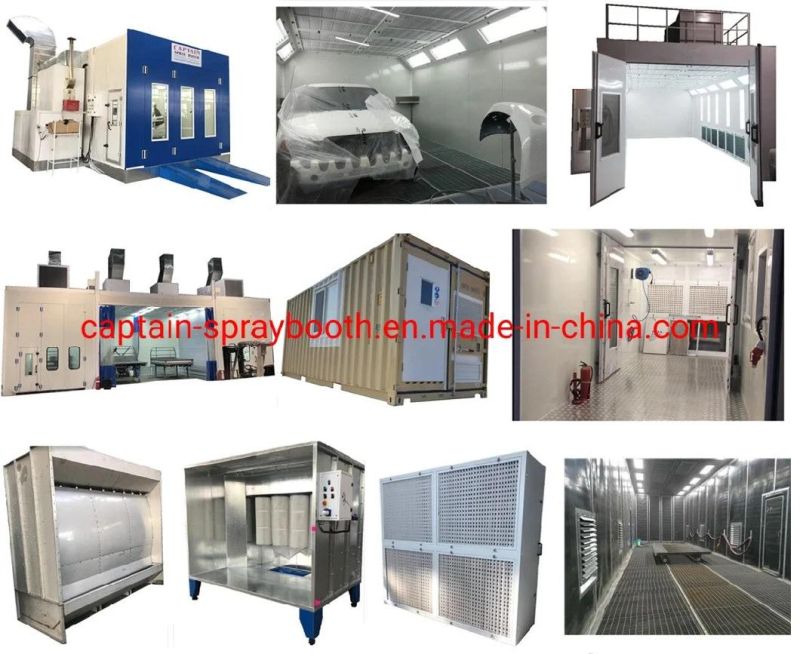

installed models

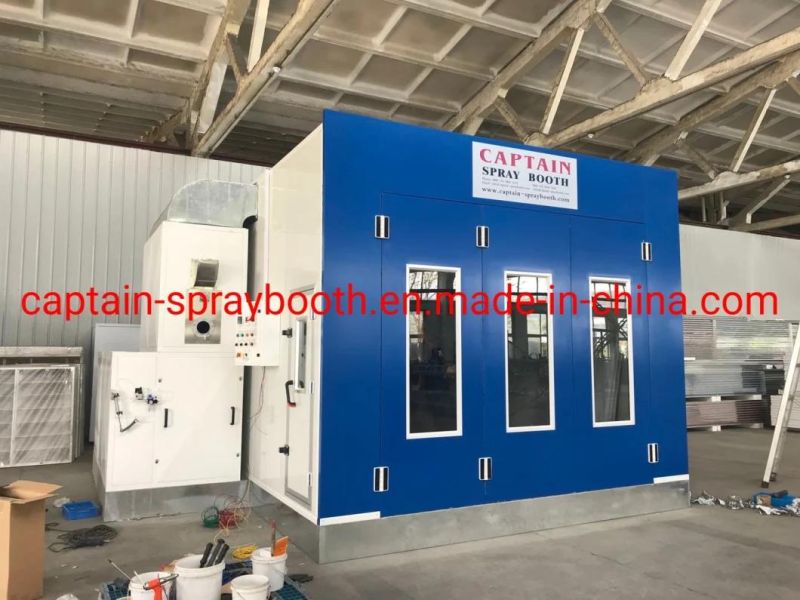

our workshop

factory view

Captain Spray Booth(Qingdao Hua Yushun Commercial Co., Ltd)
Is a professional leading factory in China, who is specializing in manufacture kinds of paint spray room system. And also offering full garage equipments, such as
Car care equipment.
Car spray&baking room system
Bus spray&baking room system
Furnitue spray&baking room system
Industrial painting&baking room system
High temperature baking room system
Customized spray&bake booth and Offer car spray baking booth accossories
Services We Supply
Customized service
More Than 90% Of Our Spraying Booth Is Customized.
1. We can design the machines according your requirements. At the same time, our engineers will give you our professional suggestions.
2. We can give you free technical support and consultation such as design your factory, make the factory layout drawing and so on.
After-sales service
1. Our fast and professional after service engineer team can go to your factory and install the machine, give you the operating guidance, and train your employees until they can operate the machine well.
2. We often ask feedback and offer help to our customer whose machine have been used in their factory for some time.
3. We provide 2 years warranty.
Captain Advantages
*The same price higher quality, the same quality lower price! ! !
*2 years quality warranty! ! !
*Fast and stable supply capability! ! !
*Personalized design to meet customer various needs! ! !
Competitive Price and High Quality Spraying Booth with Perfect Service Is From Here.
