• Model NO.：EUS900A
• Delivering Method：Sea Shipping; Air Shipping
• Production Time：20-25 Working Days
• Gurantee：One Year of Free Maintenance for Overall Unit, EQ
• Function：Two Choice: Eui Eup,Heui, CRI,Heui
• Certificate：ISO, CE
• Bip Function：Cam Box Could Includes Bip Sensor (Opitonal)

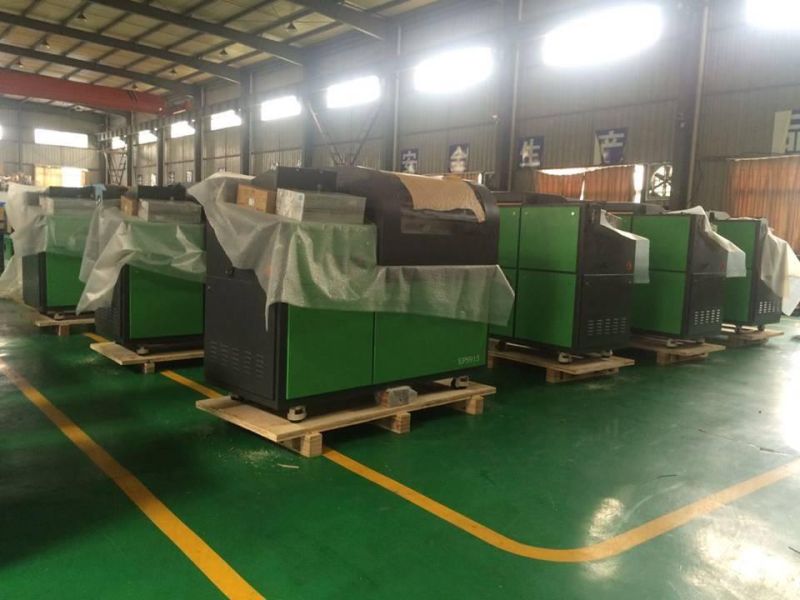

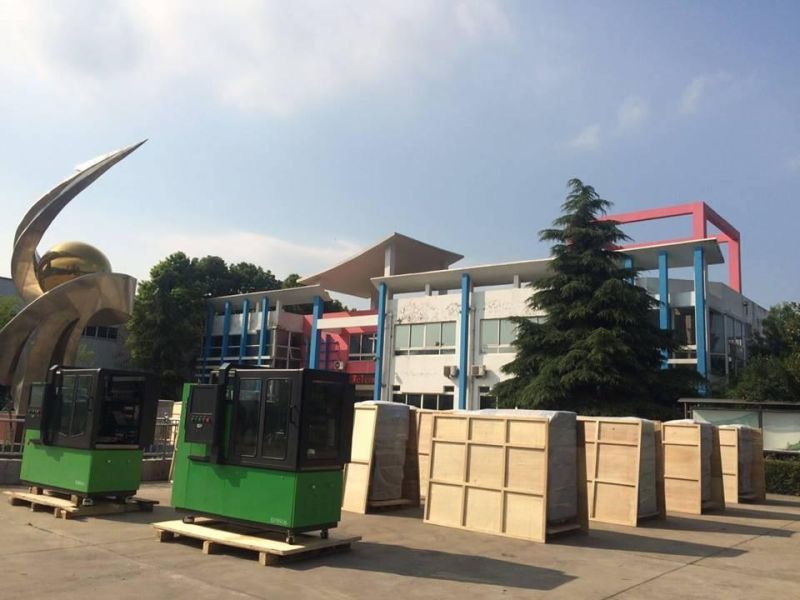

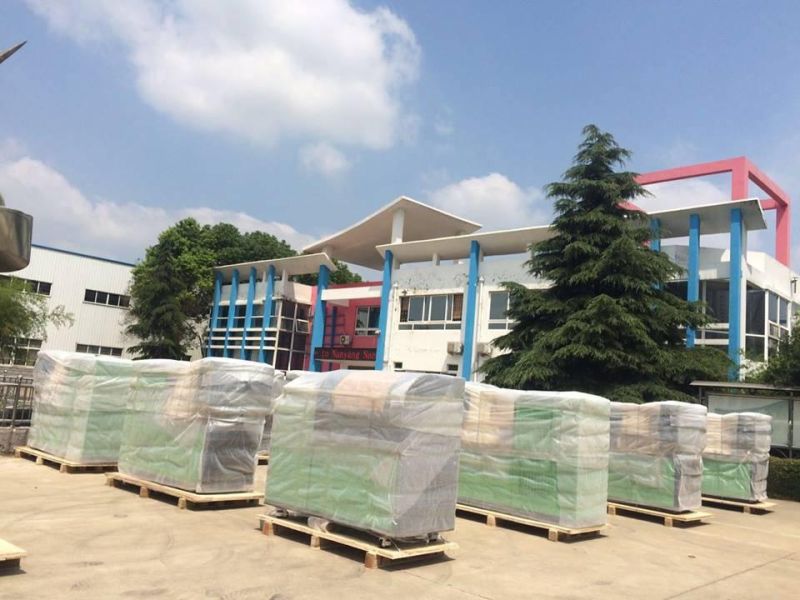

• Transport Package：Plywood Box
• Specification：203CM*101CM*190CM; 1100kgs
• Trademark：NANT
• Origin：China
• HS Code：9031200090
• Production Capacity：1000 Sets,Year

Basic Info.

Model NO. EUS900A Delivering Method Sea Shipping; Air Shipping Production Time 20-25 Working Days Gurantee One Year of Free Maintenance for Overall Unit, EQ Function Two Choice: Eui Eup/Heui, CRI/Heui Certificate ISO, CE Bip Function Cam Box Could Includes Bip Sensor (Opitonal) Transport Package Plywood Box Specification 203CM*101CM*190CM; 1100kgs Trademark NANT Origin China HS Code 9031200090 Production Capacity 1000 Sets/Year

Product Description

EUI EUP/CAT HEUI test bench EUS900


Functions and characteristics :
1.Automatically test C7/C9/C-9,C3126/3408,Ford Power Stroke  6.0L 3412E/ISUZU and so on middle pressure common rail product
2.Automatically test the injector seal, actuation point, pilot injection, medium speed, maximum load, the maximum test pressure is 2600 bar
3.Automatically test Bosch, Carter, CUMMINS, DDC, Delphi, Mercedes-Benz, Volvo, EUI/EUP (Electronic Unit Injectors/Electronic Unit Pumps) and dual-valve E3,CUMMINS ISX and other special products.
4.Automatically test various solenoid valve injector and piezo injector.
5.Automatically test the performance of injector solenoid valve.
6.Automatically test voltage-current curve of the injector.
7. G2.9/3116 testing (optional)

Main configurations:
1. High-precision cam drive (BIP function optional)
2. Different lift special cam and injector adapters for many kind products
3. Includes two flow meters
4. Middle pressure common rail special bracket.
5. Special high - pressure piston pump
6. Industrial air-conditioner refrigeration, dual temperature control fuel tank
7. Output power 15kw, there are different power supply available.

Features:
1. Include diesel hydraulic implementation, consistent with the fuel injection to prevent the mixture of diesel and lube oil, cause test conditions change and then affect the test accuracy.
2. Different types of special-purpose cam not only ensures the cam generation but also ensures the cam generation curve.
3. Embedded industrial computer systems and user-friendly operation design to ensure the control system stability and accuracy.
4. Include Chinese, English, German, Spanish, French, Russian and Portuguese operating interface, which is proper for global using all around the world.
5. Database (test plan) update on-line.
