• Model NO.：GL2-CE
• Heating Mode：Diesel
• Paint Mist Treatment：Dry-type
• Condition：New
• Door Width(M)：3.0
• Door Height(M)：2.66
• Air Flow (M3/H)：24000
• Control Panel：Straight Driven Motor
• Lighting System：Upper Light
• Filters：High Efficiency Filter
• Color：Red Blue Orange White
• Usage：Car Painting Baking
• Vehical Suited：Saloon Car
• Warranty：Yes
• Transport Package：Iron Frame Packing and Carton Packing
• Specification：panel sandwich style, δ =50mm, polystyrene
• Trademark：GUANGLI
• Origin：Guangzhou, China
• HS Code：84198990
• Production Capacity：10, 000 PCS,Year

Basic Info.

Model NO. GL2-CE Heating Mode Diesel Paint Mist Treatment Dry-type Condition New Door Width(M) 3.0 Door Height(M) 2.66 Air Flow (M3/H) 24000 Control Panel Straight Driven Motor Lighting System Upper Light Filters High Efficiency Filter Color Red Blue Orange White Usage Car Painting Baking Vehical Suited Saloon Car Warranty Yes Transport Package Iron Frame Packing and Carton Packing Specification panel sandwich style, δ =50mm, polystyrene Trademark GUANGLI Origin Guangzhou, China HS Code 84198990 Production Capacity 10, 000 PCS/Year

Product Description

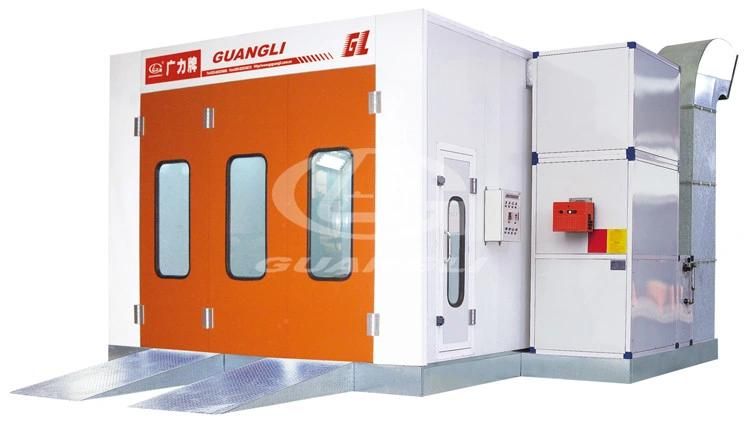

                 Diesel or Gas Heated Automotive Car Paint Booth China
Description
--Wall panel :sandwich style,δ=50mm,rock wool.(Polystyrene is optional)
--Basement:steel structure,3rows of vein board and 2 rows of grids,full grids as optional.
--Door:3 pcs of front door without aluminum side cover.1 pcs of emergency door with pressure lock.
--Ramp: 2 pcs of vein board.
--One 7.5kw intake fan.
--4m straight exhaust ducts,one 90° bend,and one 60°bend,4m straight chimney and 2 small bends.
--Spraying/baking transition damper,automatically air controlled.
--Heat exchanger:stainless steel.Riello G20 Burner.
--Roof filter:4 pcs of filter,mounted above support frame,which is made of steel and podwer coated.
--2pcs of floor filter and 1pcs of outlet filter.
--Upper light:10sets,4*40w per set.
--Control box:components made in china,overload,overheat,phase-lacking protection,straight driven motor.
--Automatically stop when preset time is up.
--Constant temperature spraying.

Model	GL2-CE
External size (m)	7.0x5.3x3.5
Internal size (m)	6.9x3.9x2.7
Entrance width(m)	3.0
Entrance height(m)	2.66
Fan capacity( m3/h )	24000
Air velocity (m/s)	0.25-0.35
Drying temperature(°C)	60-80
Oil consumption (L/unit)	6-8
Power (kw)	9.5
Suitable automobile Type	Saloon Car

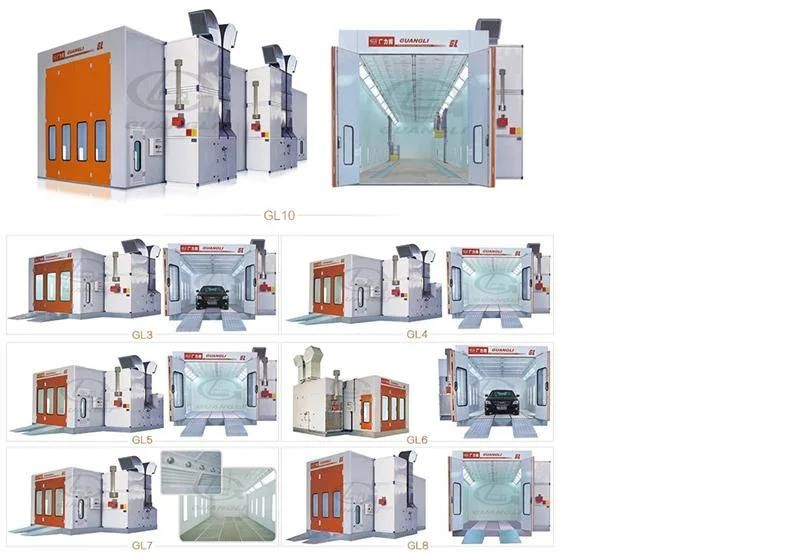

Our product series



Why Choose Us
1.More than 20-year experience in Spray booth and car lift field.
2.Superb unique technology and Automatic production line.
3.Large order can be placed.
4.Advanced equipment and exquisite workmanship.
5.Durable and reliable.
6.Excellent pre-sales and after-sales service.
7.24H service is available.
Factory Show
GZ GUANGLI EFE CO.,LTD is the first and the largest auto spray booth manufacturer in China, having a good reputation among Chinese auto-maintenance enterprise. The sales volume of spray booth
ranks top in this field over years.
Founded in 1994, GZ GUANGLI EFE CO.,LTD is a  professional spray booth and car lift manufacturer
in China with more than 22 years technical and production experience,which covers 58,000M² of grounding area and 36,000M² of building area,having a good reputation among Chinese auto-maintenance enterprise.
Our products have been approved and authorized in many car manufacturers' and thought highly of:
Guangzhou Honda,Dongfeng Honda,FAW Toyota,Dongfeng Peugeot,Dongfeng Nissan,BMW South
China etc.

Equipment
We have the most-advanced sheet metal production line imported from Europe and have achieved the
world-class production level among this industrial.


Exhibition



Service after the Sale

Our relationships with our customers don't stop once the product has been installed. Guangli offers many options for service and maintenance, and provides a full line of replacement parts and filters to ensure your products operate at peak efficiency.
