• Model NO.：C-02
• Certification：CE, GS, UL, ISO
• Substrate：Steel
• Brand：Captain
• Coating：Painting
• Airflow Direction：Lateral Undershot-type
• Heating Mode：Diesel
• Paint Mist Treatment：Dry-type
• Condition：New
• Outside Dimension：7000*5300*3500mm(L*W*H)
• Inside Dimension：6900*4000*2800mm(L*W*H)
• Front Door(mm)：2800(W)*2600(H), 3 Folded, with 2 Pressure Lock
• Service Door (mm)：650*1800, with Two Sets of Pressure Lock
• Wall Panel：50mm EPS Panel, Tongue and Groove Interlock Constr
• Basement：Circumferential Diamond Plate Design, Middle with
• Inlet Fan(Centrifugal)：2X3kw Centrifugal Fan
• Outlet Fan(Centrifugal)：1X4kw Centrifugal Fan
• Heating System：Italy Baltut Bt14 Diesel Burner
• Lighting System：8unitsx4 Ceiling, 10unitsx2 Side
• Air Speed：0.3-0.35m,S
• Ventilation Type：Full Downdraft
• Filter Type：Dry
• Voltage：Customized According to Need
• Certificate：CE
• Transport Package：Export Container ,Pallet ,Disassembly with Carton
• Specification：CE, SGS, ISO
• Trademark：Captain,OEM
• Origin：Jiangsu, China.
• HS Code：8424899990
• Production Capacity：196sets,Month
• Package size per unit product：700.00cm * 535.00cm * 340.00cm
• Gross weight per unit product：3500.000kg

EX-YC 100RSketch Outside Size(mm):7000*5300*3500Inside Size(mm):6900*4000*2800Front Door(mm):2800(W)*2600(H), 3 pieces folding doors,frame cover, with two sets of pressure locks.Service Door(mm):650*1800, with two sets of pressure lock which will automatically open when the pressure inside is over the limit.Total Power:12 kwCabin SystemWallboardThickness: 50 mm, EPS material, tongue and groove interlock construction. Basement300mm depth, patented circumferential diamond plate design, middle with grids, 2 Pcs ramps, each size: 750X2000MM(WXL). Inlet FanDouble-intake centrifugal fan, Capacity: 10500m³/h each.Outlet FanDouble-intake centrifugal fan, Capacity: 14500m³/h.  Power: 3 kw Power: 4 kw  Quantity: 2 set Quantity: 1 set Ducting3 meters exhausted air duct, one flop damper, one weather hood.Purification SystemG3 grade, Air Inlet pre filter, EU5/F5 high efficiency filter (ceiling filter), G3 grade glass fiber floor filter.Heating SystemItaly Baltut BT14 diesel burner, 140000Kcal/h. Heating exchanger, stainless steel, argon arc welding, heating exchange rate 85%. Chimney ducting2 meters stainless ducting and one chimney elbow. Max temp: 80 degree centigrade, heating time: 5-8 min(20-60 degree centigrade),fuel consumption: 4-6 kg/ vehicle.Lighting SystemCeiling Lights: 8Units×4Pcs=32Pcs×36W,
Side Lights: 10Units×2Pcs=20Pcs×36W, with electronic ballasts, lighting boxes open outside, illumination≥1200Lux.Controlling SystemSpraying, heat spraying, baking, time setting, lighting switch, failure indicator, thermostat, power supply switch, emergency stop, hour meter, temperature limit controller.Environmental SystemG3 grade glass fiber floor filter.
Basic Draw----we can make draw according to your need and your installation place


Production----every step we do is according to our draw, we have all kinds of advanced machines to make production precise

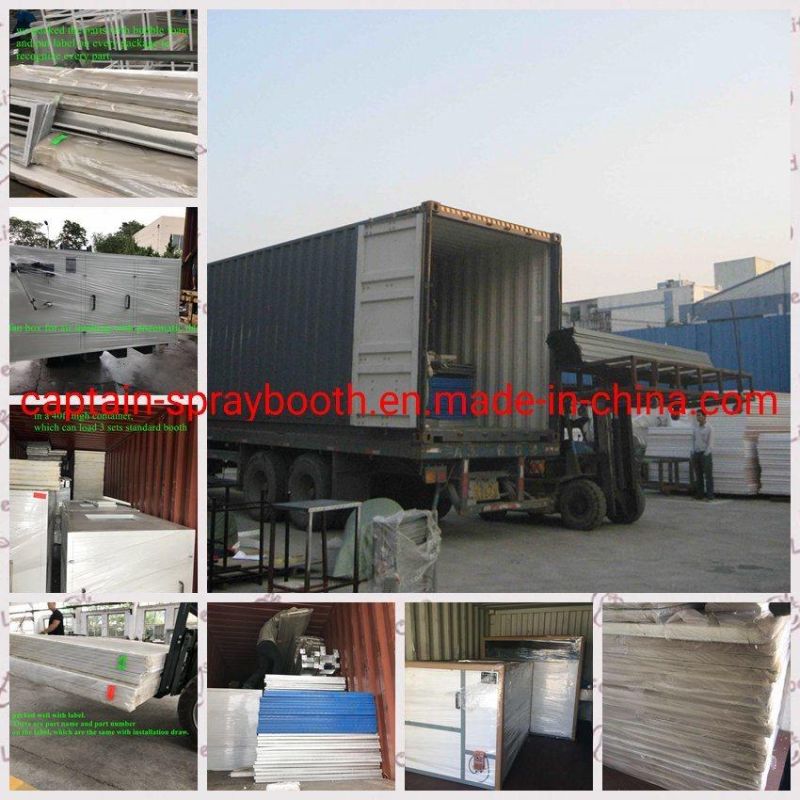

Package and Delivery----every package has a lable, we put part name and number on it. If 3 sets in one high container, we will have 3 different colors of lable for differentiate every ste.


Installation----We can give you installation draw to guide you assemble step by step, and we also have installation vedio on Youtube.

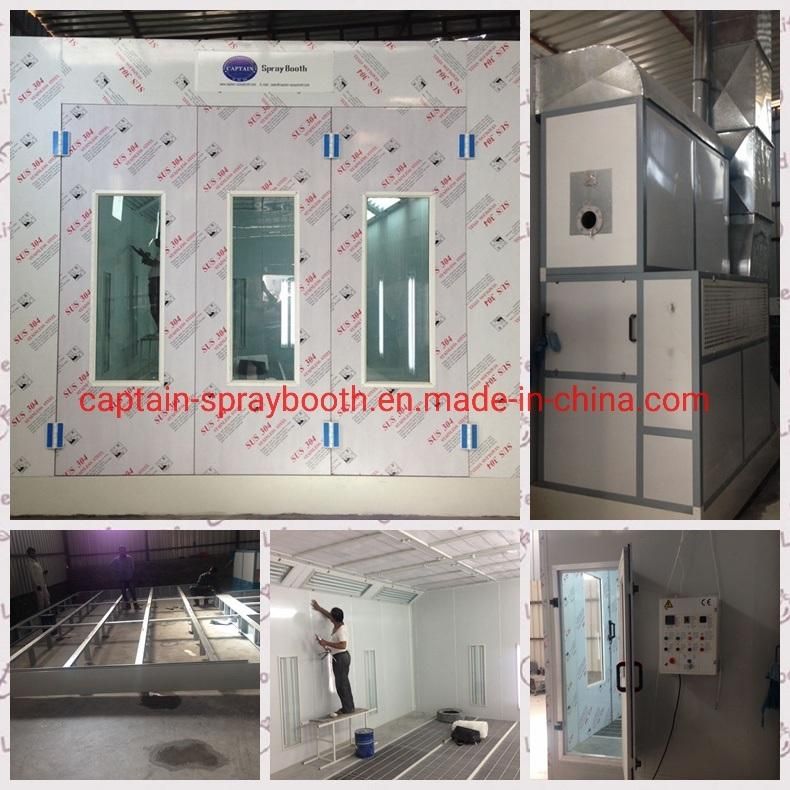

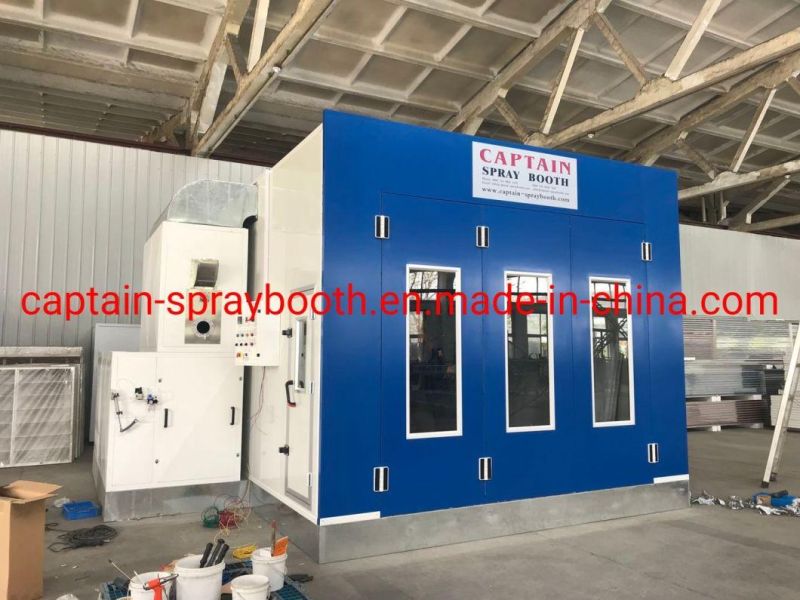

Real pictures of Installed Model----This is the model we installed ourself for testing, it works very well.

The installed models by our customers

Parts

High desensity wall panel, two men stand on it, it will not bend.


Stainless steel heat exchanger, we make ourself, our worker is professional, there is no leaking and strong enough.



Our control box is with SCHNEIDER parts


Different Colors for your choice

Workshop---- pictures for our workshop and stock, you  can see we have standard workshop and machine for producing, and enough stock for ensuring fast delivery



Factory View





Sincerely hope can get your inquiry and warmly welcome to our factory!
I'm just here waiting for you!

Introduction of our company

Captain Spray Booth(Qingdao Hua Yushun Commercial Co., Ltd)
Is a professional manufacturer of different kinds of spraybooth and we can customize according to your need and place. And also offering full garage equipments, such as following:

Car care equipment.

Car spray&baking room system

Bus spray&baking room system

Furnitue spray&baking room system

Industrial painting&baking room system

High temperature baking room system

Customized spray&bake booth and Offer car spray baking booth accossories


Services We Supply

Customized service

More Than 90% Of Our Spraying Booth Is Customized.

1. We can design the machines according your requirements. At the same time, our engineers will give you our professional suggestions.

2. We can give you free technical support and consultation such as design your factory, make the factory layout drawing and so on.

After-sales service

1. Our fast and professional after service engineer team can go to your factory and install the machine, give you the operating guidance, and train your employees until they can operate the machine well.

2. We often ask feedback and offer help to our customer whose machine have been used in their factory for some time.

3. We provide 2 years warranty.


Captain Advantages

*The same price higher quality, the same quality lower price! ! !
*2 years quality warranty! ! !
*Fast and stable supply capability! ! !
*Personalized design to meet customer various needs! ! !


Competitive Price and High Quality Spraying Booth with Perfect Service Is From Here.
