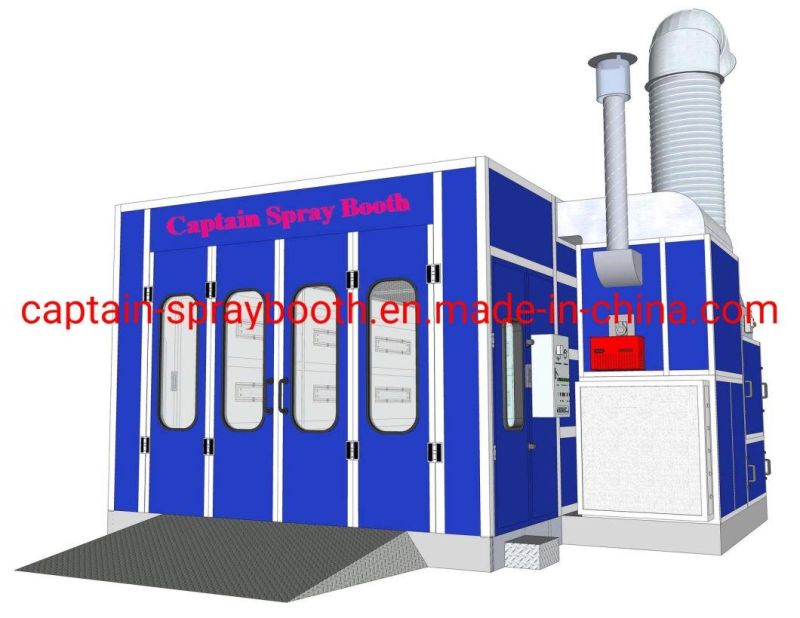

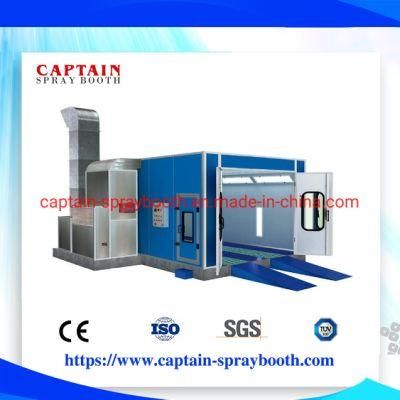

• Model NO.：CP-Y
• Certification：CE
• Substrate：Steel
• Brand：Captain
• Coating：Painting
• Airflow Direction：Cross-flow Type
• Heating Mode：Diesel
• Paint Mist Treatment：Wet-type
• Condition：New
• Inside Dimension：6900X4000X2600mm(Lxwxh)
• Outside Dimension：7000X5550X3250mm(Lxwxh)
• Main Door：3-Folded, 2700X2500mm(Wxh)
• Personal Door：1-Fold, 650X1800mm(Wxh)
• Wall Panel：50mm Rock Wool, 0.6 Steel
• Basement：Complete Steel Assemble
• Air Intake：2 Sets 4kw Centrifugal Fan
• Air Exhaust：1 Set 5.5kw Centrifugal Fan
• Air Speed：0.3-0.35m,S
• Lighting System：32PCS Ceiling Lights, Osram Lights
• Heating System：Italy Diesel Burner
• Ventilation Type：Full Downdraft
• Filter Type：Dry
• Voltage：Customized According to Need
• Certificate：CE
• Transport Package：Export Container ,Pallet ,Disassembly with Carton
• Specification：CE, SGS, ISO
• Trademark：OEM,Captain
• Origin：Jiangsu, China.
• HS Code：8424899990
• Production Capacity：196sets,Month
• Package size per unit product：700.00cm * 535.00cm * 340.00cm
• Gross weight per unit product：3500.000kg

Booth SystemWall panel :Rock Wool material, tongue and groove interlock construction,
 hickness: 50mm, 0.6mm steel plateBasement and floor:complete steel assemble, 2 rows of grids,
 2 rows of indented plates, galvanized. 2pcs of galvanized ramps,
 loading capacity of galvanized grating is 650 kg/wheelLighting SystemCeiling light: 4Pcs X8units=32PcsX36W, OSRAM Lamp,
 with electronic ballastsGlassAll window and light cover by ovenproof toughened glassGenerator setting typeBack upper intake air, back upper exhaust air, aluminum alloy frame, coated steelVentilation SystemIntake fan:1Pc turbo fan, 7.5KW motor, Siemens Motor, C.E, direct drive,
 air capacity:25000m3/h Heating systemItalian RielloG20 diesel burner, 200000Kcal, 4~6kg/set; heating-up time: 4~6 min.(Gas burner as optional)SUS304 Stainless steel heat exchanger, anti-explosion hole for protection,
 highest temperature 80C, 1pc pneumatic damper from spraying to baking cycle.
 Reasonable structure, safe and reliable, big heat exchanging area, high heat
 utilization, more than 90% heat exchanging rateFilter systemPrefilter, high efficiency filter EU5 Fine Filters, 6pieces (ceiling filter),
 floor filter, exhaust active carbon filterControl systemSpraying, risen-temperature spraying, baking temperature, time setting,
 lighting switch, time accumulator, pressure gauge, emergency stop, failure alarm,
 limited-temperature device, most of electrical spare part is import, C.E standardTotal power12KW
Basic Draw----we can make draw according to your need and your installation place


Production----every step we do is according to our draw, we have all kinds of advanced machines to make production precise

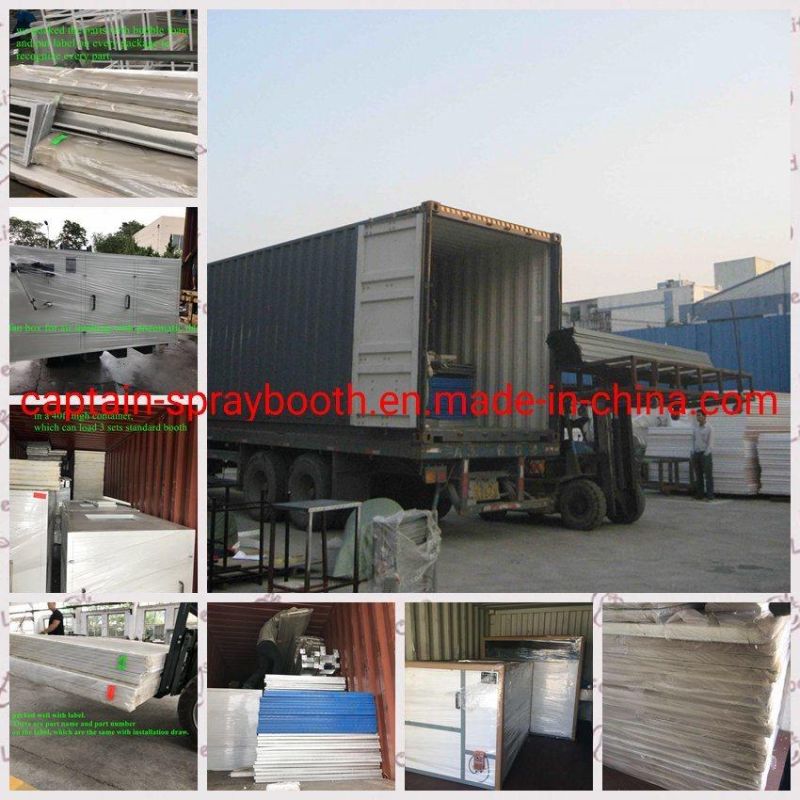

Package and Delivery----every package has a lable, we put part name and number on it. If 3 sets in one high container, we will have 3 different colors of lable for differentiate every ste.


Installation----We can give you installation draw to guide you assemble step by step, and we also have installation vedio on Youtube.

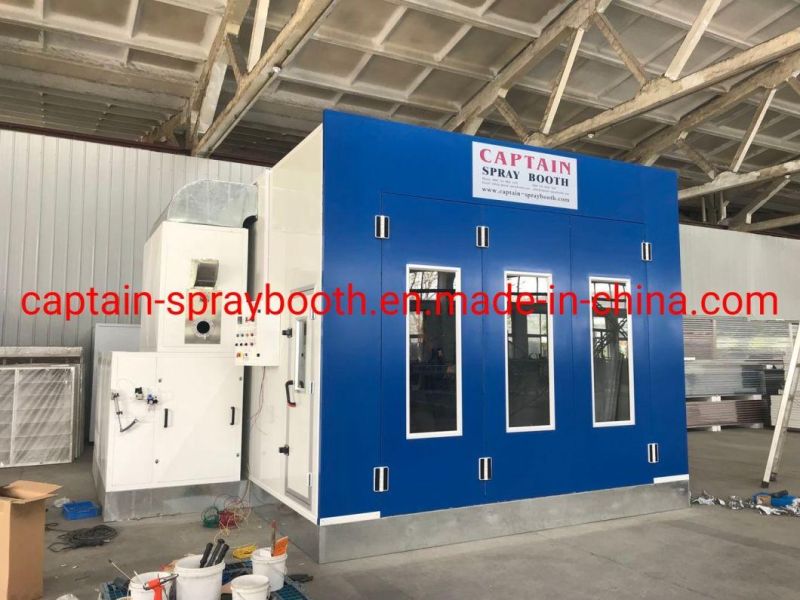

Real pictures of Installed Model----This is the model we installed ourself for testing, it works very well.

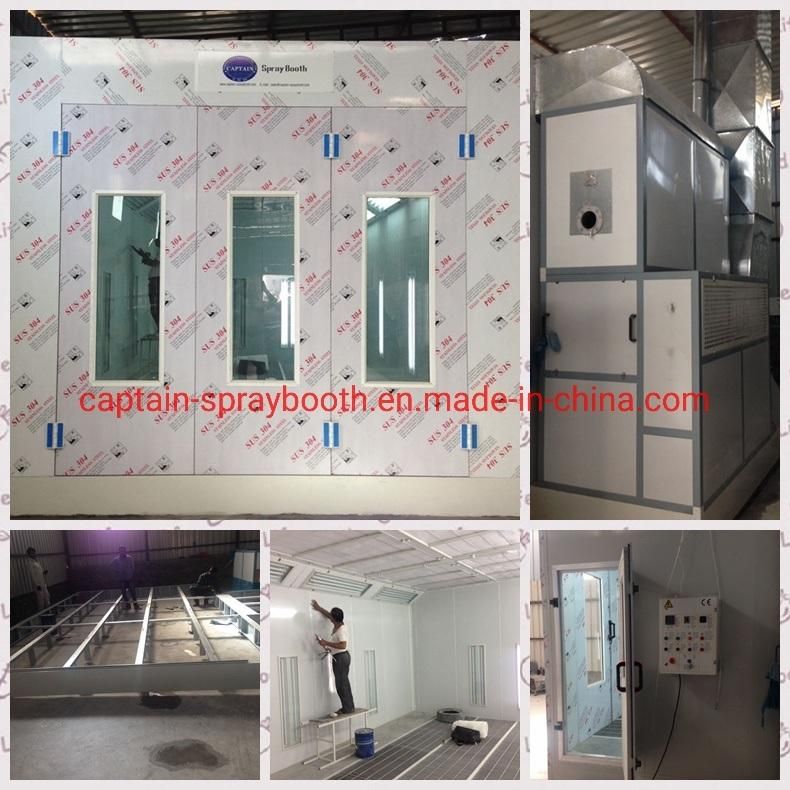

The installed models by our customers

Parts

High desensity wall panel, two men stand on it, it will not bend.


Stainless steel heat exchanger, we make ourself, our worker is professional, there is no leaking and strong enough.



Our control box is with SCHNEIDER parts


Different Colors for your choice

Workshop---- pictures for our workshop and stock, you  can see we have standard workshop and machine for producing, and enough stock for ensuring fast delivery



Factory View





Sincerely hope can get your inquiry and warmly welcome to our factory!
I'm just here waiting for you!

Introduction of our company

Captain Spray Booth(Qingdao Hua Yushun Commercial Co., Ltd)
Is a professional manufacturer of different kinds of spraybooth and we can customize according to your need and place. And also offering full garage equipments, such as following:

Car care equipment.

Car spray&baking room system

Bus spray&baking room system

Furnitue spray&baking room system

Industrial painting&baking room system

High temperature baking room system

Customized spray&bake booth and Offer car spray baking booth accossories


Services We Supply

Customized service

More Than 90% Of Our Spraying Booth Is Customized.

1. We can design the machines according your requirements. At the same time, our engineers will give you our professional suggestions.

2. We can give you free technical support and consultation such as design your factory, make the factory layout drawing and so on.

After-sales service

1. Our fast and professional after service engineer team can go to your factory and install the machine, give you the operating guidance, and train your employees until they can operate the machine well.

2. We often ask feedback and offer help to our customer whose machine have been used in their factory for some time.

3. We provide 2 years warranty.


Captain Advantages

*The same price higher quality, the same quality lower price! ! !
*2 years quality warranty! ! !
*Fast and stable supply capability! ! !
*Personalized design to meet customer various needs! ! !


Competitive Price and High Quality Spraying Booth with Perfect Service Is From Here.
