4000kg Autocare Scissor Elevator
Yantai Care Machinery Co., Ltd.- Type：Double Cylinder Hydraulic Lift
- Lifting Capacity：4T
- Driving Type：Hydraulic
- Certification：CE, ISO
- Shearing Lift Type：Big Shear Type
- Condition：New
Base Info
- Model NO.：AC-8800
- Brand：Autocare
- Design：Scissor
- Transport Package：Standard Exporting Package
- Specification：1.1 cubic meter
- Trademark：AUTOCARE
- Origin：China
- HS Code：8425429000
- Production Capacity：50000 Sets,Year
Description
Basic Info.
Model NO. AC-8800 Brand Autocare Design Scissor Transport Package Standard Exporting Package Specification 1.1 cubic meter Trademark AUTOCARE Origin China HS Code 8425429000 Production Capacity 50000 Sets/YearProduct Description
Product Description
| Lifting capacity | 8,800 lbs. / 4000 kg |
| Max. height without adapters | 47"/1,200mm |
| Max. height with adapters | 53.5"/1,360mm |
| Min. height | 4.7"/120mm |
| Overall length | 81.1" / 2,060 mm |
| Overall width | 41.3"/1,050mm |
| Lifting time | 35 sec |
| Motor | 110 - 220 VAC / 60 Hz / 1 Phase |
| Shipping weight | 1,102 lbs. / 500 kg |
| Shipping dimension | 81.1"x41.3"x20"/2,060mm x1,050mm x508mm |
Produc Features
Ideal for tire, wheel, brake related repairs and chassis overhaul.
Two hydraulic cylinders 8,800-lbs. lifting capacity

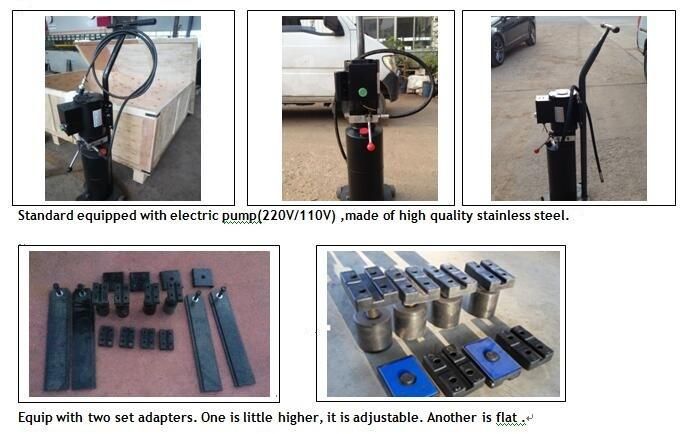

Electric / hydraulic power system
Heavy-duty steel channel frame.
Easily move and perform the maintenance job at different places.

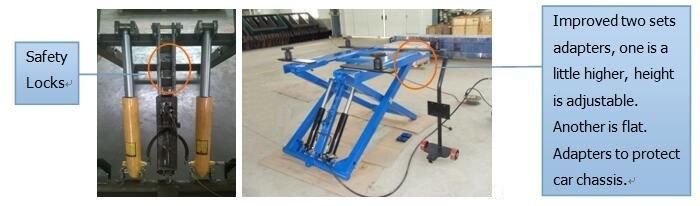

Adjustable arm assemblies, adapters' height adjustable.
Double safety lock bar with multiple lock positions.
Fast and efficient operation.
* CE certificated.
More product details:
Production Process
Certificate
Our Service
1. All the machines will be full tested before shipment;
2. The total machine guarantee is 12 moths;
3. 24 Hours technical support, email, telephone or video online;
4. User-friendly english manual for machine using and maintaining;
5. Several sets wearing parts will be free for you.
