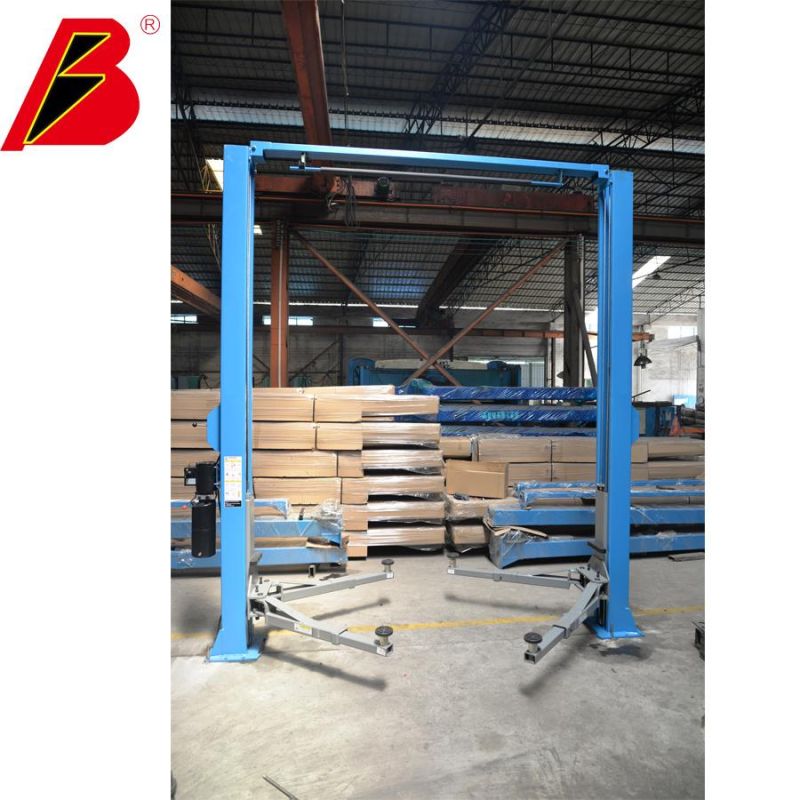

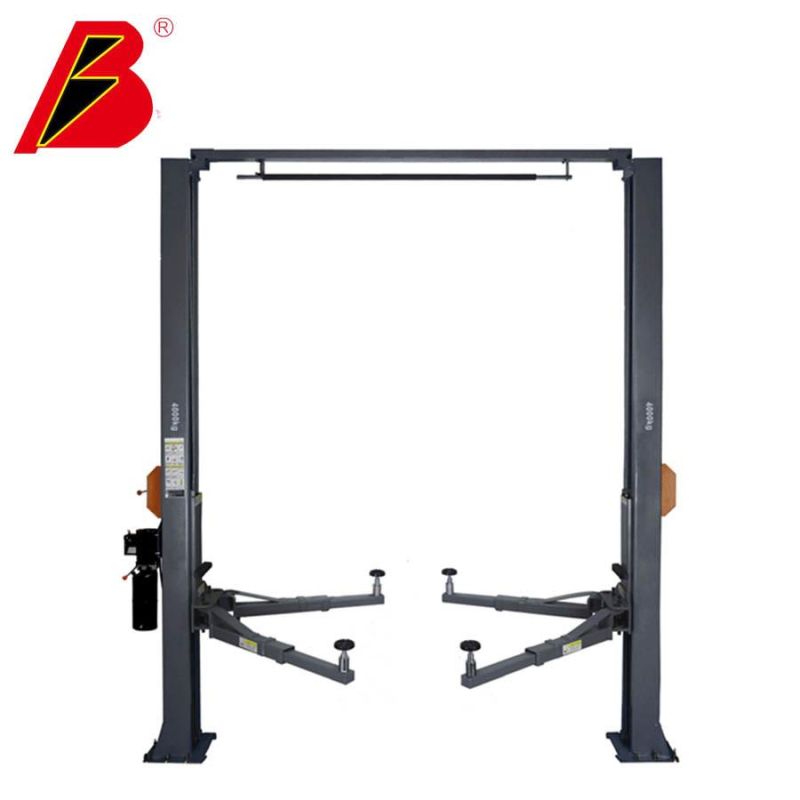

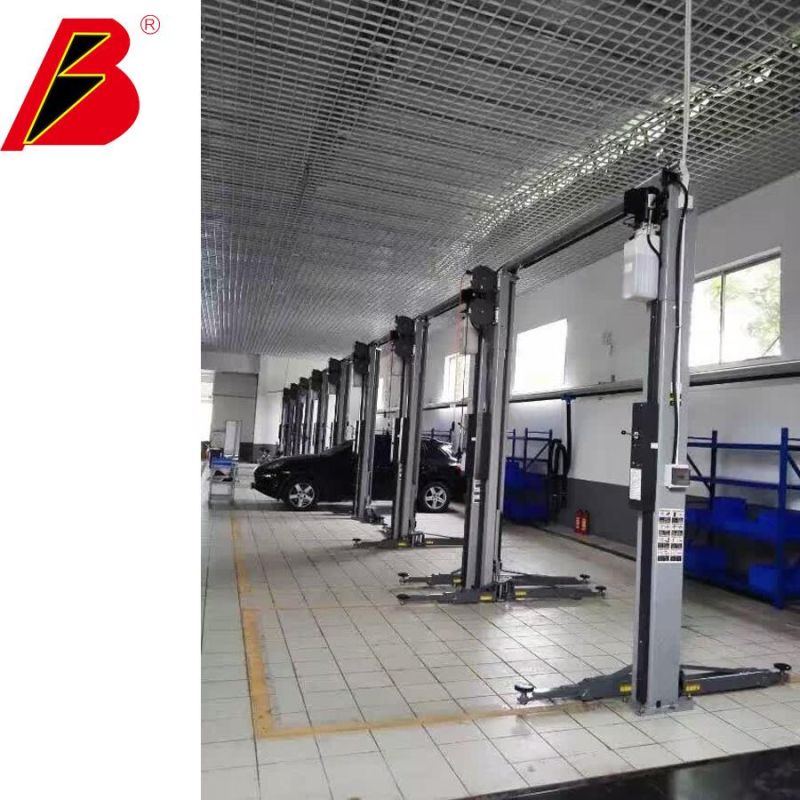

Two Post Car Lift 4 Tons High Quality
Guangdong Jingzhongjing Industrial Painting Equipments Co., Ltd.- After-sales Service：1 Year
- Warranty：1 Year
- Type：One Cylinder Hydraulic Lift
- Lifting Capacity：4T
- Driving Type：Hydraulic
- Certification：CE
Base Info
- Model NO.：SY-2-240L
- Driving Motor Number of Mechanical Lift：1
- Double Cylinder Lift Type：Thin Plate Type
- Shearing Lift Type：Ultrathin Type
- Condition：New
- Brand：Shinely
- Design：Two Post
- Color：as Require

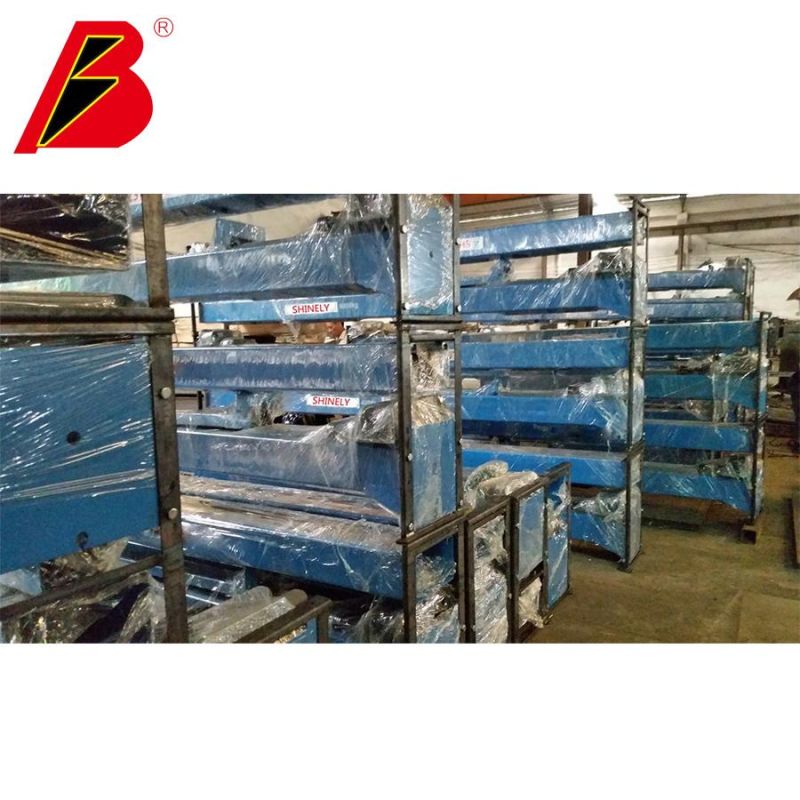

- Transport Package：Polyfoam and Carton
- Specification：CE ISO9001: 2000
- Trademark：Shinely
- Origin：Guangzhou, China
- HS Code：84198990
- Production Capacity：500sets,Year
Description
Basic Info.
Model NO. SY-2-240L Driving Motor Number of Mechanical Lift 1 Double Cylinder Lift Type Thin Plate Type Shearing Lift Type Ultrathin Type Condition New Brand Shinely Design Two Post Color as Require Transport Package Polyfoam and Carton Specification CE ISO9001: 2000 Trademark Shinely Origin Guangzhou, China HS Code 84198990 Production Capacity 500sets/YearProduct Description
Model SY-2-240L
Specification
1.Driven by double hydraulic cylinders.
2.Oil cylinder parts made by automatic high rotation speed CNC lathe ensure the excellent finish and concentration.
3. Automatic arm restraints, lifting arm automatically engages when lift is raised, and disengaged when lift lowered to the ground.
4.Single side safety control, arm locks with tooth type ratchet, multi-safety device, more reliable.
5. 3-stage Screw-up pads suitable for low chassis vehicle as well as SUVs, makes easy and quick service.
6.Door opening protection rubber as standard.
7.The overall design is suitable for tire tear open outfit, chassis maintenance, oil changes and maintenance, engineering vehicles such as regular vehicle maintenance; (suitable for conventional garage and service station to purchase)
8.Shot blasting and high temperature baking powder coated surface finish.
9. Pass CE 6000KG static test, 4.6Tdynamic test.
| Model | SY-2-240L | Optional | 3 stage lower telescopic arm |
| Lift Capacity | 4000kg or 8818.5lb | Power of motor | 2.2KW |
| Min height | 105/85mm or 3.4/2.8ft | Power supply | 220V/380V |
| Car max lifting height | 1870mm or 61.4ft | Height of the post | 3900 mm or 128ft |
| Rise time(appro.) | 50s | Inner Width between posts | 2860mm or 93.8ft |
| Drop time(appro.) | 30s | Total width | 3420mm or 112ft |
