• Model NO.：BY-5
• Heating Mode：Diesel
• Paint Mist Treatment：Dry-type
• Condition：New
• Types：Spray Booth
• Color：Orange
• Purification：≥95%
• Feature：Economic Applicable
• Air Capacity：25000m³,H
• Max Heating Productivity：260000kcal,H
• Safety：with Pressure Emergency Door
• Illumination：≥1500lux
• Max Baking Temperature：80°
• Warranty：12 Month
• Transport Package：Spray Booth Standard Export Package
• Specification：CE
• Trademark：Baoyues
• Origin：Guangzhou, China
• HS Code：8419899090
• Production Capacity：120 Set,Month

Intake and Exhaust
system

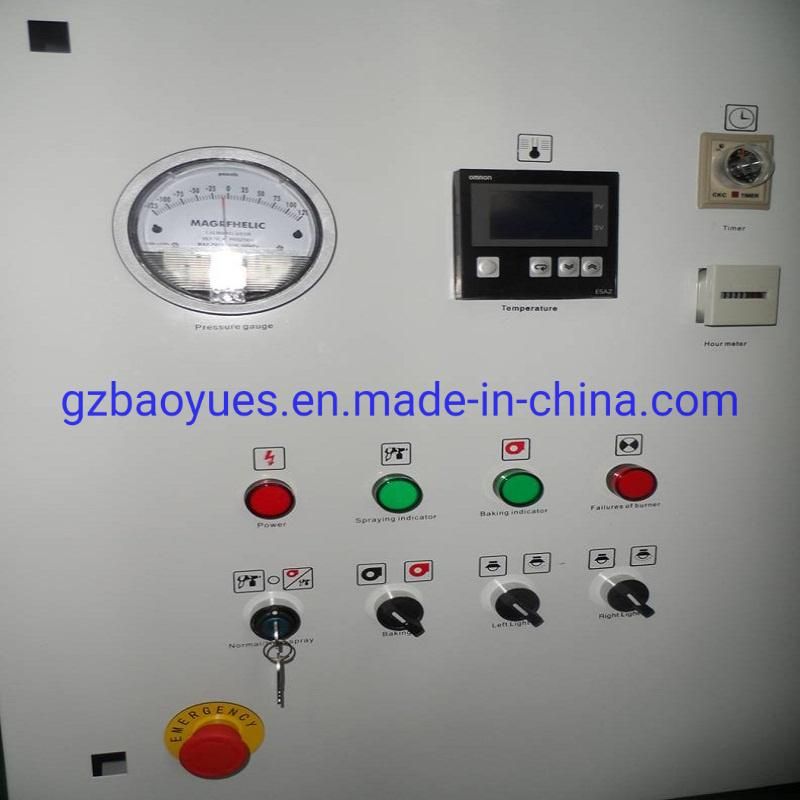

 Inlet :1×7.5KW turbo fan , air capacity for each fan : 25000m3/h.Outlet:  1×7.5KW turbo fan,  air capacity for each fan : 25000m3/h . Manual damper, 5m ducts, 1 pcs 900 bend, 1 pcs 300 bend, 1 pcs intake hoop.Heating systemRIELLO RG5S diesel burner, double layer stainless steel heat exchanger, pneumatic damper actuates from spraying to baking cycle. Max.  heating productivity: 260000kcal/h , max temperature: 80°C, 4pcs chimney, 1 pcs bend.Purification systemPre-filter (pocket type), ceiling filter, fibreglass filter, activated carbon filter (pocket type)RoofGalvanized steelControl systemSpraying, heat spraying, baking, time setting, lighting switch, failure indicator, thermostat, power supply switch, emergency stop, hour meter, temperature limit controller, pressure gauge, all motors is normal start.Total power18.5KW  (Power supply 1×220V, 3×380V, 50HZ)

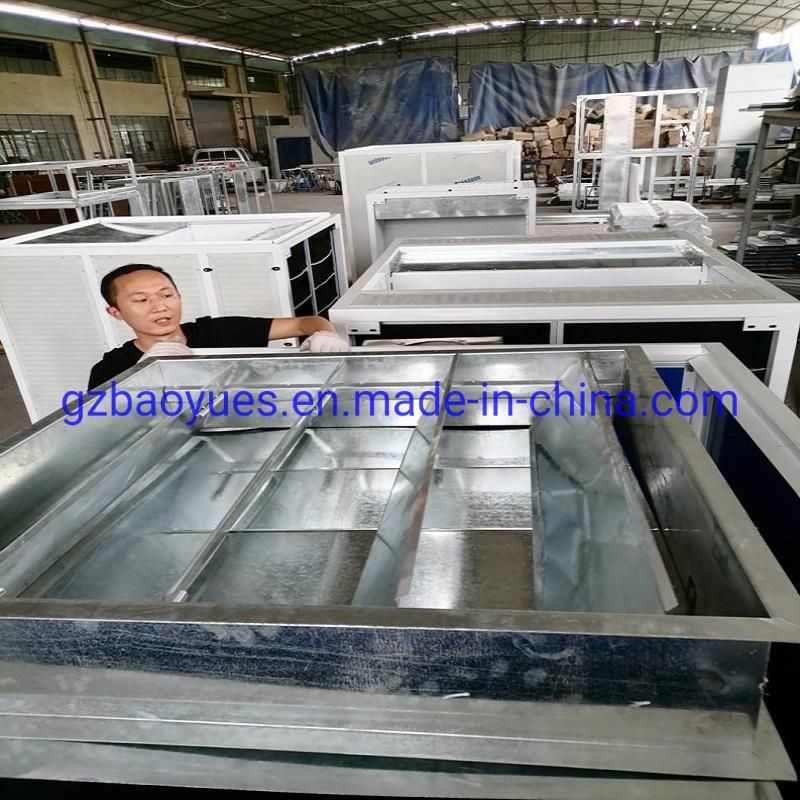

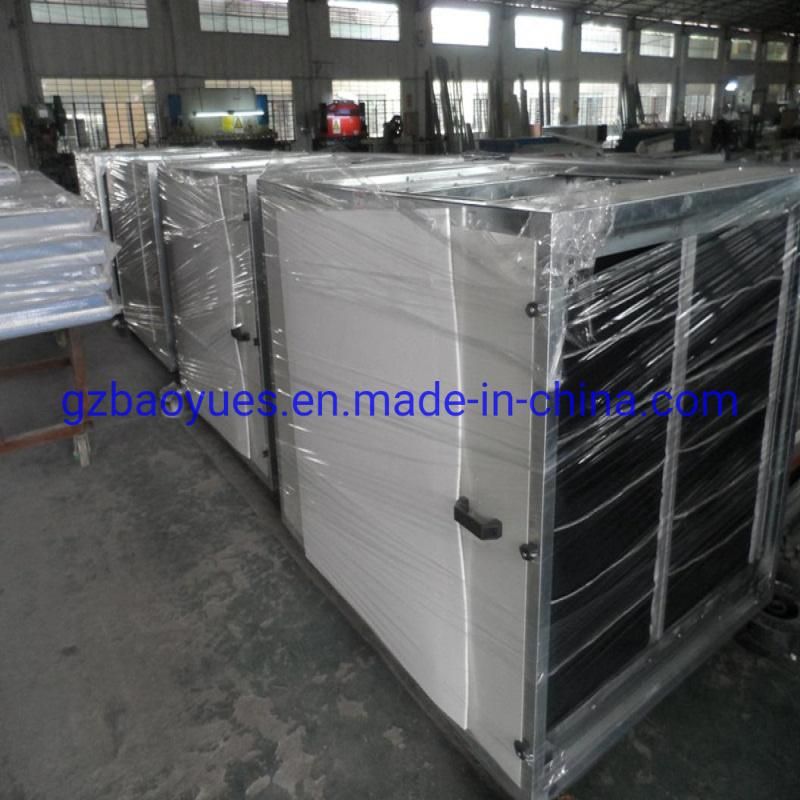

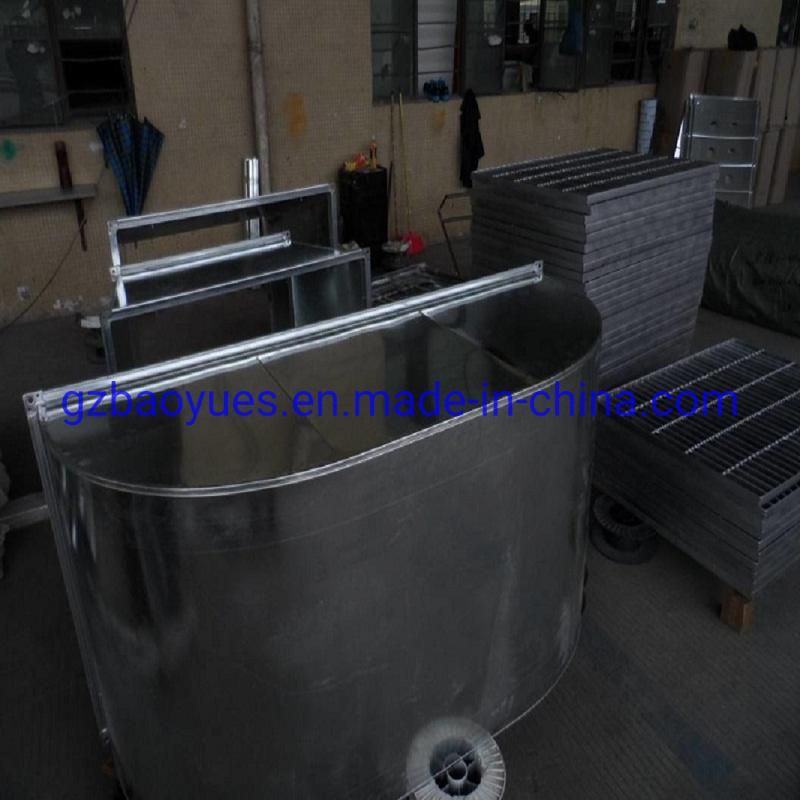

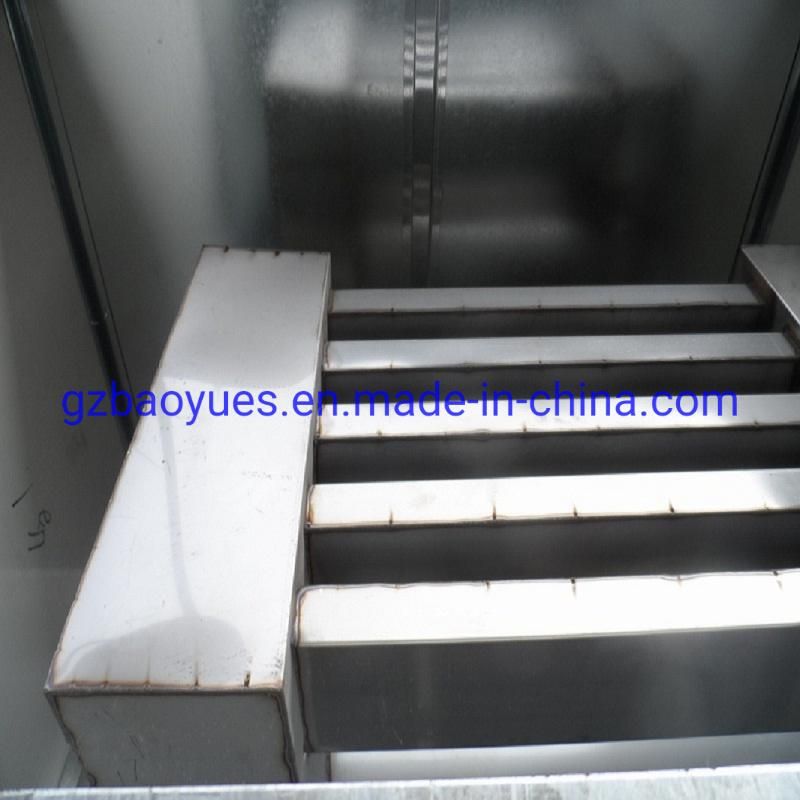

Parts details:


Feedback from clients:
