• Model NO.：BY-30
• Brand：Baoyues
• Coating：Powder Coating
• Airflow Direction：Fully Undershot-type
• Heating Mode：Diesel
• Paint Mist Treatment：Dry-type
• Condition：New
• Lights：LED
• Transport Package：Sea Transport Packing 1 Set,20gp
• Specification：CE, CCS, TUV, SGS
• Trademark：Baoyues
• Origin：China
• HS Code：84198990
• Production Capacity：90units,Month
• Package size per unit product：630.00cm * 345.00cm * 265.00cm
• Gross weight per unit product：3000.000kg

Basic Info.

Model NO. BY-30 Brand Baoyues Coating Powder Coating Airflow Direction Fully Undershot-type Heating Mode Diesel Paint Mist Treatment Dry-type Condition New Lights LED Transport Package Sea Transport Packing 1 Set/20gp Specification CE, CCS, TUV, SGS Trademark Baoyues Origin China HS Code 84198990 Production Capacity 90units/Month

Packaging & Delivery

Package size per unit product 630.00cm * 345.00cm * 265.00cm Gross weight per unit product 3000.000kg

Product Description

The standard sanding room for car polished, sanded, base coat, top coat and painting, with light system, intake and exhaust system, control system, purification system, also can add the heating system...



Outside Dimension	7550× 3550× 3100mm(L× W× H)
Inside Dimension	6300× 3450× 2650mm(L× W× H)
Plenum Dimension	6300× 3450× 450mm(L× W× H)
Basement	300mm galvanized steel basement, full grilles made by flat bar and  twisted steel then galvanized.   3 ramps, external setting, 2000× 750mm(L× W), surface is painted.
Room Body	Back side with 50mm EPS wall panels, the other 3 sides with PVC curtains;
Light System	Ceiling lights 8units× 4pcs=32pcs 36W, with electronic ballasts, 5.0mm clear tempered glass;
Generator cabinet	Exhaust air from rear side; square steel frame, white coated steel cover
Intake and Exhaust System	1 unit 5.5KW double intake centrifugal fan, model YDW-4.5S, air capacity is 15500 m 3 /h, with  electric damper for exhaust air
Heating System	Optional
Purification System	Pre-filter, high efficiency filter, exhaust fiberglass filter.
Roof	Galvanized steel plates
Control System	Fan operation switch, lighting switch, emergency stop
Installation	Suspending steel hook from roof of building or steel column supporting

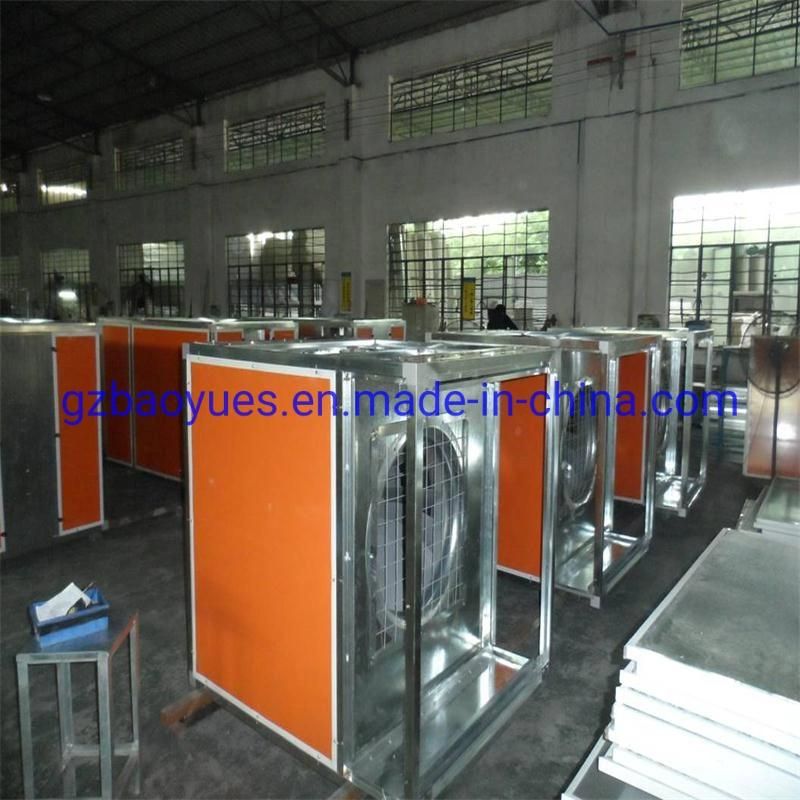

Parts details:





What customer saying:

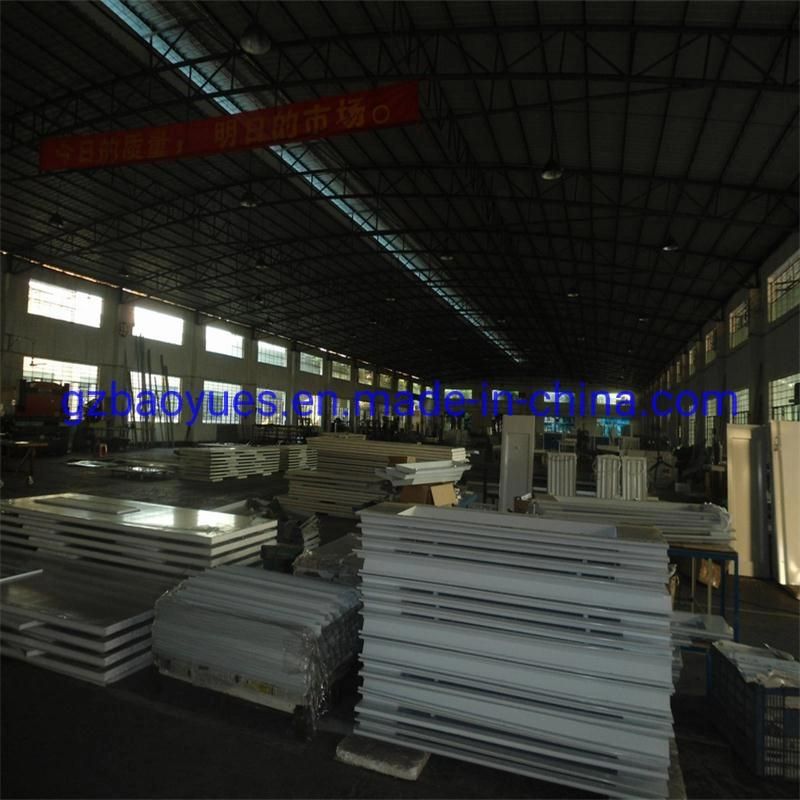

Factory show:

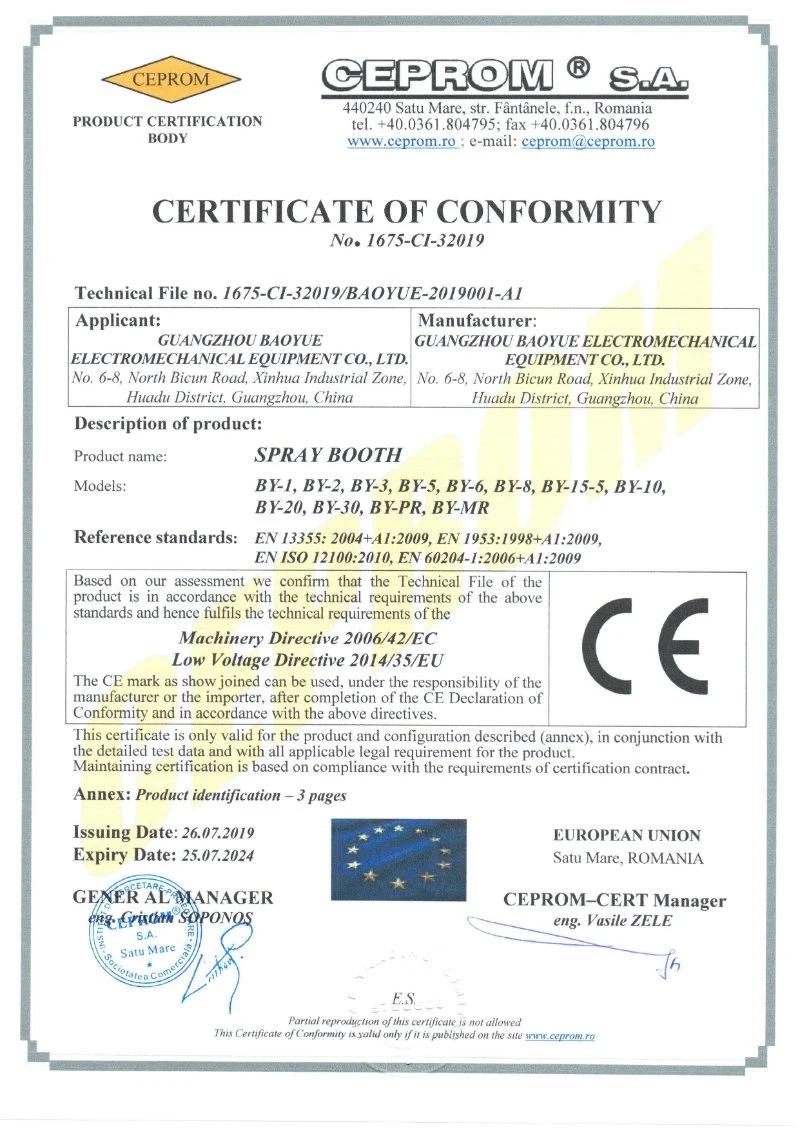

Certificate:
