• Model NO.：BY-X
• Coating：Painting
• Airflow Direction：Fully Undershot-type
• Heating Mode：Diesel
• Paint Mist Treatment：Dry-type
• Condition：New
• Product Name：Water-Borne Paint Nozzle
• Inside Dimension：6900*3900*2650 mm
• Function：Baking and Painting
• Design：European Design
• Certificate：CE, SGS, TUV, CCS
• Transport Package：Export Professional Package
• Specification：CE, SGS, TUV
• Trademark：Baoyues
• Origin：Guangdong, China
• HS Code：84198990
• Production Capacity：90 Sets,Month

Basic Info.

Model NO. BY-X Coating Painting Airflow Direction Fully Undershot-type Heating Mode Diesel Paint Mist Treatment Dry-type Condition New Product Name Water-Borne Paint Nozzle Inside Dimension 6900*3900*2650 mm Function Baking and Painting Design European Design Certificate CE, SGS, TUV, CCS Transport Package Export Professional Package Specification CE, SGS, TUV Trademark Baoyues Origin Guangdong, China HS Code 84198990 Production Capacity 90 Sets/Month

Product Description

water-borne paint nozzle

(1) Unique European designs and competitive prices;

(2) High quality with CE,TUV certificate;

(3) High efficency to save energy and protect enviroment;

(4) Low noise and low pollution;

(5) With water-borne paint system.


Detail show:

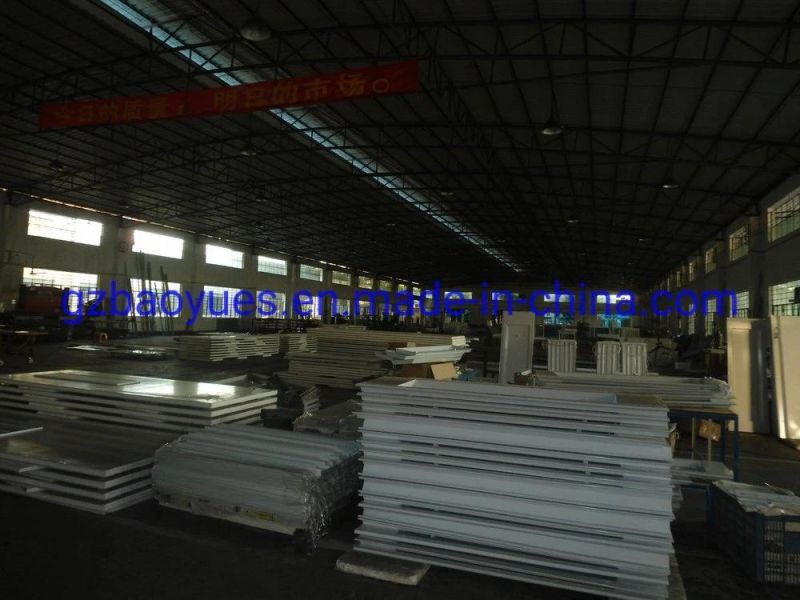

Manufacturing Process:
water-borne paint nozzle water-borne paint nozzle


Certificate:
water-borne paint nozzle water-borne paint nozzle

Inside dimension	6900×3900×2700 mm(L×W×H)
Outside dimension	7000×5600×3500 mm(L×W×H)
Front door	Folding door, 3 folds, 3000×2600 mm(W×H), without frame cover, with safety square glass windows,  color : blue
Emergency door	1 unit, 800×2000mm(W×H), with pressure interlock clour: white
Basement	Galvanized steel assemble, 300mm high, quadrate steel support with adjustable bolt, full grilles made by flat bar and twisted steel,  galvanized. 3 ramps , 900×2000mm/pc.
Wall Panels	Thickness:50mm, width:1150mm, tongue and groove structure, 0.476mm color steel with PU insulation inside, color: white.
Light	Ceiling lights:8Units×2Pcs=16Pcs×58W,Side lights: 10Units×4Pcs=40Pcs×58W,  with electronic ballasts, tri-phosphor Philips light tube, Illuminate: ≥1000LUX
Generator cabinet	Intake from side upper, exhaust from back upper, aluminum alloy frame;  white coated steel covered, filled with heat preservation material inside.
Intake and Exhaust system	Inlet: 2×4KW double-intake centrifugal fans, belt drive, model TAE-400H, total air capacity: 25000m3/h.
	Outlet: 1×7.5KW double-intake centrifugal fan, belt drive, model TAE-560H,  air capacity: 24000m3/h.
Heating System	RIELLO RG5S diesel burner, stainless steel heat exchanger with high efficiency ,Pneumatic damper actuates from spraying to baking cycle.  Max. heating productivity: 260000Kcal/h, Max temperature: 80 degree.
Purification System	Pre-filter, ceiling filter, fiberglass filter, cylindrical activated carbon filter

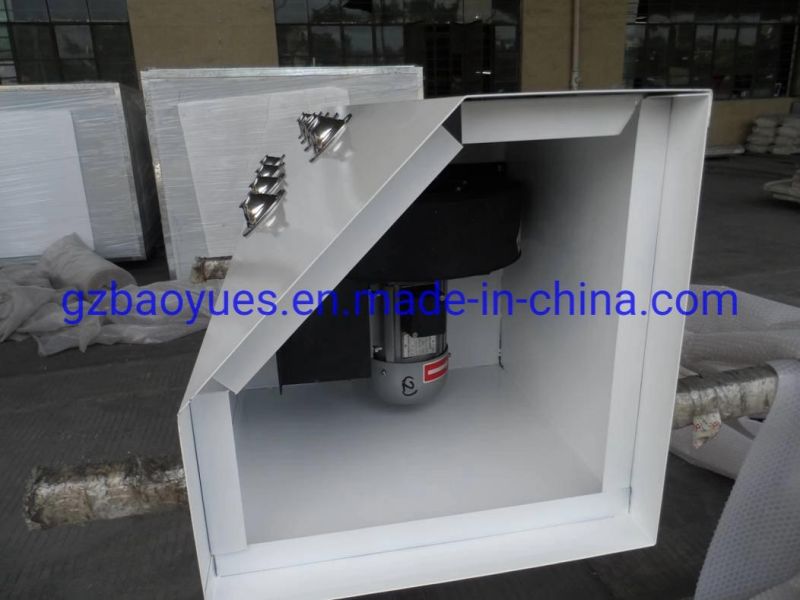

Water-borne Paint System	With water-borne paint system on the both sides of ceiling, stainless steel nozzle, 4 units 0.77KW centrifugal fan, total air quantity: 13400 m3/h
Roof	Galvanized steel
Control System	Spraying, heat spraying, time setting, lighting switch,power supply switch, failure indicator, thermostat, , water-borne paint system switch, emergency stop, all motors are normal start.
Total Power	22.5KW

Parts details:

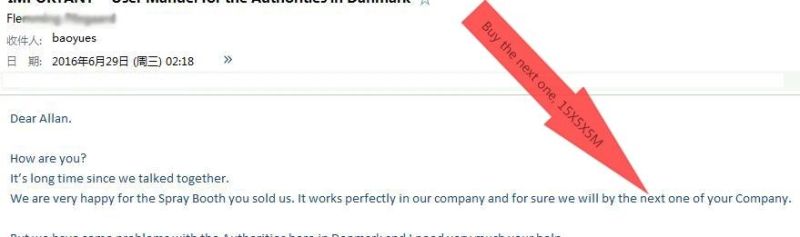

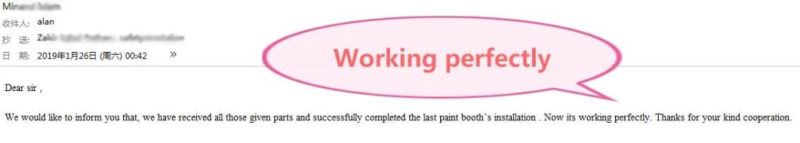

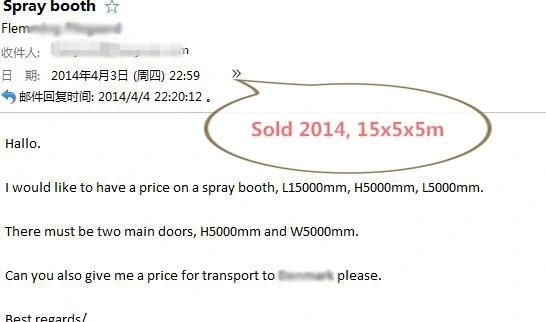

What customers saying:
