• Model NO.：non-standard BY-2
• Certification：CCC, CE
• Substrate：Steel
• Brand：Baoyue
• Coating：Painting
• Airflow Direction：Cross-flow Type
• Heating Mode：Infrared Ray
• Paint Mist Treatment：Dry-type
• Condition：New
• Brand Name：Baoyues
• Color：White
• Purification：≥95%
• Noise dB (a)：≤75
• Free Air Speed：≥0.24m,S
• Frequency Air Change：294 Time ,H
• Safety：with Pressure Emergency Door
• Heating System：Short Wave Infrared Lamp Heating
• Usage：for Car Spraying and Drying
• Transport Package：Standard Export Package
• Specification：CE
• Trademark：Bauyues
• Origin：Guangdong, China
• HS Code：8419899090
• Production Capacity：50set,Month
• Package size per unit product：690.00cm * 390.00cm * 265.00cm
• Gross weight per unit product：3000.000kg

Intake and Exhaust  system
Inlet: 2×3KW double-intake centrifugal fans, model YDW4.5M1, air capacity for each fan: 10500m3/h.
Outlet: optional.
Heating system

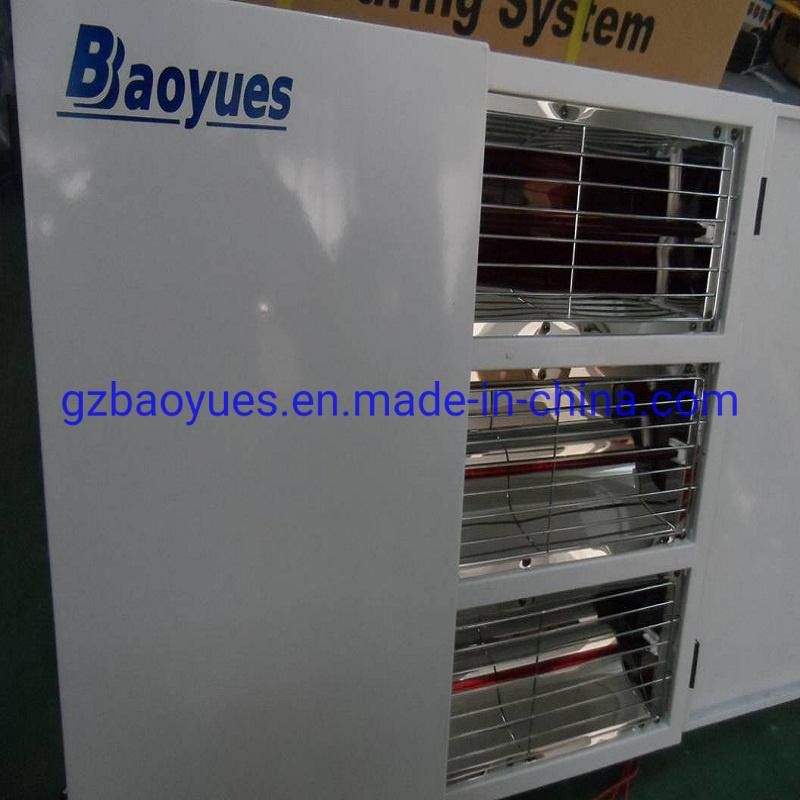

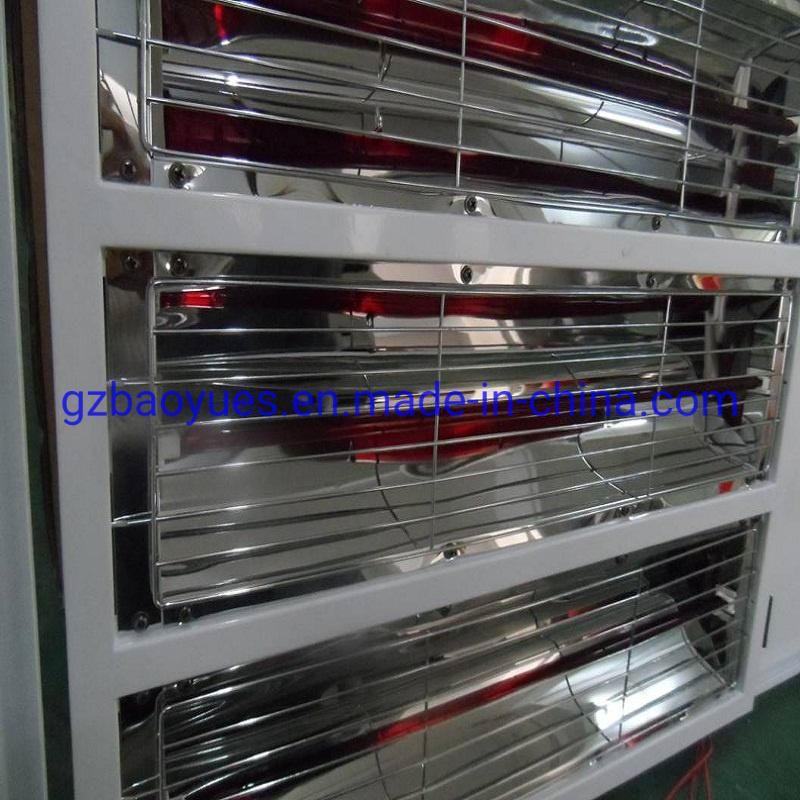

With 10 units short wave infrared lamp heating, 3pcs/unit, 1KW/pcs, total power: 30KW,
Max temperature: 80
Purification system
Pre-filter, ceiling filter, exhaust fibreglass filter Roof Galvanized steel

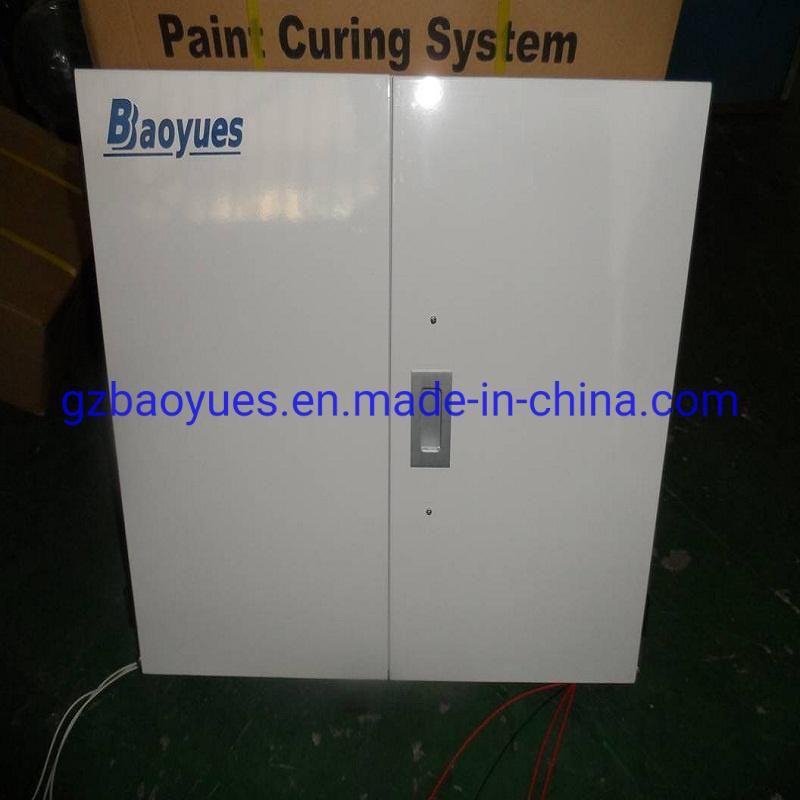

Control system
Spraying, baking, time setting, lighting switch, thermostat, power supply switch, emergency stop,
all motors are normal start.
Total Power40KW
Parts details:

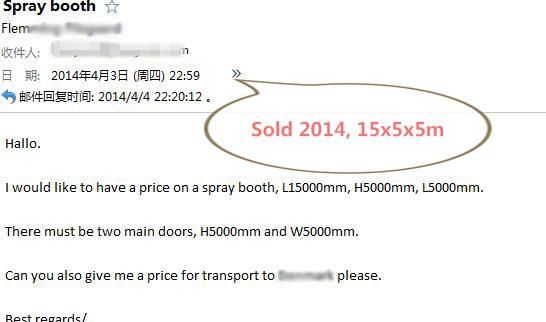

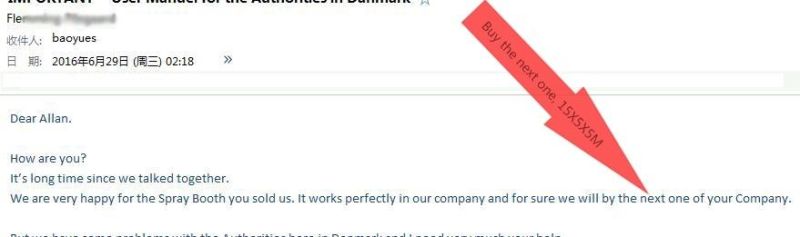

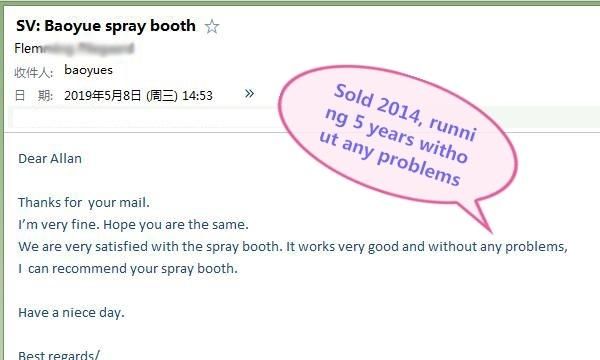

Feedback from clients:
