• Model NO.：BY-6
• Brand：Baoyues
• Airflow Direction：Fully Undershot-type
• Heating Mode：Diesel
• Paint Mist Treatment：Dry-type
• Condition：New
• Product Name：New !!!Water Based Paint Booth
• Usage：for Car(or Furniture) Painting, Baking
• Specifications：Customise Acceptable
• Certificate：CE, CCS, TUV, SGS
• Service：Professional Team for Installation Abroad
• Warranty：1 Year
• Transport Package：Sea Transport Packing 1 Set,20gp
• Specification：CE, CCS, TUV, SGS
• Trademark：Baoyues
• Origin：Guangzhou, China
• HS Code：84198990
• Production Capacity：80 Pieces,Month
• Package size per unit product：690.00cm * 390.00cm * 265.00cm
• Gross weight per unit product：3500.000kg

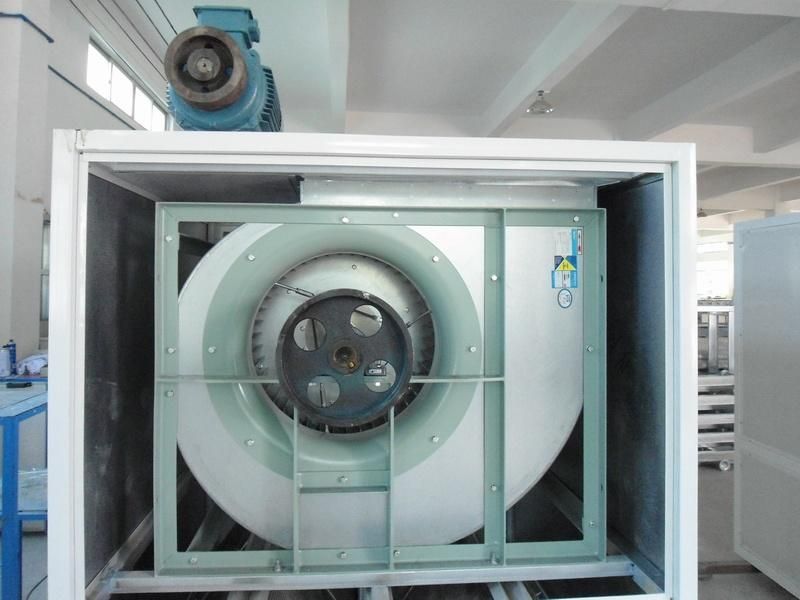

Detailed SpecificationInside dimension6900×3900×2650 mm (L×W×H)Outside dimension7000×5600×3500mm(L×W×H)Front doorFolding door, 3 folds, 3000×2600 mm (W×H), without frame, aluminium alloy window frame, orange colour, door head and two batten on both sides white colour.Emergency door1 units, 800×2000mm (W×H), colour: white.BasementGalvanized steel assemble, 300mm high, quadrate steel support, adjustable type, full grilles made by flat bar and twisted steel, galvanized, 3 ramps, 900×2000mm/pc, silver colour.Wall panelThickness: 50mm, width:1150mm, tongue and groove structure, 0.476mm colour steel with PU inside, colour: white.LightCeiling Lights: 8Units×4Pcs=32Pcs×58W, side lights: 8Units×4Pcs=32Pcs×36W, with electronic ballasts, three primary colours Phillip tube, lighting boxes are powered coated, illumination ≥1500LUXGenerator cabinetIntake from side upper, exhaust from rear upper, aluminum alloy steel frame; orange machine-made panel covered, filled with heat preservation material inside.Intake and Exhaust systemInlet: 2×4KW centrifugal fan, belt drive, model: TAE-400H, total air capacity: 25000m 3 /h, air speed ≥0.24m/s.Outlet: 1×7.5KW centrifugal fan, belt drive, model: TAE-560H, total air capacity: 24000m3/h. Manual damper, 4m ducts, 1 pcs 90 0 bend, 1 pcs 30 0 bend.Heating systemItaly RIELLO RG5S diesel burner, double layer stainless steel heat exchanger, pneumatic damper actuates from spraying to baking cycle. Max. heating productivity: 260000kcal/h, max temperature: 80 degree.Purification systemPre-filter, ceiling filter, fibreglass filter, cylinder activated carbon filter.Water base paint systemWater base paint system on the roof, stainless steel nozzle, 3×0.75KW motor, air capacity: 4800 m3/h.Roof50mm PU panel.Control systemSpraying, heat spraying, baking, time setting, lighting switch, failure indicator, thermostat, pressure gauge, power supply switch, water base paint switch, emergency stop, all motors is normal start.Total power22KW (Power supply  1×220V, 3×380V, 50HZ)

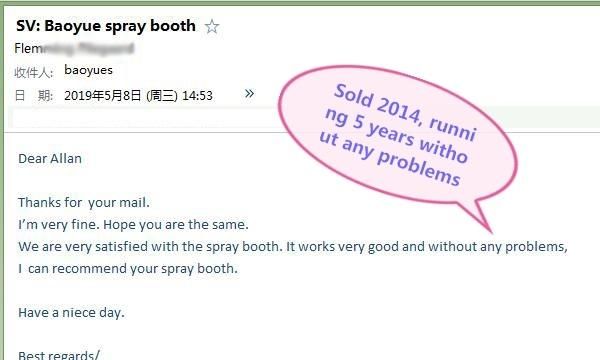

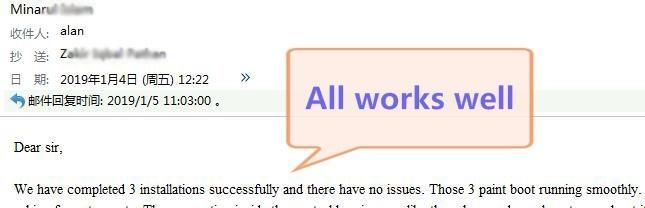

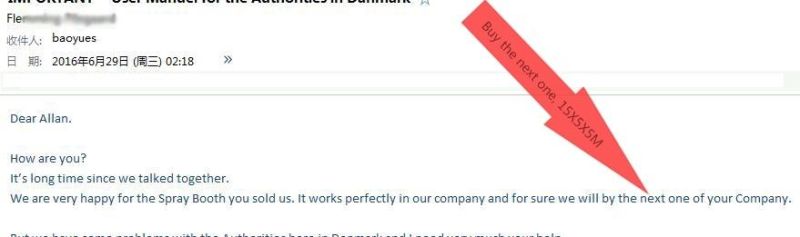

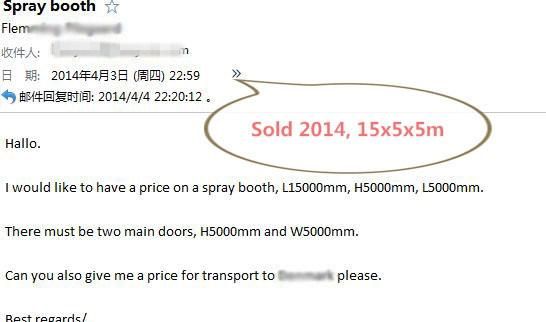

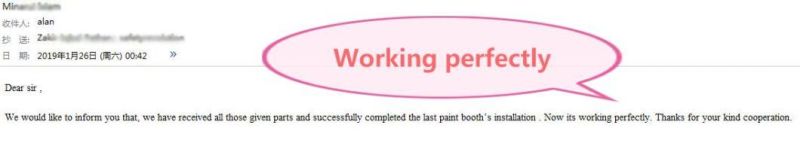

What Customer saying:
