• Model NO.：non-standard
• Coating：Painting
• Airflow Direction：Cross-flow Type
• Heating Mode：Diesel
• Paint Mist Treatment：Dry-type
• Condition：New
• Brand Name：Baoyues
• Color：Optional
• Voltage：220V,380V,50Hz
• Purification：≥95%
• Noise Db (a)：≤70
• Certificate：CE,CCS
• Safety：with Auto Pressure Emergency Door
• Air Capacity：25000m3,H
• Free Air Speed：≥0.3m,S
• Wararanty：12 Month
• Transport Package：Standard Export Package
• Specification：CE
• Trademark：Bauyues
• Origin：Guangdong, China
• HS Code：8419899090
• Production Capacity：50set,Month


Intake and Exhaust   systemInlet: 2×3 KW double-intake centrifugal  fans, model  YDW4.5M1,  air capacity for each fan:  10500m 3 /h.Outlet:  1× 4KW double-intake centrifugal  fan, model  YDW4.5L1 , air capacity:  12500m 3 /h .Heating systemRIELLO G20 diesel burner, stainless steel heat exchanger, electric damper actuates from spraying to baking cycle. Max. heating productivity: 2000 0 0kcal/h,  Max temperature: 80 °C .Purification systemPre-filter, ceiling filter, fibreglass filter, activated carbon filterRoofGalvanized steel.Control systemSpraying, heat spraying, baking, time setting, lighting switch, failure indicator, thermostat, power supply switch, emergency stop,  temperature limit controller, exhaust with manual damper,  all motors are normal start.Total Power12KW

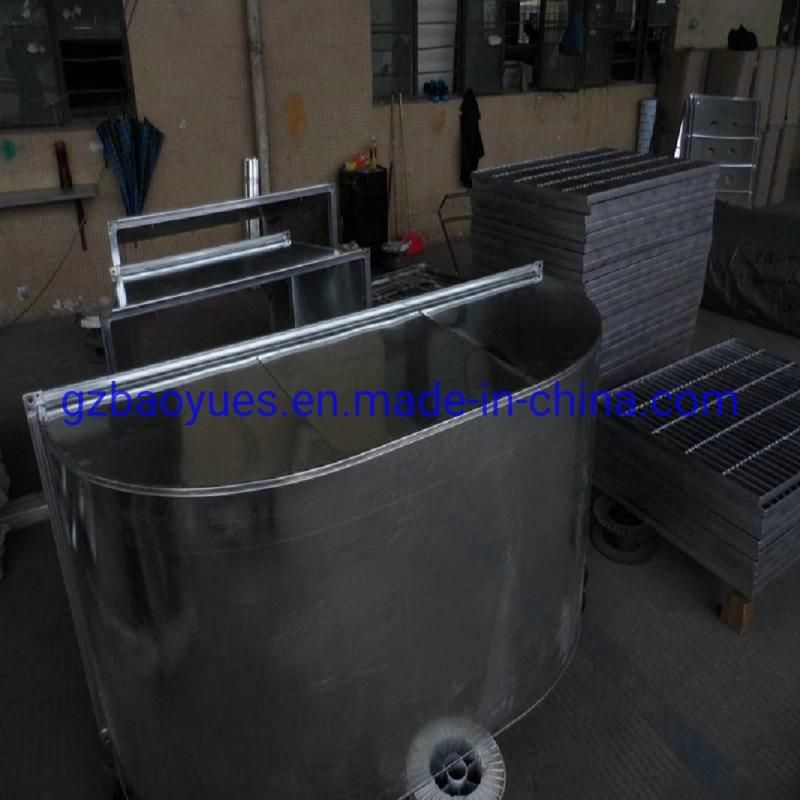

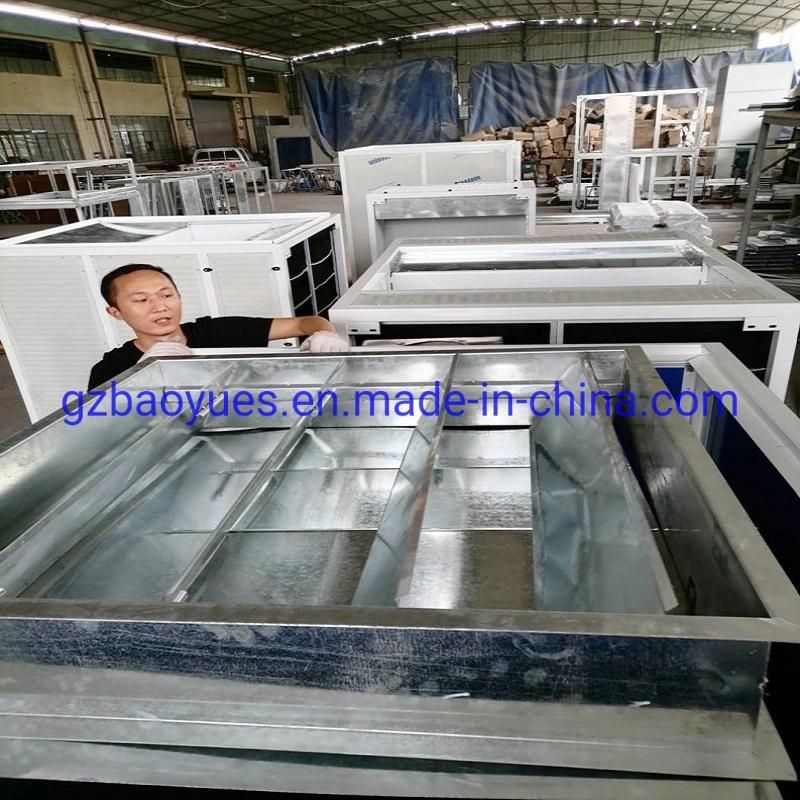

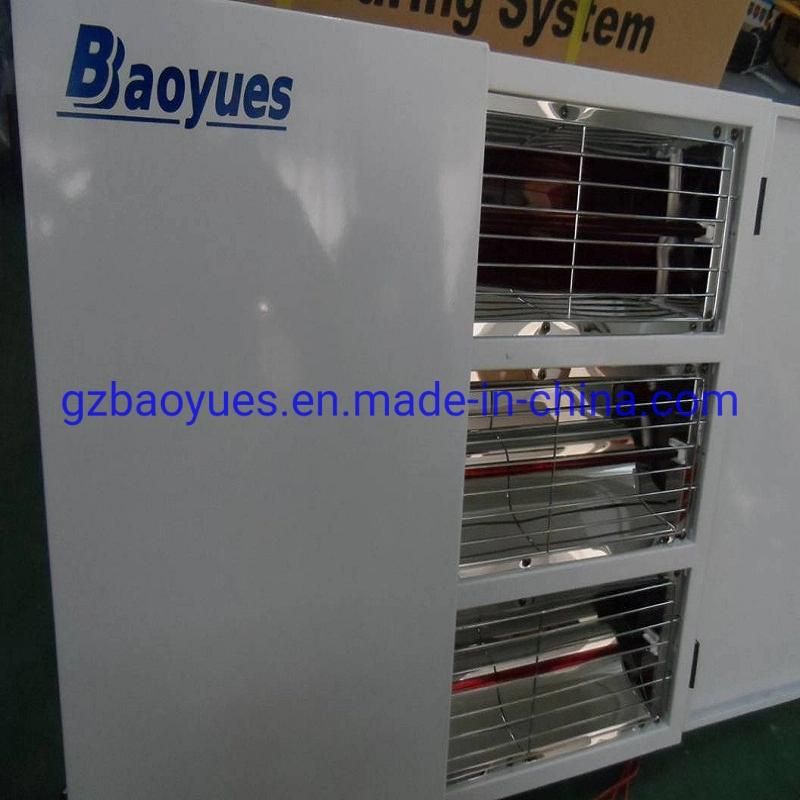

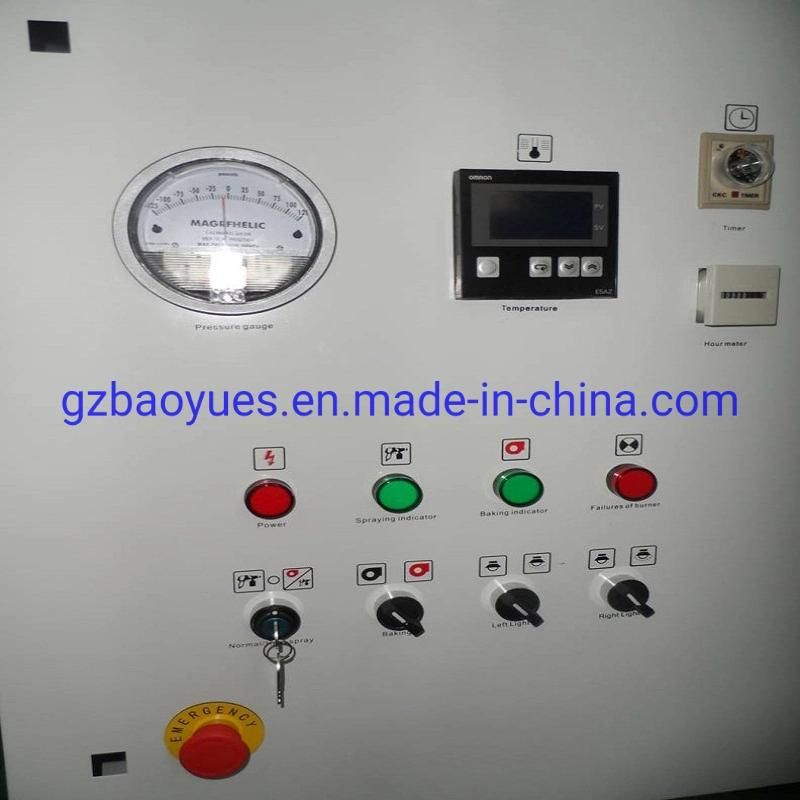

Parts detsils:

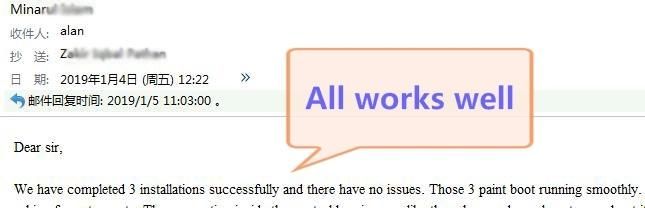

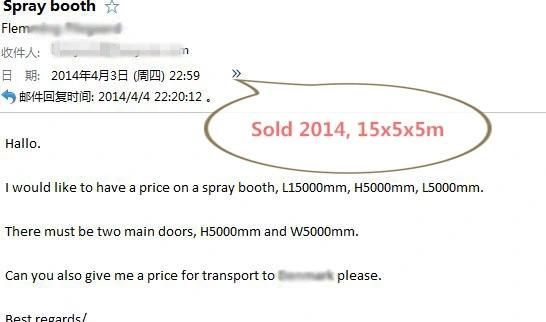

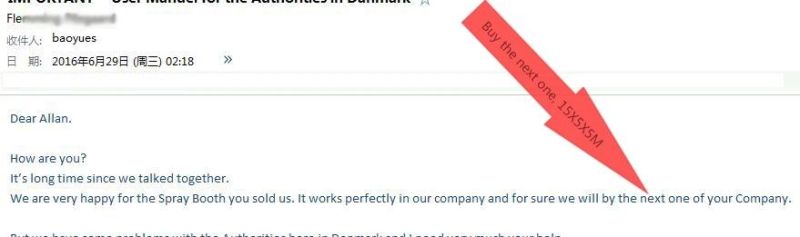

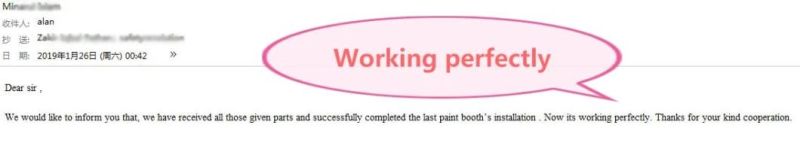

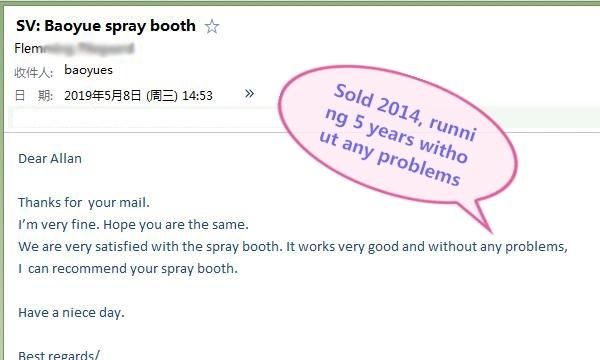

What customers saying:

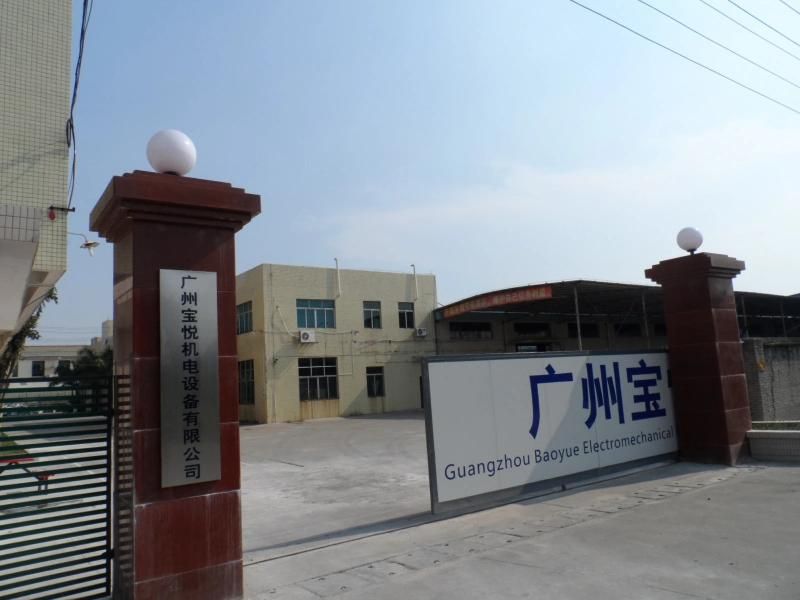

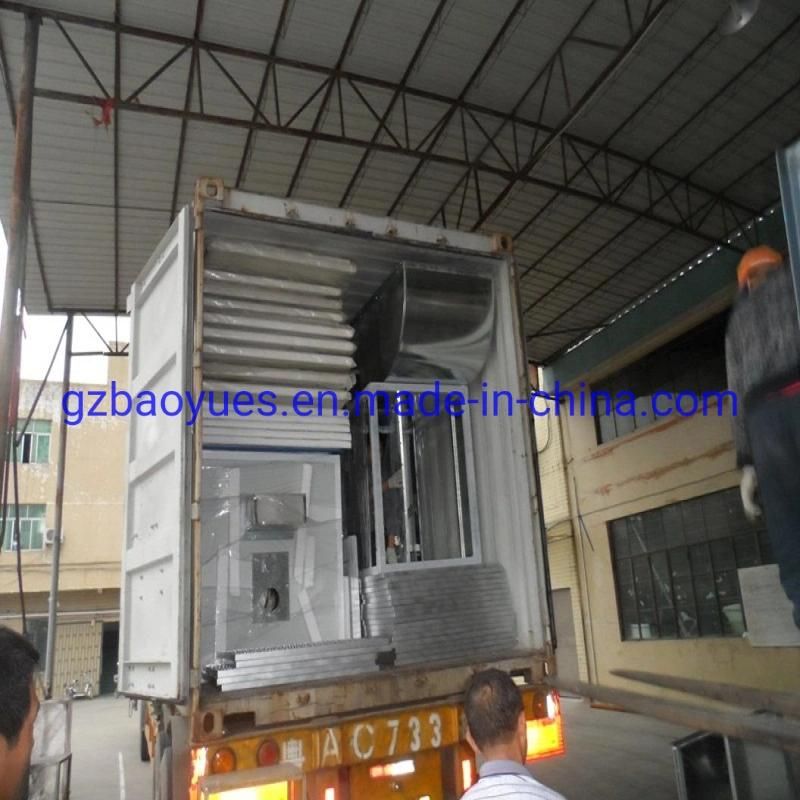

Factory show:
