• Model NO.：BY-2
• Brand：Baoyues
• Coating：Painting
• Airflow Direction：Fully Undershot-type
• Heating Mode：Diesel
• Paint Mist Treatment：Dry-type
• Condition：New
• Transport Package：Standard Packing
• Specification：6.9m
• Trademark：BAOYUES
• Origin：China
• HS Code：84198990
• Production Capacity：90unit,Month
• Package size per unit product：690.00cm * 390.00cm * 265.00cm
• Gross weight per unit product：3500.000kg

Basic Info.

Model NO. BY-2 Brand Baoyues Coating Painting Airflow Direction Fully Undershot-type Heating Mode Diesel Paint Mist Treatment Dry-type Condition New Transport Package Standard Packing Specification 6.9m Trademark BAOYUES Origin China HS Code 84198990 Production Capacity 90unit/Month

Packaging & Delivery

Package size per unit product 690.00cm * 390.00cm * 265.00cm Gross weight per unit product 3500.000kg

Product Description

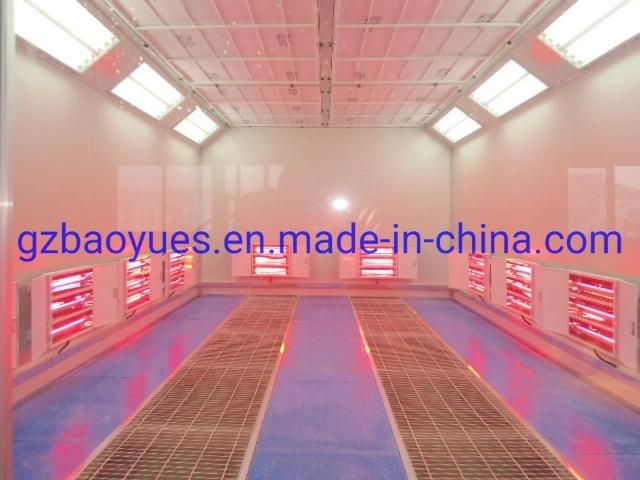

Infrared lamp spray booth
1, CE approved
2, Spray booth professional manufacturer
3, Excellent painting and baking effect
4, Infrared lamp heating
5, Timely delivery.

Inside dimension	6900× 3900× 2650 mm (L× W× H )
Outside dimension	7000× 5350× 3400 mm (L× W× H )
Basement	Galvanized steel assemble, 300mm high, quadrate steel support, full grilles made by flat bar and  twisted steel, galvanized, with full ramps

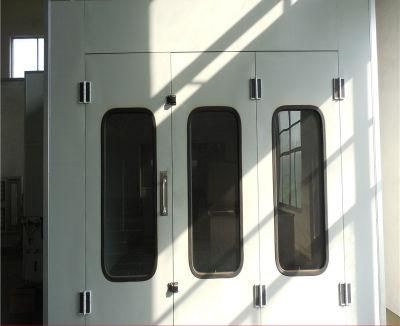

Front door	Folding door, 3 folds, 3000× 2600 mm (W× H), made by bending steel, without cover frame, , colour: blue.
Emergency door	1 unit, 650× 1800mm (W× H  ), colour: white.
Wall board	Thickness: 50mm, width: 1150mm, tongue and groove structure, 0.376mm colour steel with 50mm thick polystyrene (EPS) insulation inside, colour: white.

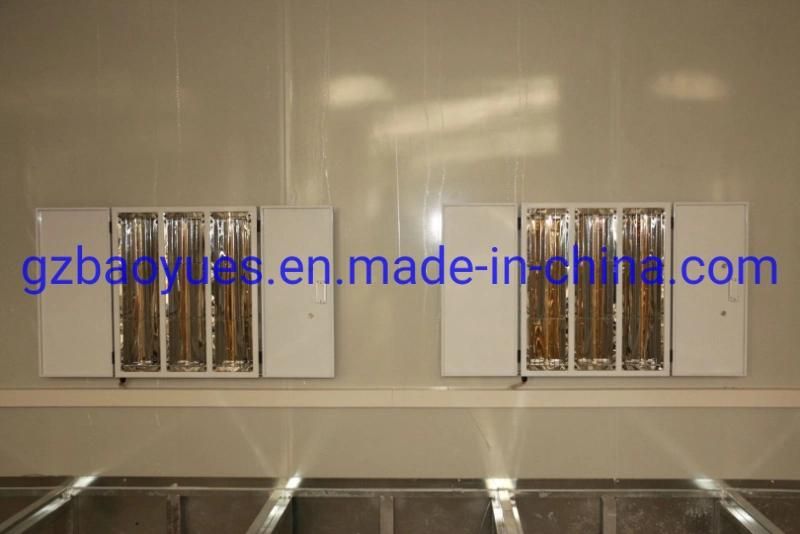

Light system	Ceiling Lights: 8Units × 4Pcs=32Pcs*36W, with short wave infrared lamp on  both sides
Generator cabinet	Intake air from back upper direction, exhaust air from back upper direction galvanized steel molding frame; white coated steel outside, galvanized steel inside, filled with heat preservation material in the middle.
Intake and exhaust system	Intake: 1×   7.5 KW double-intake centrifugal fans for intake air, model YDW4.5M, air capacity for each fan: 21000m 3 /h...Exhaust: 1× 7.5 KW double-intake centrifugal fan for exhaust air, model YDW4.5M, air capacity: 21000m 3 /h, with manual damper for exhaust air.
Heating system	With short wave infrared lamp heating
Purification system	Pre-filter, ceiling filter, fibreglass filter, active carbon filter
Roof	Galvanized steel plates
Control box	Spraying, heat spraying, baking, time setting, lighting switch, failure indicator, thermostat, power supply switch, emergency stop, hour meter. All motors are normal start.
Total power	45KW

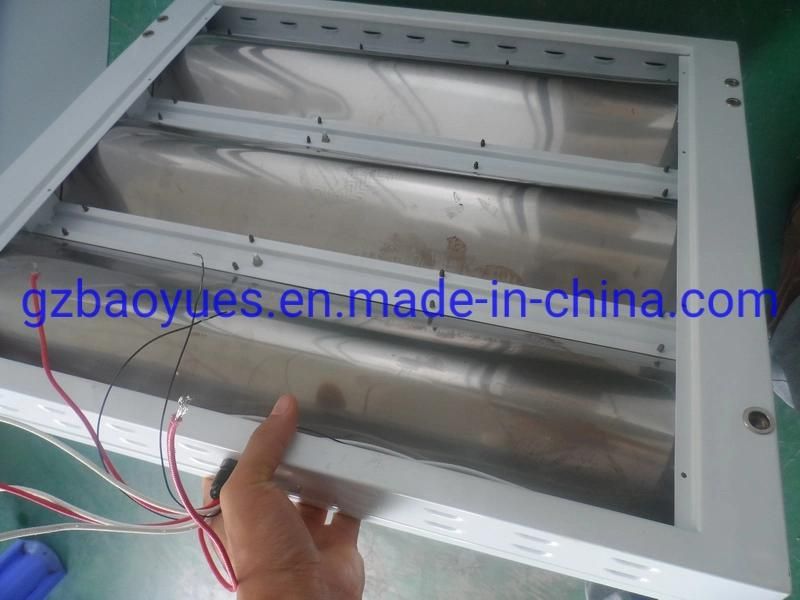

Parts details:

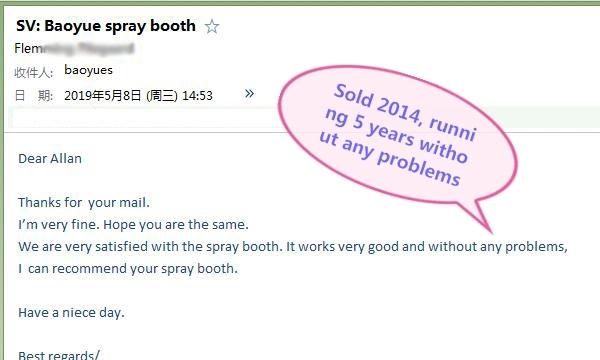

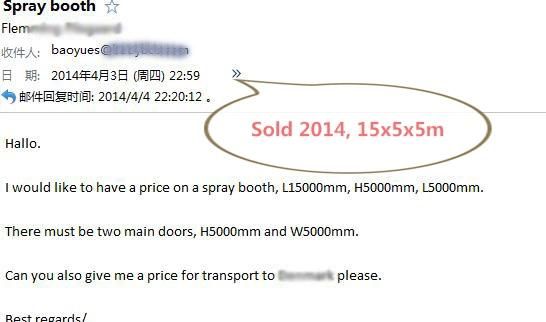

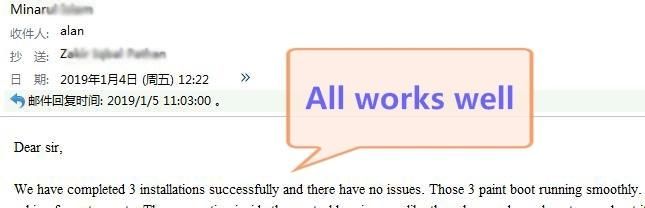

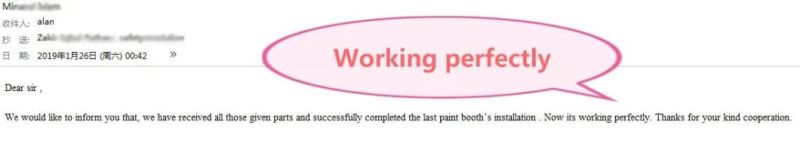

What customer saying:

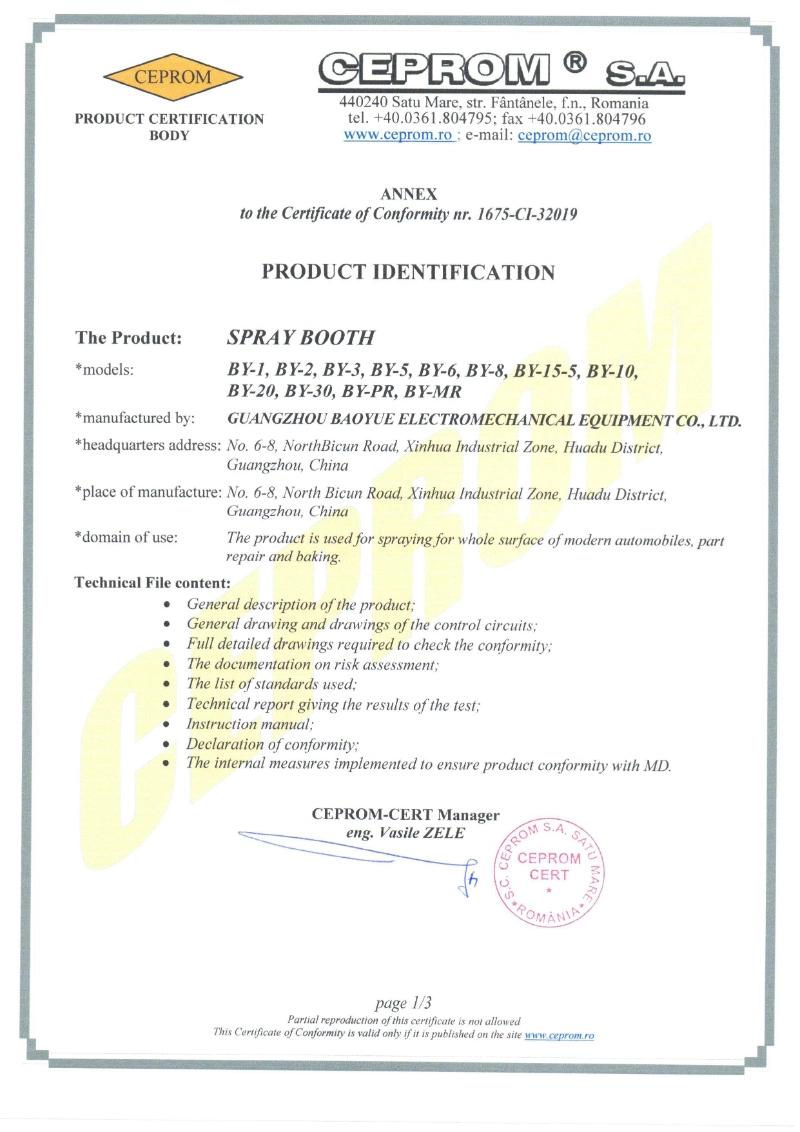

Certificate:

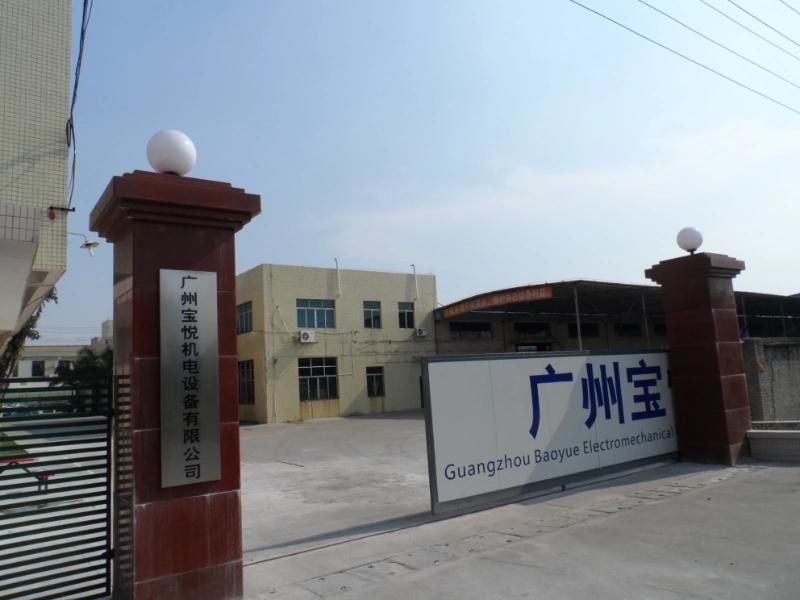

Factory show:
