• Model NO.：non-standard
• Brand：Baoyue
• Coating：Painting
• Airflow Direction：Cross-flow Type
• Heating Mode：Diesel
• Paint Mist Treatment：Dry-type
• Condition：New
• Color：Optional
• Purification：≥95%
• Usage：Car,Bus,Furniture Spray Paint Baking
• Air Capacity：21000m3,H
• Noise Decibels (a)：≤80
• Max Operating Temprature：80
• Frequency of Air Change：294time,H
• Volotage：220V, 380V, 50Hz
• Certificate：CE
• Warranty：1 Year
• Transport Package：Standard Export Package
• Specification：CE
• Trademark：Bauyues
• Origin：Guangzhou, China
• HS Code：8419899090
• Production Capacity：50set,Month
• Package size per unit product：690.00cm * 390.00cm * 265.00cm
• Gross weight per unit product：3500.000kg

Intake and Exhaust systemInlet: 2x3KW double-intake centrifugal  fan, model YDW4.5M1, air capacity: 10500m 3 /h.Outlet: 1x4KWdouble-intake centrifugal fan,  model YDW4.5L1 , air capacity: 12500m 3 /h.Heating systemRIELLO G20 diesel burner, stainless steel heat exchanger, electric damper actuates from spraying to baking cycle. Max. heating productivity: 200000kcal/h.Purification systemPre-filter, ceiling filter, fibreglass filter, activated carbon filterRoofGalvanized steelControl systemSpraying, heat spraying, baking, time setting, lighting switch, failure indicator, thermostat, power supply switch, emergency stop, temperature limit controller,  adjustable electric exhaust damper, all motors are normal start.Total power12KW

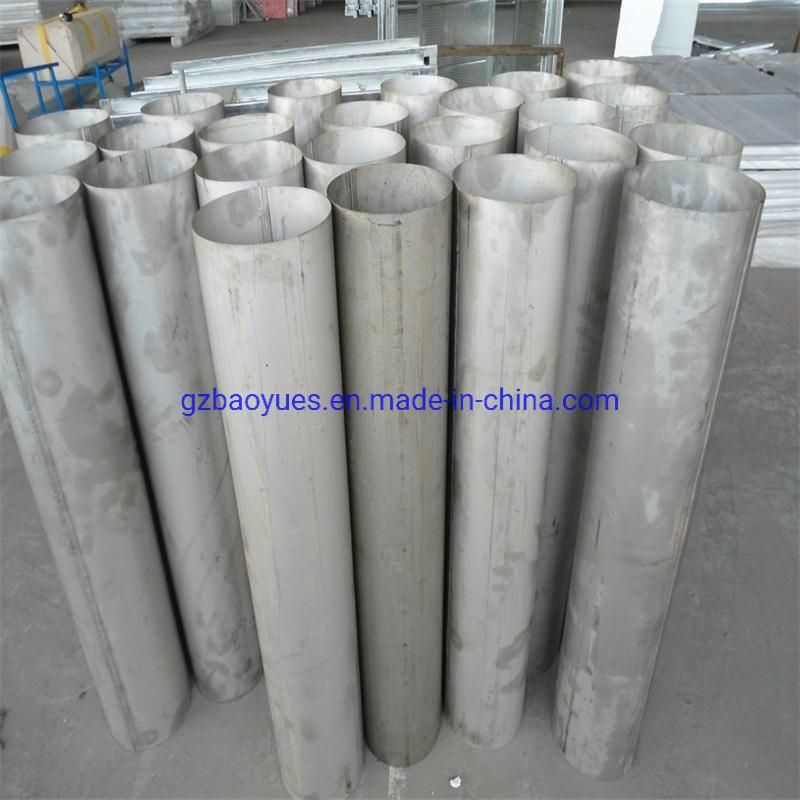

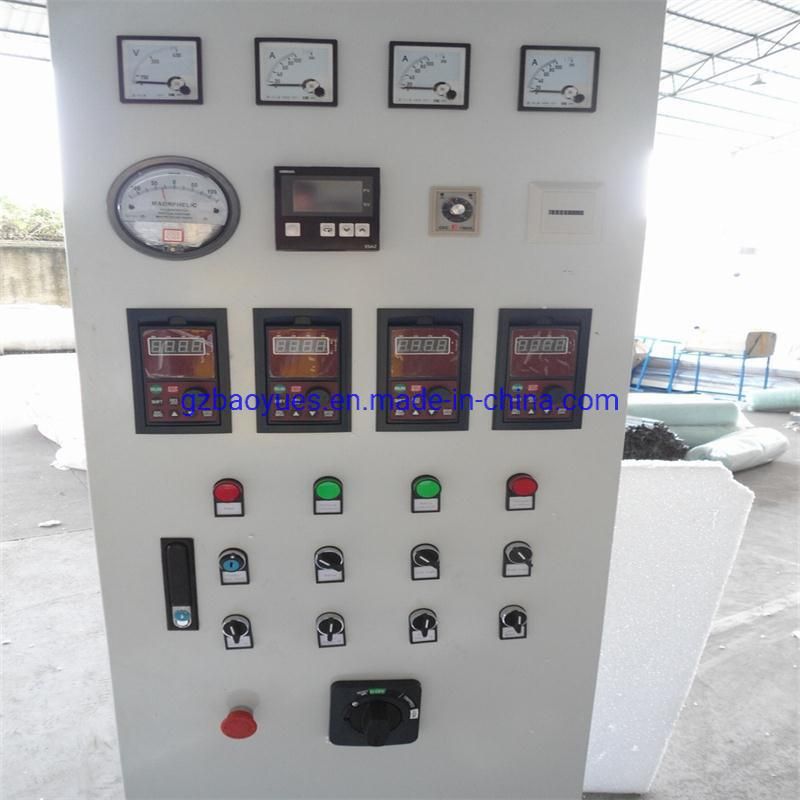

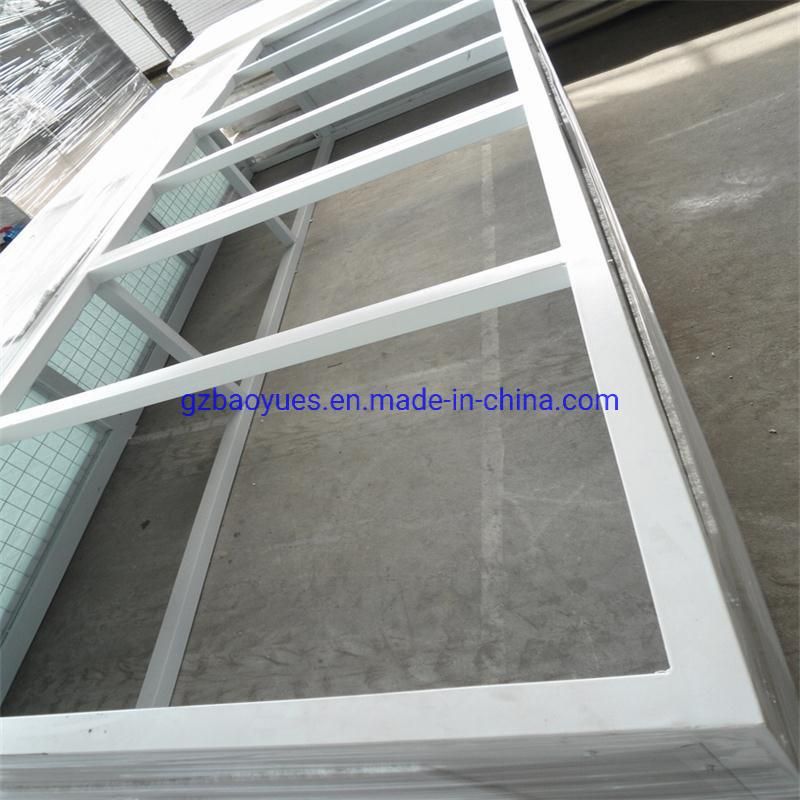

Parts details:







What customer saying:

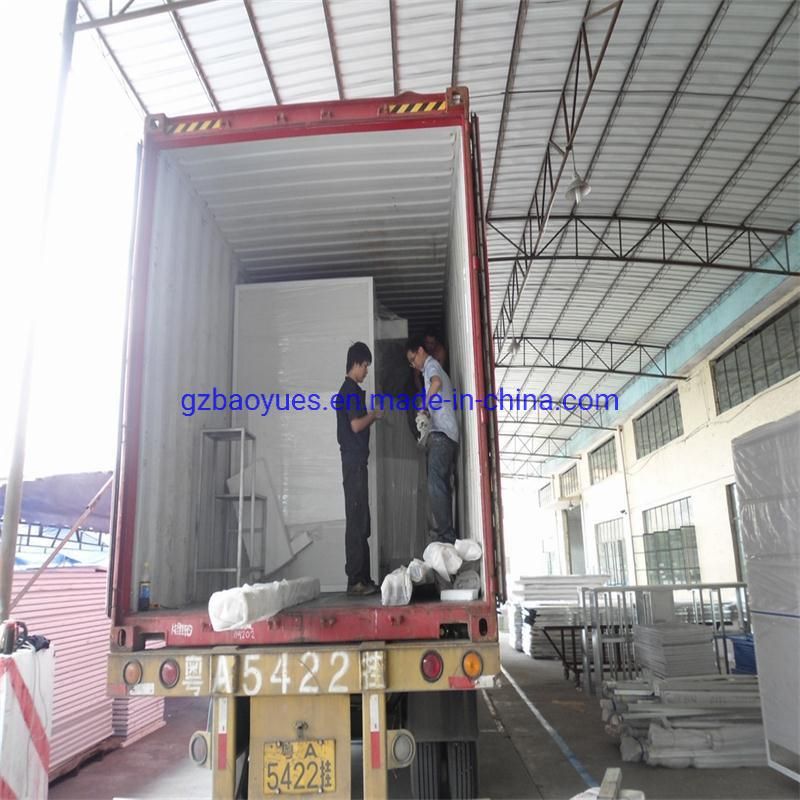

Factory show:
