• Model NO.：non-standard
• Brand：Baoyues
• Coating：Painting
• Airflow Direction：Fully Undershot-type
• Heating Mode：Diesel
• Paint Mist Treatment：Dry-type
• Condition：New
• Brand Name：Baoyues
• Color：Optional
• Voltage：220V,380V,50Hz
• Purification：≥95%
• Noise Db (a)：≤70
• Certificate：CE,CCS
• Safety：with Auto Pressure Emergency Door
• Air Capacity：25000m3,H
• Usage：Furniture Paint Booth
• Wararanty：12 Month
• Transport Package：Standard Export Package
• Specification：CE
• Trademark：Bauyues
• Origin：Guangdong, China
• HS Code：8419899090
• Production Capacity：50set,Month

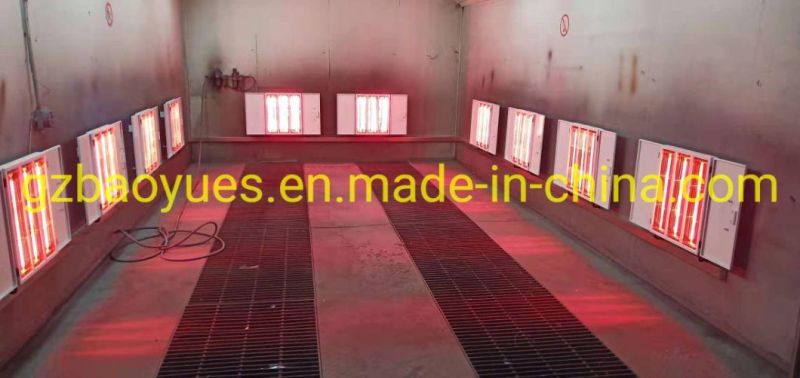

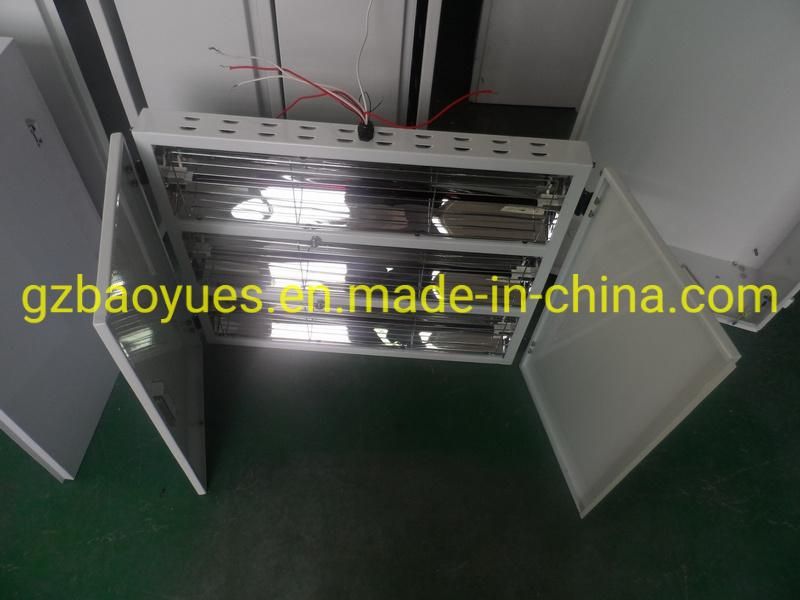

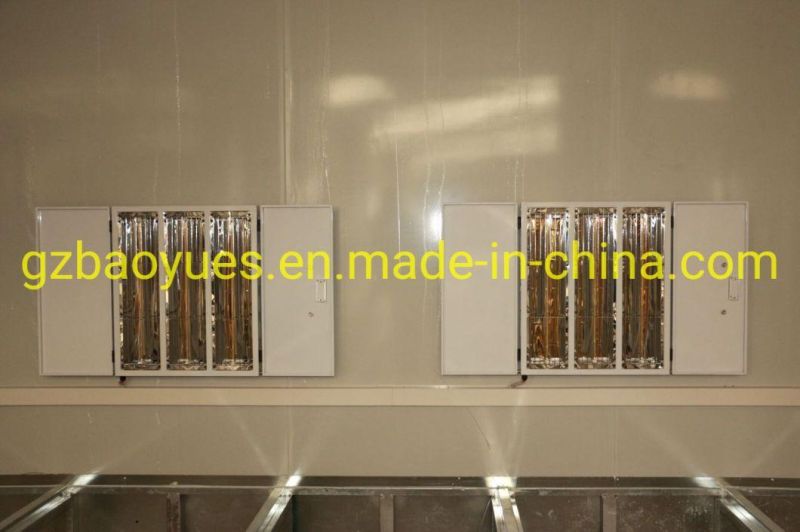

Intake and Exhaust   systemInlet: 2×3 KW double-intake centrifugal  fans, model  YDW4.5M1,  air capacity for each fan:  10500m 3 /h.Outlet:  1× 4KW double-intake centrifugal  fan, model  YDW4.5L1 , air capacity:  12500m 3 /h .Heating system10 sets infrared heatingPurification systemPre-filter, ceiling filter, fibreglass filter, activated carbon filterRoofGalvanized steel.Control systemSpraying, heat spraying, baking, time setting, lighting switch, failure indicator, thermostat, power supply switch, emergency stop,  temperature limit controller, exhaust with manual damper,  all motors are normal start.Total Power12KW

Parts Details:

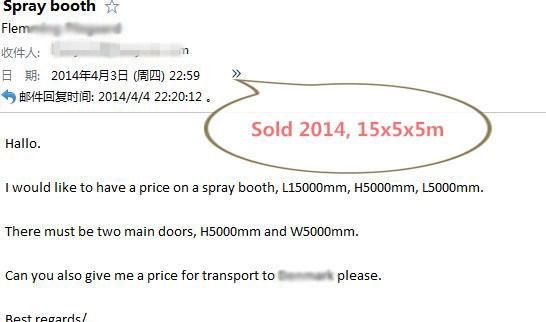

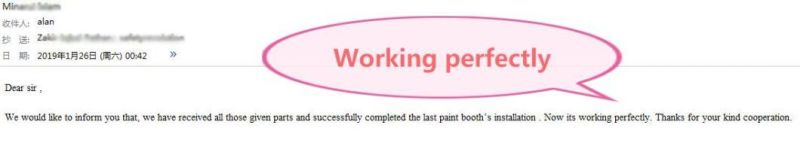

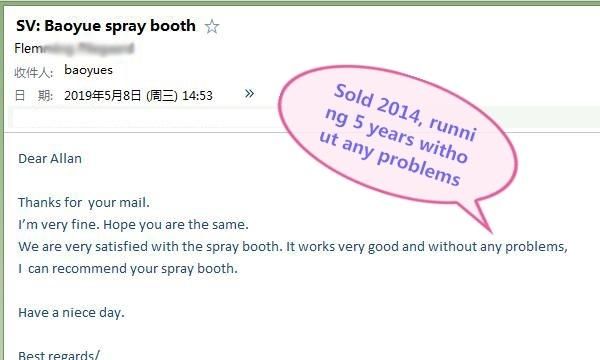

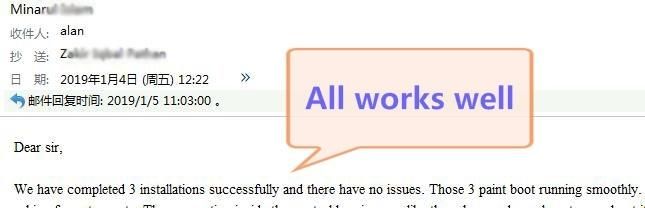

What customer saying:

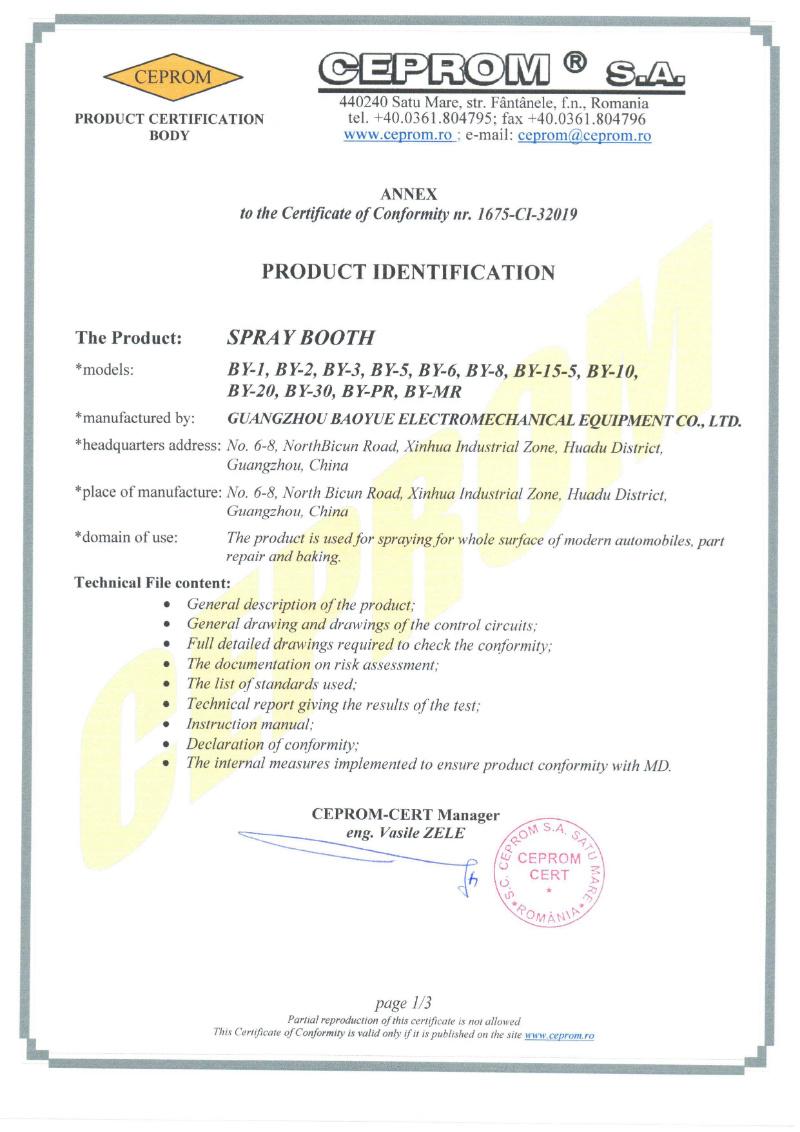

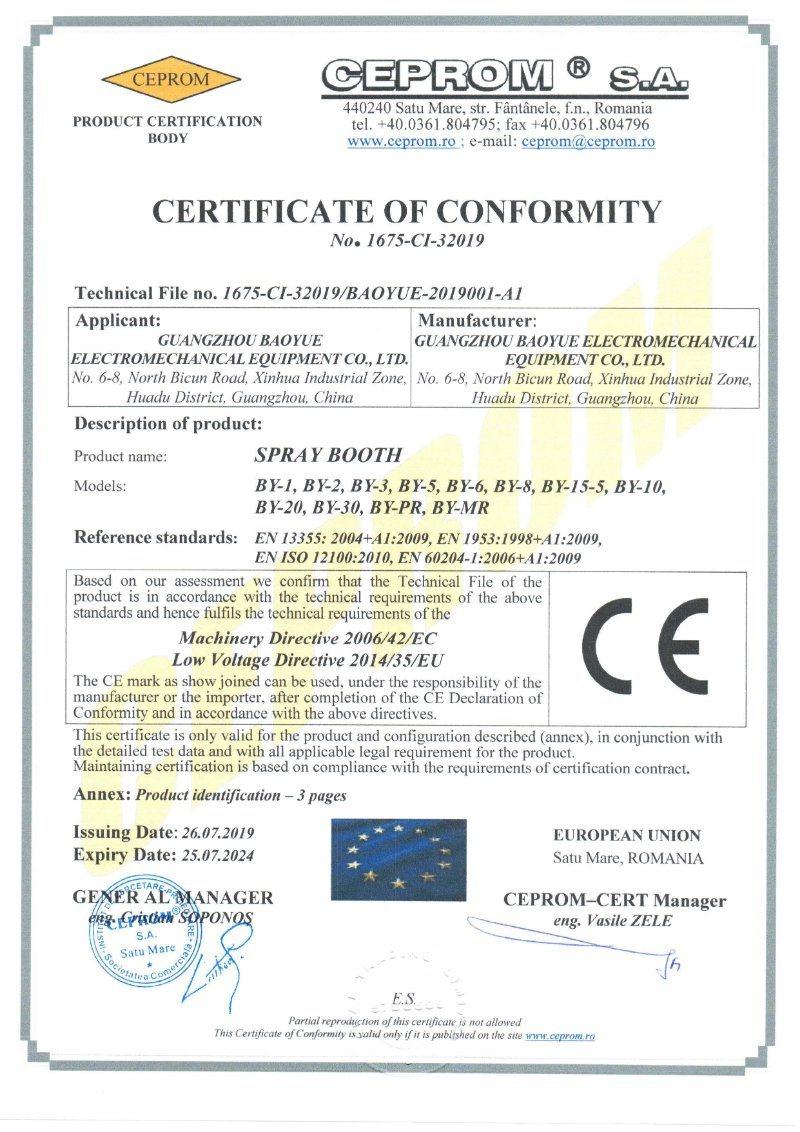

Certificate:




Factory show:
