Automotive Car Painting and Baking Room Car Body Paint/Oven Spray Booth
Zouping Hongyuan Eco-Friendly Mechanical Technology Co., Ltd.- After-sales Service：Available
- Warranty：12months
- Type：Spray Booth
- Certification：CCC, CE
- Substrate：Steel
- Brand：Hongyuan
Base Info
- Model NO.：HY-CB55A
- Coating：Painting
- Airflow Direction：Fully Undershot-type
- Heating Mode：Gas, LPG, LNG
- Paint Mist Treatment：Dry-type
- Condition：New
- Color：Red, Blue, White, Grey
- Panel：75mm Thickness EPS Foam Panel
- Grates：Full Grates
- Intake Fan：2set
- Exhaust Fan：1set
- Filter System：4-Stage Filtration
- Heating System：Gas, LPG, LNG
- Upper Lights：Available
- Side Lights：for Option
- Control Box：English Panel
- Drawing：Available
- User Manual：Available
- Installaion Video：Available
- Related Product 1：Car Lift
- Related Product 5：Car Auto Electric Winch for Towing
- Transport Package：Standard Package for Sea Shipment
- Specification：26CBM for FCL
- Trademark：Hongyuan
- Origin：Shandong, China
- Production Capacity：100 Set Per Month
Description
Basic Info.
Model NO. HY-CB55A Coating Painting Airflow Direction Fully Undershot-type Heating Mode Gas, LPG, LNG Paint Mist Treatment Dry-type Condition New Color Red, Blue, White, Grey Panel 75mm Thickness EPS Foam Panel Grates Full Grates Intake Fan 2set Exhaust Fan 1set Filter System 4-Stage Filtration Heating System Gas, LPG, LNG Upper Lights Available Side Lights for Option Control Box English Panel Drawing Available User Manual Available Installaion Video Available Related Product 1 Car Lift Related Product 5 Car Auto Electric Winch for Towing Transport Package Standard Package for Sea Shipment Specification 26CBM for FCL Trademark Hongyuan Origin Shandong, China Production Capacity 100 Set Per MonthProduct Description
Introduction of the Automotive car painting and baking room car body paint/oven spray booth1. full-down draft paint booth:
2. semi-down draft paint booth:
3. side-down draft paint booth:
4. cross-draft paint booth:
Quick Specification of Automotive car painting and baking room car body paint/oven spray booth
| Model | HY-CB55A |
| Outside Size(mm) | 7000(L)*4000(W)*3400(H) |
| Inside Size(mm) | 6900(L)*3900(W)*2700(H) |
| Front Door(mm) | 3000*2600(W*H) |
| Side Door(mm) | 650*1800(W*H) |
| Total power | <15kW |
| Voltage status | 380V/3ph&220V/1ph@50Hz |
| Wall Panel | 50mm EPS foam panel |
| Ceiling panel | Galvanized steel |
| Basement&floor | Raised metal-base (300mm high) with 2rows of grates and 3rows of diamon plates. |
| Intake | Two set of fan, motor: 4kW. |
| Exhaust | One set of fan, motor: 5.5kW. |
| By-pass | Pneumatic damper from spraying to baking cycle |
| Heating System(GAS) | Italy Riello FS10/FS20 gas burner, one-stage oil burner/electricity for option. |
| Filter System | 4 stages of filters: Pre-filter, ceiling filter, floor paint-stop filter, extract paint-stop filter |
| Lighting | Upper lights, 8units, 4*36W each. |
| Control System | 1set. |
Package of the Automotive car painting and baking room car body paint/oven spray booth
details show of Automotive car painting and baking room car body paint/oven spray booth
parts show of the Automotive car painting and baking room car body paint/oven spray booth
Production area and equipment for Baking Car Auto Paint Spray Booth Room for Sale
Package Show of Baking Car Auto Paint Spray Booth Room for Sale

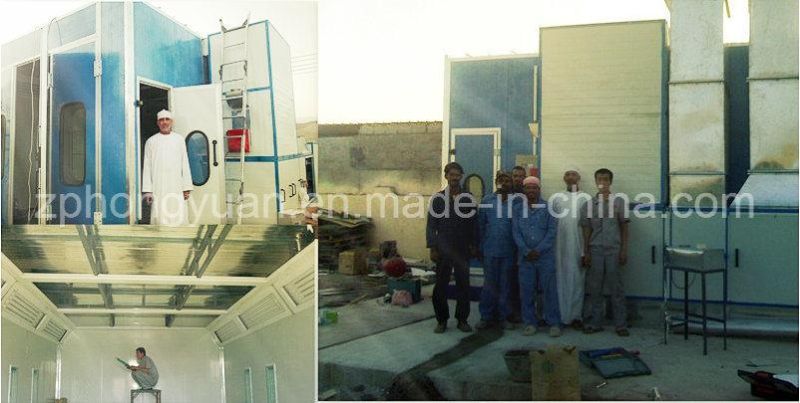

Installation abroad
Project case for paint booth
Comparison of the high price and lower price
Send us enquiry for Automotive car painting and baking room car body paint/oven spray booth
