• Model NO.：HY-CB55B
• Coating：Painting
• Airflow Direction：Fully Undershot-type
• Heating Mode：Diesel
• Paint Mist Treatment：Dry-type
• Condition：New
• Color：Red, Blue, White, Grey
• Panel：75mm Thickness EPS Foam Panel
• Grates：Full Grates
• Intake Fan：2set
• Exhaust Fan：1set
• Filter System：4-Stage Filtration
• Heating System：Gas, LPG, LNG
• Upper Lights：Available
• Side Lights：for Option
• Control Box：English Panel
• Control：Automatic
• Drawing：Available
• User Manual：Available
• Installation Video：Available
• Related Product：Car Lift,Tire Changer,Wheel Balancer
• Transport Package：Standard Package for Sea Shipment
• Specification：26CBM for FCL
• Trademark：Hongyuan
• Origin：Shandong, China
• Production Capacity：100 Set Per Month

Basic Info.

Model NO. HY-CB55B Coating Painting Airflow Direction Fully Undershot-type Heating Mode Diesel Paint Mist Treatment Dry-type Condition New Color Red, Blue, White, Grey Panel 75mm Thickness EPS Foam Panel Grates Full Grates Intake Fan 2set Exhaust Fan 1set Filter System 4-Stage Filtration Heating System Gas, LPG, LNG Upper Lights Available Side Lights for Option Control Box English Panel Control Automatic Drawing Available User Manual Available Installation Video Available Related Product Car Lift/Tire Changer/Wheel Balancer Transport Package Standard Package for Sea Shipment Specification 26CBM for FCL Trademark Hongyuan Origin Shandong, China Production Capacity 100 Set Per Month

Product Description

Introduction of the CE Approved Automatic Car Spray Booth, Car Paint Room, Paint Cabin/Paint Booth / Baking Oven with diesel burner
1. full-down draft paint booth:
2. semi-down draft paint booth:
3. side-down draft paint booth:
4. cross-draft paint booth:

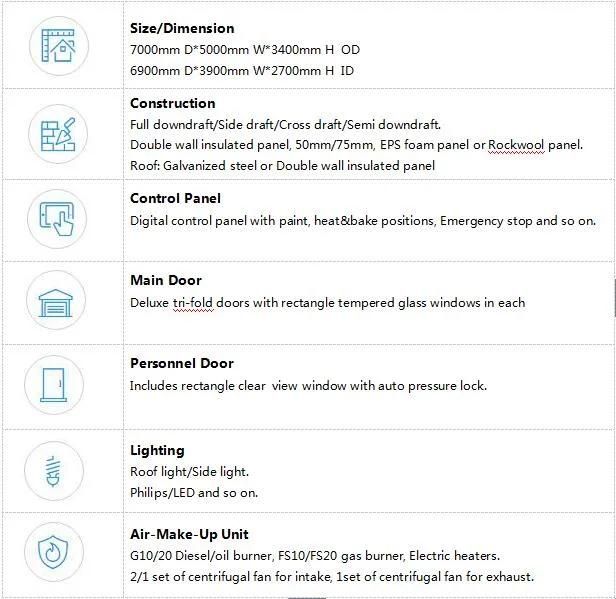

Quick Specification of CE Approved Automatic Car Spray Booth, Car Paint Room, Paint Cabin/Paint Booth / Baking Oven with diesel burner

Model	HY-CB55B
Outside Size(mm)	7000(L)*4000(W)*3400(H)
Inside Size(mm)	6900(L)*3900(W)*2700(H)
Front Door(mm)	3000*2600(W*H)
Side Door(mm)	650*1800(W*H)
Total power	<13kW
Voltage status	380V/3ph&220V/1ph@50Hz
Wall Panel	50mm EPS foam panel
Ceiling panel	Galvanized steel
Basement&floor	Raised metal-base (300mm high) with 2row of grates and 3rows of diamond plates.
Intake	TWO sets of fan, motor: 4.0kW.
Exhaust	One set of fan, motor: 5.5kW.
By-pass	Pneumatic damper from spraying to baking cycle
Heating System(Oil)	Italy Riello one-stage oil burner./electric heating system/Riello gas burner.
Filter System	4 stages of filters: Pre-filter, ceiling filter, floor paint-stop filter, extract paint-stop filter
Lighting	Upper lights, 8units, 4*36W each.
Control System	1set.

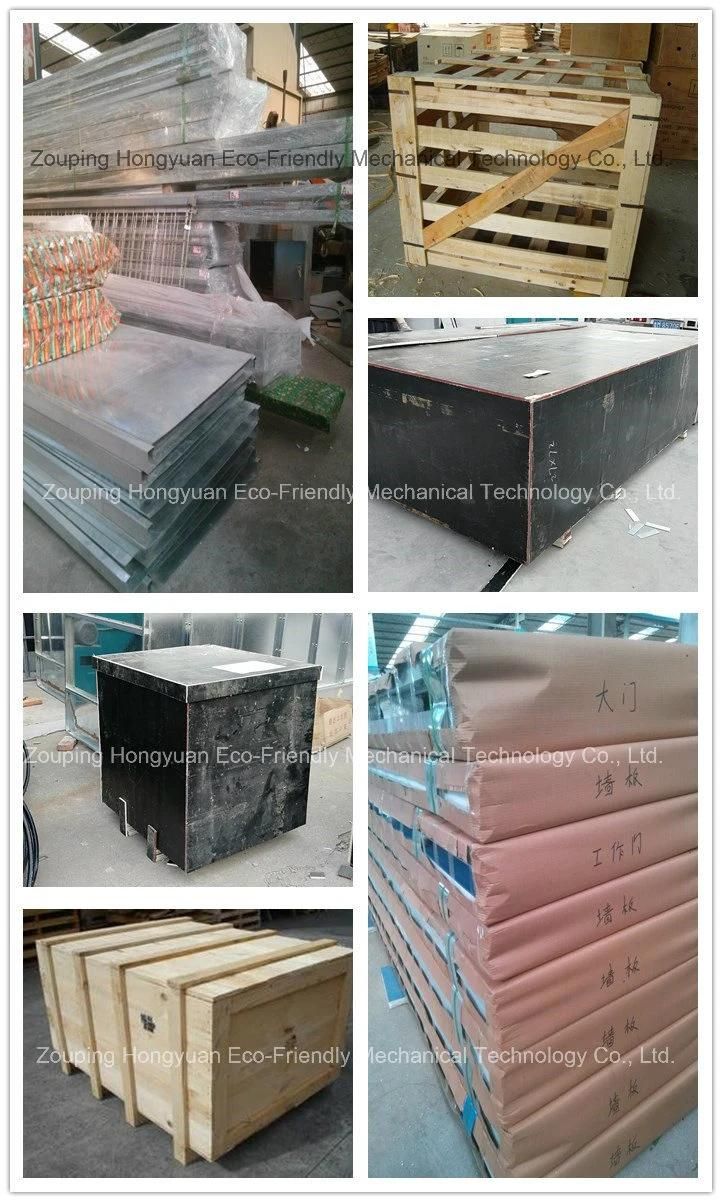

Package of the CE Approved Automatic Car Spray Booth, Car Paint Room, Paint Cabin/Paint Booth / Baking Oven with diesel burner


details show of CE Approved Automatic Car Spray Booth, Car Paint Room, Paint Cabin/Paint Booth / Baking Oven with diesel burner


parts show of the CE Approved Automatic Car Spray Booth, Car Paint Room, Paint Cabin/Paint Booth / Baking Oven with diesel burner



Production area and equipment for CE Approved Automatic Car Spray Booth, Car Paint Room, Paint Cabin/Paint Booth / Baking Oven with diesel burner

Project case for paint booth




Comparison of the high price and lower price


Send us enquiry for CE Approved Automatic Car Spray Booth, Car Paint Room, Paint Cabin/Paint Booth / Baking Oven with diesel burner
