Auto Painting Equipment/Car Spray Booth Oven/Paint Spray Booth with Down Draft
Guangzhou Infitech Mechanical and Electrical Equipment Co., Ltd.- After-sales Service：24 Hours After Service
- Warranty：2 Years
- Type：Spray Booth
- Certification：CCC, CE
- Substrate：Steel
- Brand：Infitech
Base Info
- Model NO.：IT-9-5A
- Coating：Powder Coating
- Airflow Direction：Fully Undershot-type
- Heating Mode：Diesel
- Paint Mist Treatment：Dry-type
- Condition：New

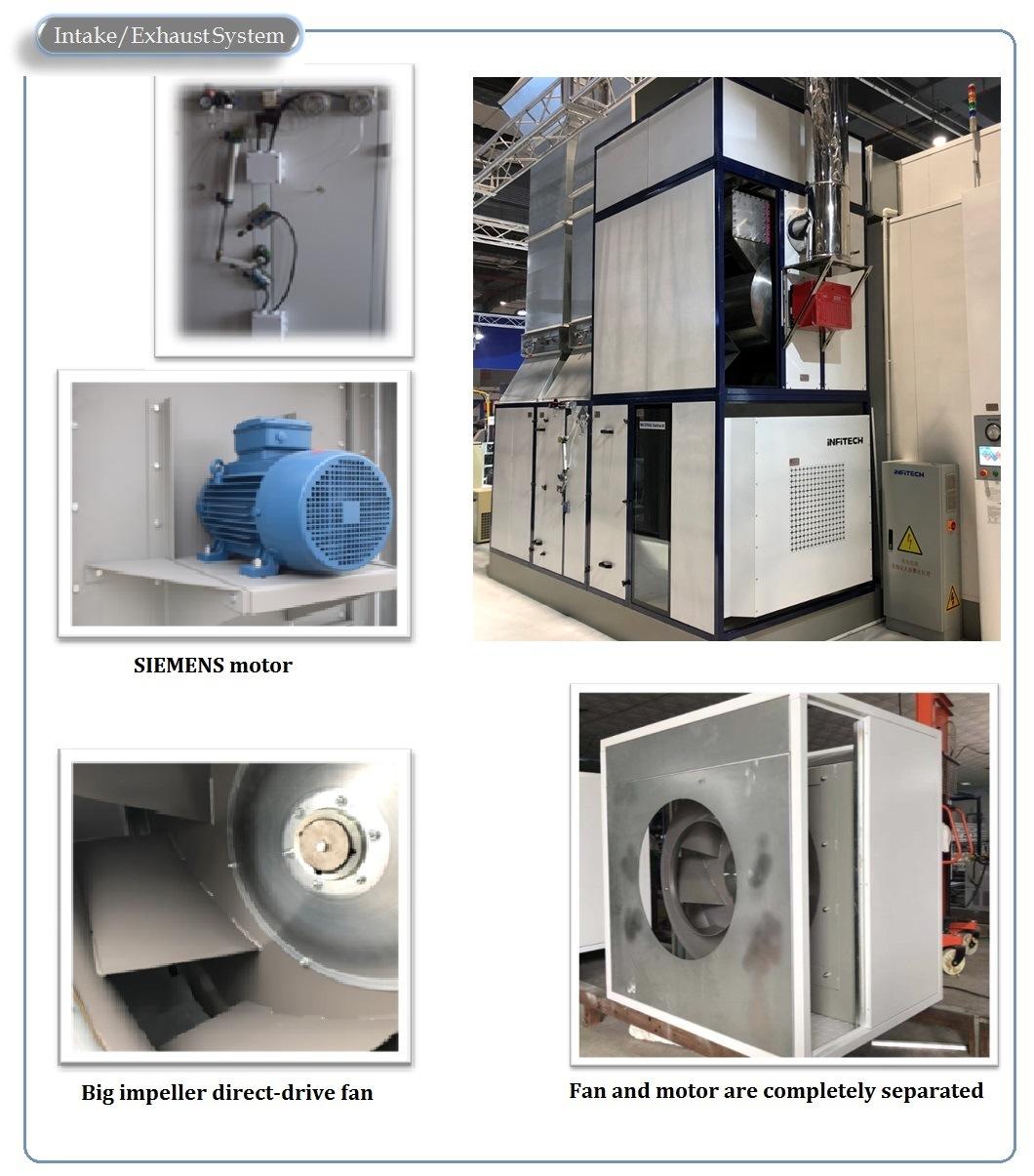

- Fan：Direct-Drive Big Impeller Fan
- Motor：11kw, Siemens
- Burner：Riello Rg5d

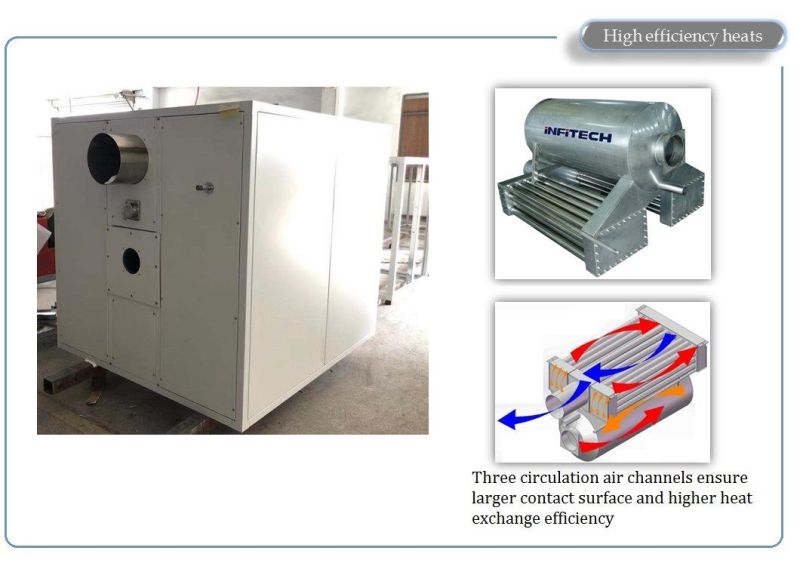

- Heat Exchanger：315kw
- Plenum：800mm High
- Extraction：Through 2 Rows of Pits

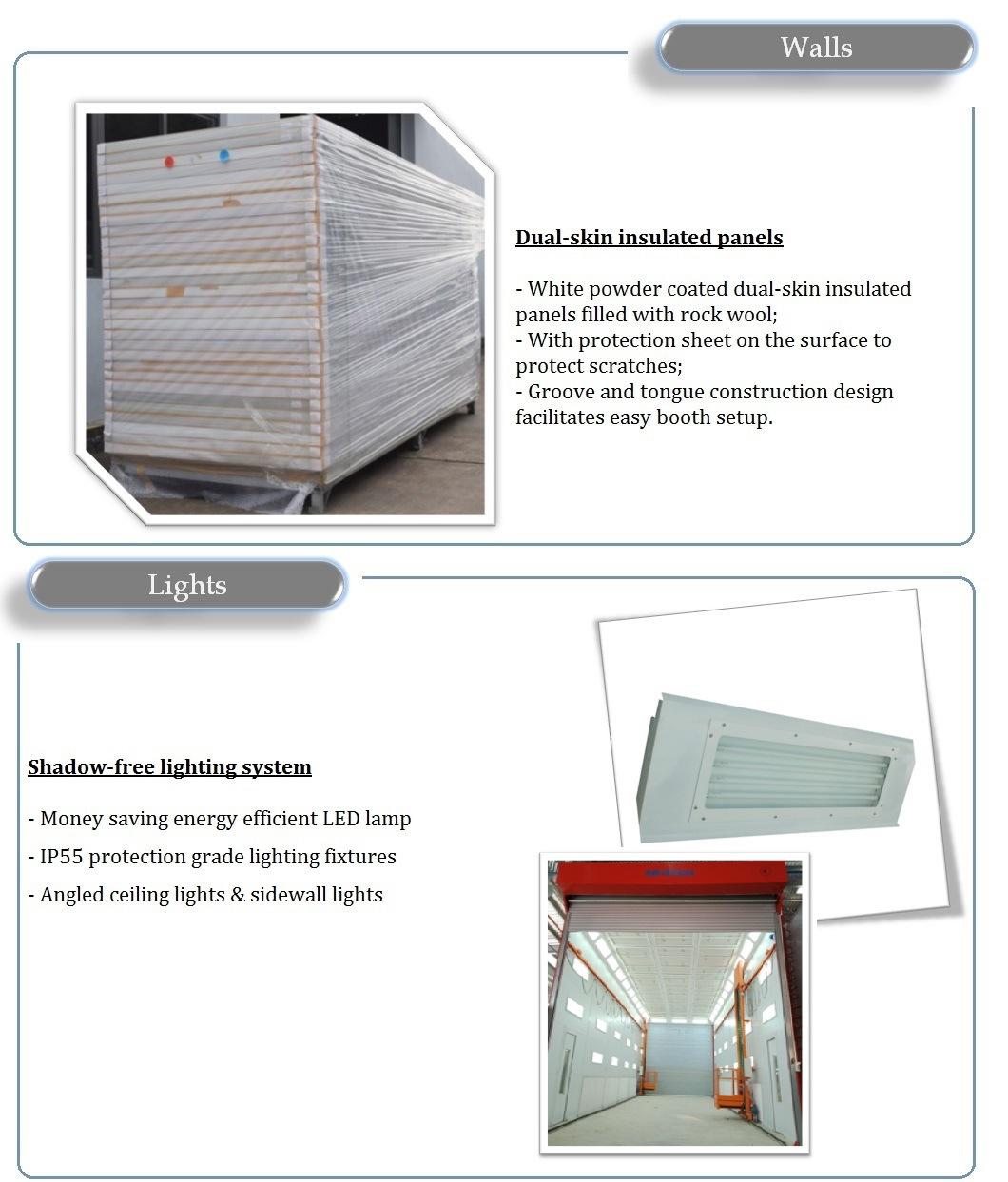

- Walls：60mm Thick Rock Wool Panels
- Lights：LED Lamp
- Illumination：>1,000lux
- Noise：<78dB

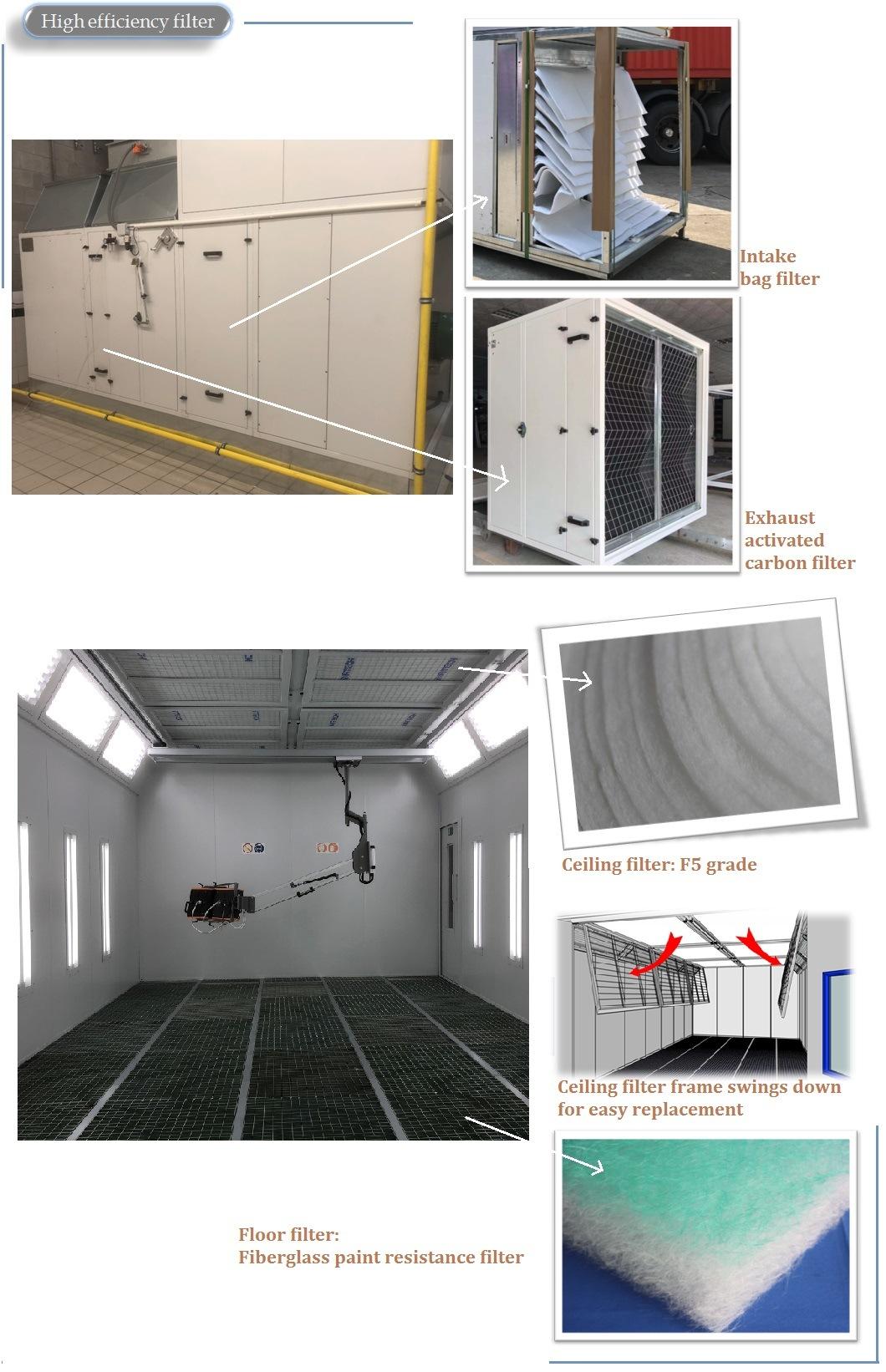

- Filters：High Efficiency Filters
- Air Volume：35,000m3,H
- Empty Loaded Air Speed：0.21m,S

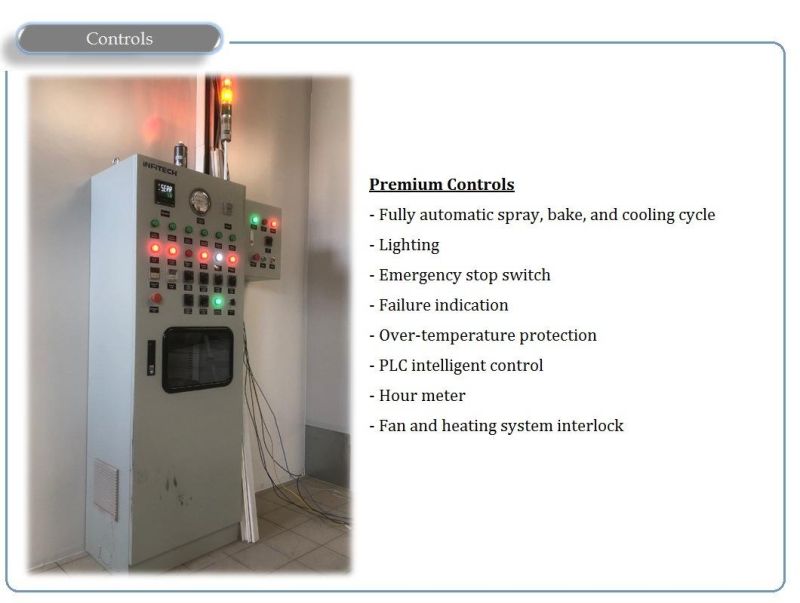

- Controls：CE Standard
- Transport Package：Polyfoam and Metal Frame
- Specification：9000*5000*5000mm
- Trademark：INFITECH
- Origin：Guangzhou, China
- HS Code：8419899090
- Production Capacity：1000 Pieces,Year
Description
Auto Painting Equipment/Car Spray Booth Oven/Paint Spray Booth With Down DraftITEMS SPECIFICATIONS Design standard BS EN 13355: 2004+A1:2009
BS EN 60204: 2006+A1:2009 Internal dimensions 9000 X 5000 X 5000mm (L X W X H) External dimensions 9160 X 6810 X 5860mm(L X W X H) Airflow Downdraft Plenum 800mm high Extraction Through two rows of 800mm deep pits in the ground Entrance door 1 set, 4270 X 4650mm (W X H) Walls 60mm thick rock wool panels Ceiling lighting (LED) 12 sets, each 4 X 18W, 864W total Sidewall lighting (LED) 18 sets, each 4 X 18W, 1,296W total Brightness >1,400LUX Filters Pre-filter, high efficiency filter, floor filter, exhaust filter Air intake Direct-type turbine fan, 11KW SIEMENS motor Air exhaust Direct-type turbine fan, 11KW SIEMENS motor Air volume 35,000m3/h Empty loaded air speed +/-0.21m/s Maximum working temperature 80ºC Heat exchanger power 315KW Burner RIELLO diesel burner RG5D (two stage) Controls CE standard control box Rated power 28KW

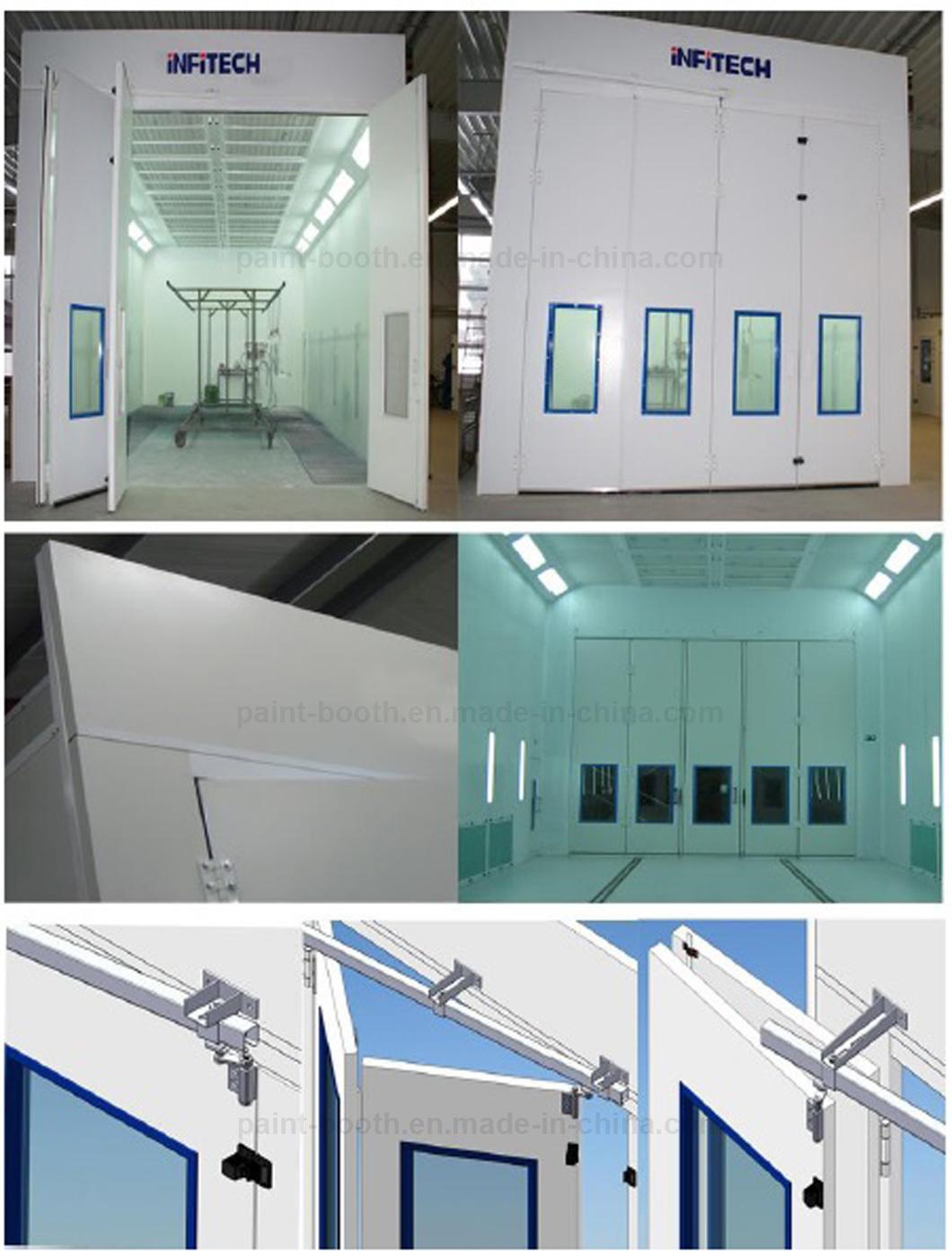

3. Details
4. Packaging & Loading

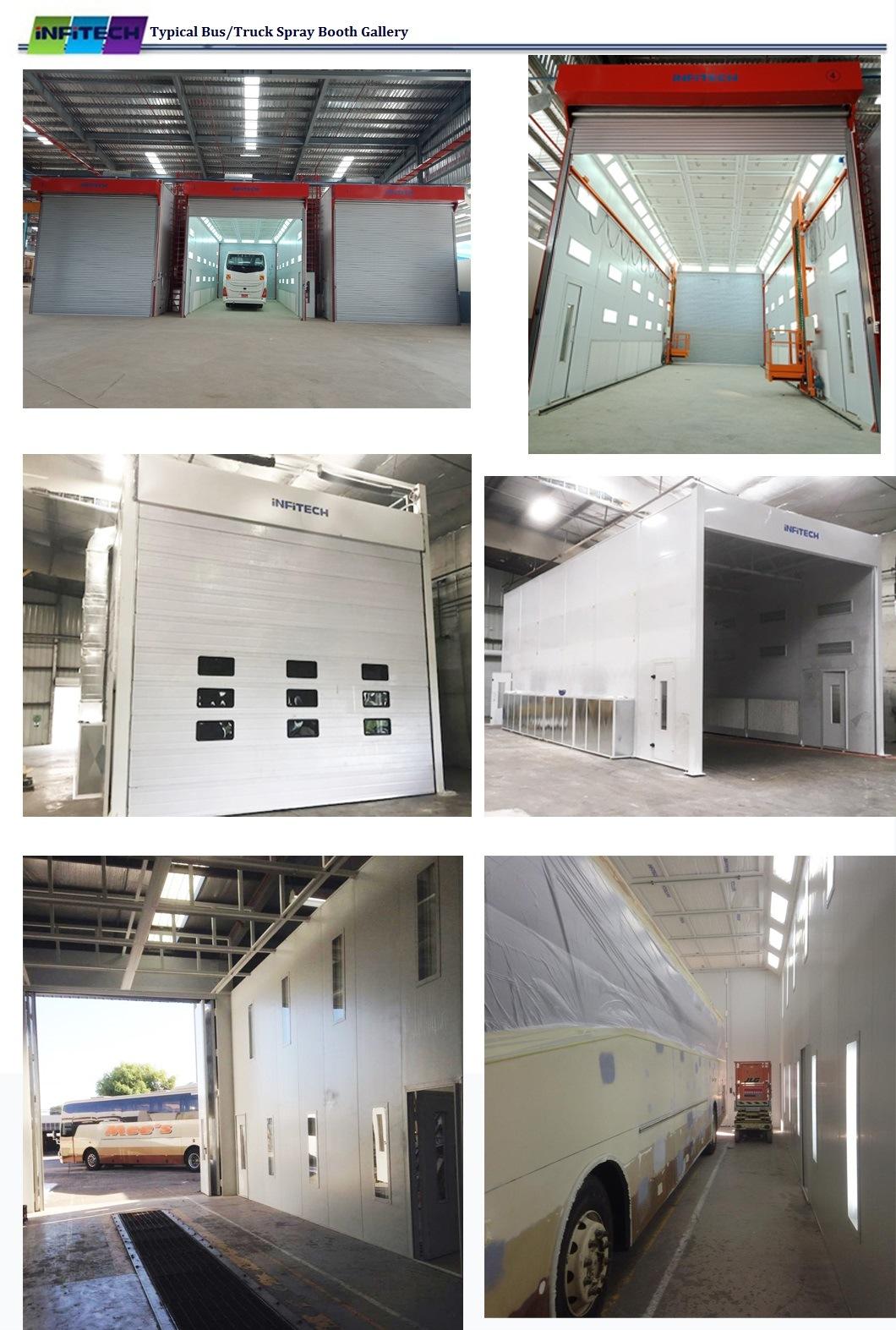

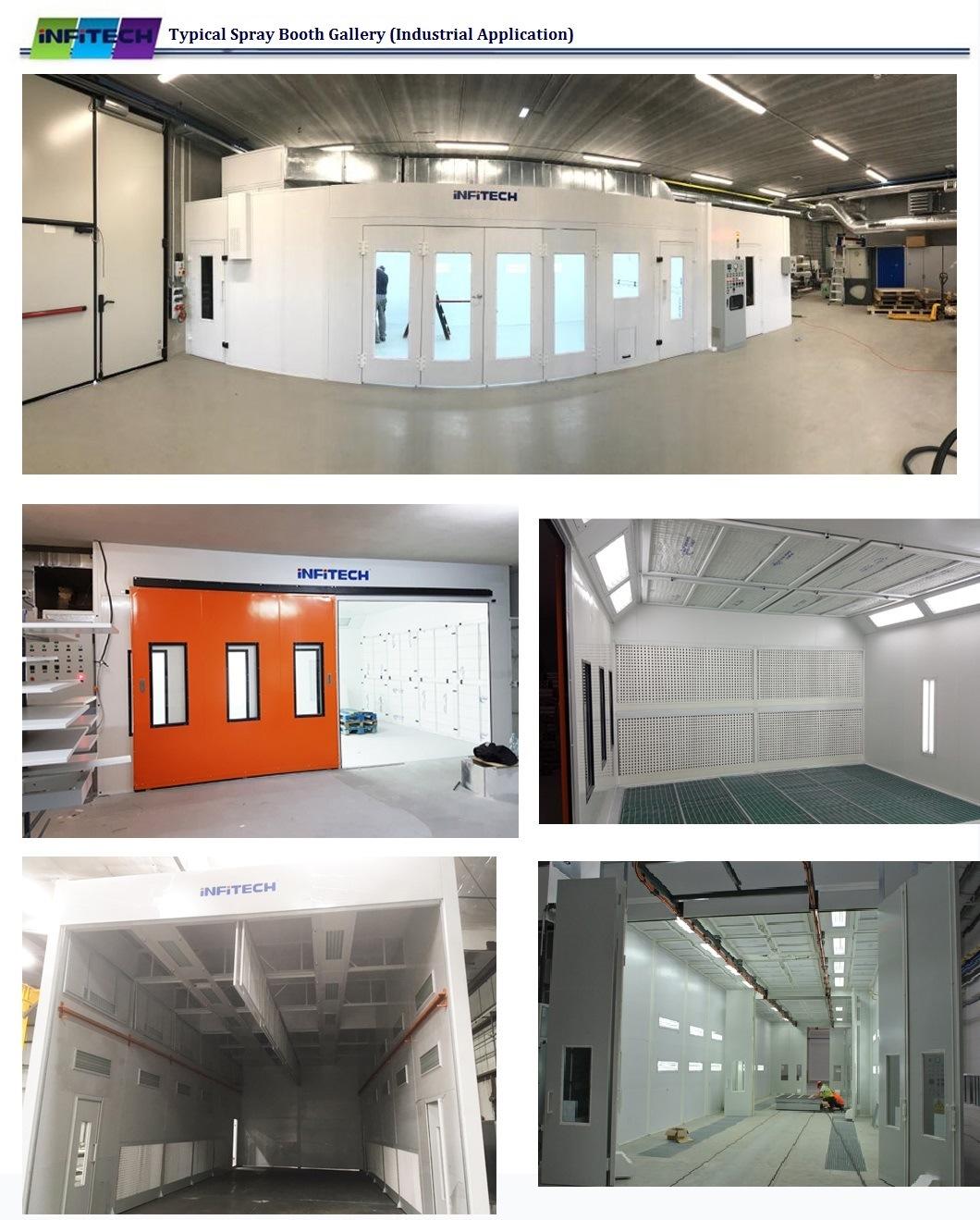

5. Typical projects
6. Company Profile
GUANGZHOU INFITECH is professional provider of painting workshop solutions. INFITECH specializes in CE certified spray booth, offering complete solution including design and layout, manufacturing, installation and maintenance. We take pride in delivering professional and ideal solution that best suits specific requirements, while maximize profits for shop owners.
Welcome to send inquiries! :-)
