3t 3m Hydraulic Scissor Underground Motorcycle Parking Lift
Shandong Lift Machinery Co., Ltd.- Type：Four Cylinder Hydraulic Lift
- Lifting Capacity：3T
- Certification：CE, ISO, GS
- Driving Motor Number of Mechanical Lift：1
- Double Cylinder Lift Type：Planer-type
- Shearing Lift Type：Big Shear Type
Base Info
- Model NO.：SJG3-3
- Condition：New
- Brand：Sdlift
- Design：Scissor
- Application：Auto Lift for Car Underground Parking Lift
- Lift Drive：Hydraulic Car Lift
- Motor：From Italy or Chinese Famous Brand
- Material：High Strength Manganese Steel
- Lift System：Hydraulic System
- Power Supply：220V,240V,380V,415V (as Request)
- Color：Red, Grey, Yellow, Blue, or as Your Optional
- Structure：Scissor Lift Structure
- Transport Package：Iron Case or Plywood Case Package
- Trademark：SDLIFT
- Origin：Shandong China
- HS Code：84289090
- Production Capacity：5000 Set Per Year
Description
The Auto Lift For Car Underground Parking Lift can be customized as your detailed size.
Safety:
1) Explosion-proof lock valve to avoid a sudden drop if emergency occurs
2) The safety guard rails to guarantee safety of the car above platform
3) The limit switch system helps the Auto Lift For Car Underground Parking Lift to stop at accurate position
4) Electricity leakage protection device is equipped on, all electric components are CE certified.
5) All the Auto Lift For Car Underground Parking Lift are passed 1.2 times loading test before leaving factory.
Configuration:
1) Platform Material:120mm*60mm rectangular tube +6mm checkered iron
2) Scissor material: 200mm*100mm*10mm high strength Manganese Steel.
3) Hydraulic system: 380V/4.0Kw
4) High Precision Hydraulic Cylinder: 100*4sets
5) Piston Rod: 70*4 hard chromium plating surface.
6) High-pressure oil pump
7) Hydraulic oil: summer 46#, winter 32#
8) Controller: 1 control box below, 1 control panel above platform

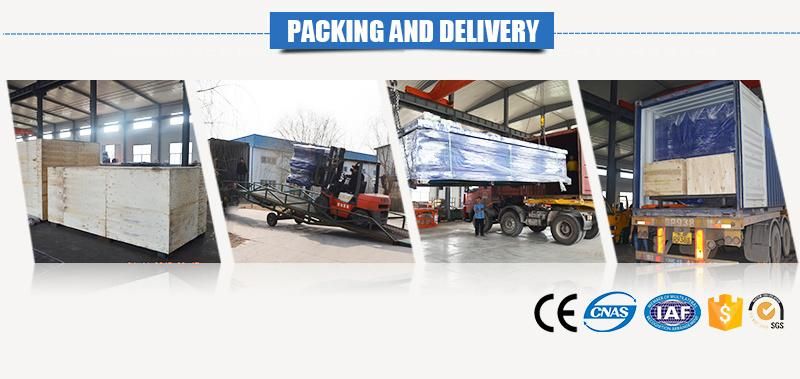

Packaging & Shipping:
