• Model NO.：SJG4-3
• Shearing Lift Type：Big Shear Type
• Condition：New
• Brand：Sdlift
• Design：Scissor
• Application：High Strength Car Lift Scissors Hydraulic Auto Lif
• Work Platform：Anti-Skid Thick Platform
• Motor：From Italy or Chinese Famous Brand
• Material：High Strength Manganese Steel
• Power Supply：220V,240V,380V,415V (as Request)
• Safe Device：Explosion-Proof Lock Valve
• Transport Package：Iron Case or Plywood Case Package
• Trademark：SDLIFT
• Origin：Shandong China
• HS Code：84289090
• Production Capacity：5000 Set Per Year

Basic Info.

Model NO. SJG4-3 Shearing Lift Type Big Shear Type Condition New Brand Sdlift Design Scissor Application High Strength Car Lift Scissors Hydraulic Auto Lif Work Platform Anti-Skid Thick Platform Motor From Italy or Chinese Famous Brand Material High Strength Manganese Steel Power Supply 220V/240V/380V/415V (as Request) Safe Device Explosion-Proof Lock Valve Transport Package Iron Case or Plywood Case Package Trademark SDLIFT Origin Shandong China HS Code 84289090 Production Capacity 5000 Set Per Year

Product Description

2 level type portable used car scissor hoist with CE

Application :

Car Platform Lift For Garage, the far-end control and multi-control points at the different floors could be realized hierarchical control. Stop anywhere at the pre-concerted and accurate location point. It can work under any condition, great load capacity, safe and reliable. There are sensitive overload protection devices locking device for falling protection.

Specification :

Load capacity	2000kgs (lower platform)   2000kgs (upper platform)
Platform size	5.6m x 2.8m (lower platform) 5.6m x 2.8m (upper platform)
Lift height	3m
Height between platforms	3m
Power	380v/50hz/3ph/5.5kw
Control system	1 control box, 1 control panel
Control buttons	up, down, stop, emergency
Safety device	explosion-proof lock valve
Standard	CE, ISO9001

Advantage :

1. Hydraulic lifting system, the far-end control and multi-control points at the different floors could be realized hierarchical control.

2. Stop anywhere at the pre-concerted and accurate location point. It can work under any condition, great load capacity, safe and reliable.

3. There are sensitive overload protection locking device to avoid falling for the Hydraulic Double Deck Car Parking Lift.

Package show :

Protective film + Iron box + iron plate +  waterproof cloth + protective film, please relaxed it.

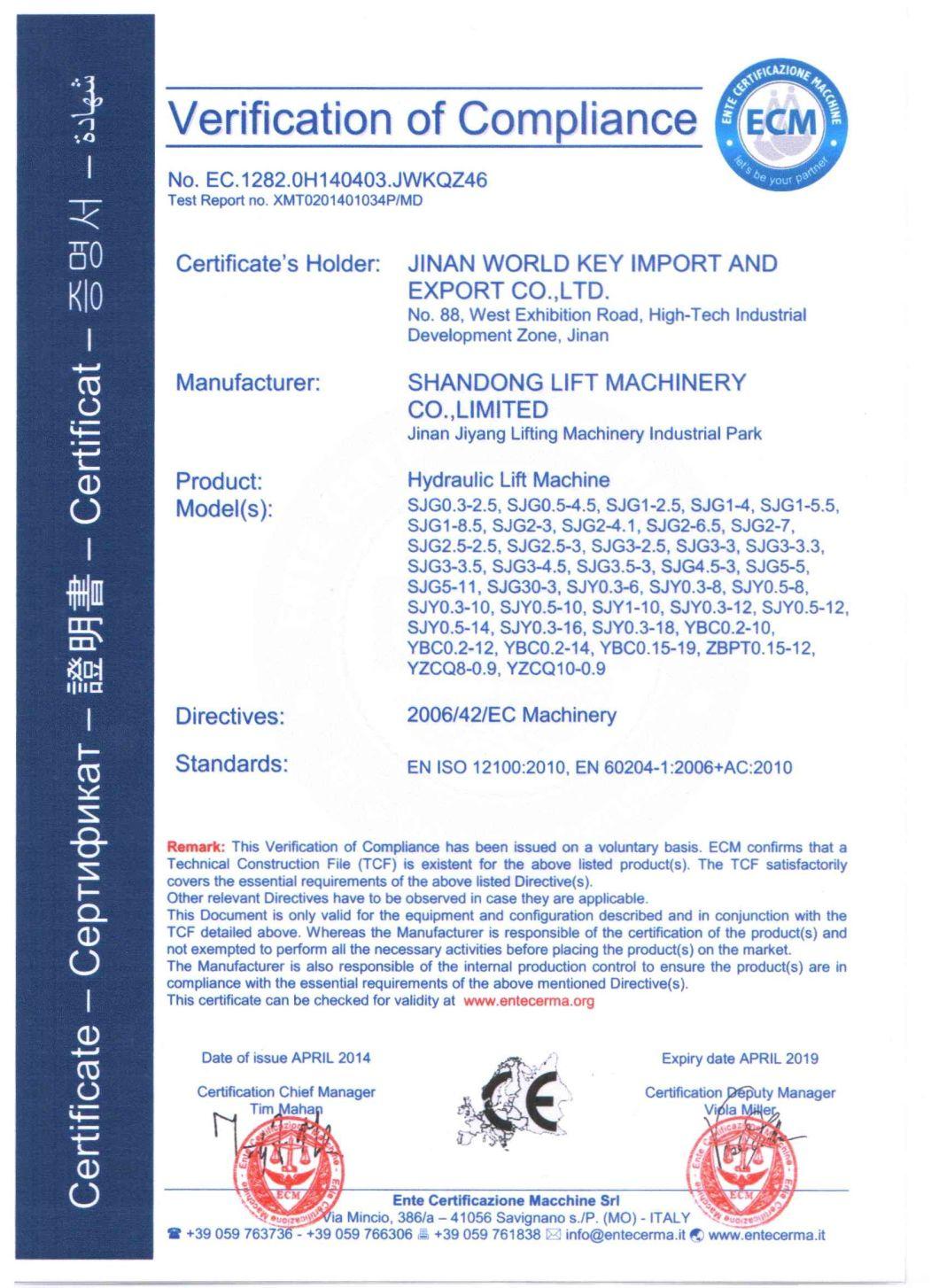

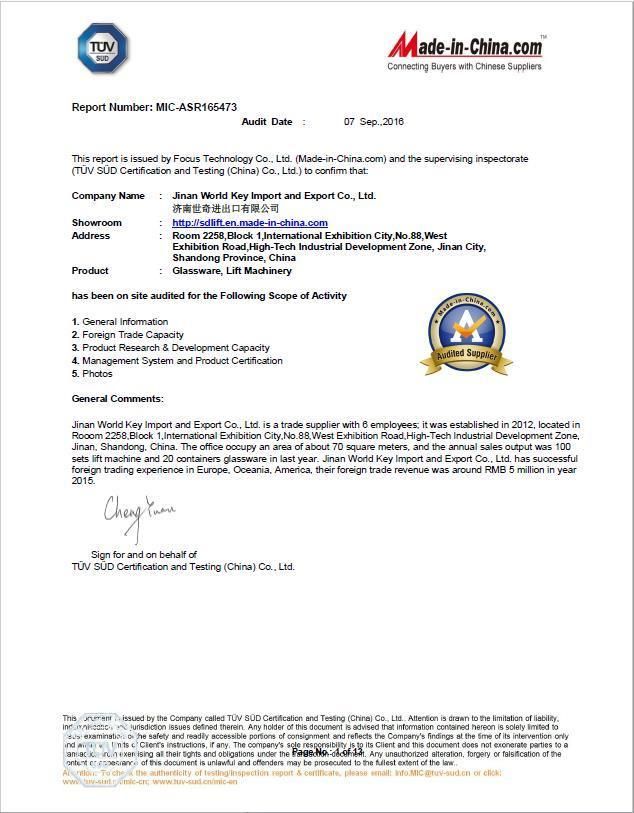

Certificate :

 The double car parking system has passed CE, TUV, SGS certificate, also welcome to visit our factory on site by yourself. We can discussing and study with each other.
