• Model NO.：BY-3
• Brand：Baoyues
• Coating：Painting
• Airflow Direction：Fully Undershot-type
• Heating Mode：Diesel
• Paint Mist Treatment：Wet-type
• Condition：New
• Product Name：Car Beauty, Paint Booth with Turbo Fan
• Usage：for Car(or Furniture) Painting, Baking
• Specifications：Customise Acceptable
• Certificate：CE, CCS, TUV, SGS
• Service：Professional Team for Installation Abroad
• Warranty：1 Year
• Transport Package：Sea Transport Packing 1 Set,20gp
• Specification：CE, CCS, TUV, SGS
• Trademark：Baoyues
• Origin：Guangzhou, China
• HS Code：84198990
• Production Capacity：80 Pieces,Month
• Package size per unit product：690.00cm * 390.00cm * 265.00cm
• Gross weight per unit product：3500.000kg

Detailed SpecificationInside dimension6900×3900×2650 mm (L×W×H)Outside dimension7000×5350×3400mm  (L×W×H)Front doorFolding door, 3 folds, 3000×2600 mm (W×H), without frame, aluminium alloy window frame, orange colour, door head and two batten on both sides white colour.Emergency door1 units, 650×1800mm (W×H), colour: white.BasementGalvanized steel assemble, 300mm high, quadrate steel support, 2 rows grilles made by flat bar and twisted steel, galvanized, 3 rows indented plate, silver colour, 2 ramps, 750×2000mm/pc, silver colour.Wall panelThickness: 50mm, width:1150mm, tongue and groove structure, 0.376mm colour steel with EPS inside, colour: white.LightCeiling Lights: 8Units×4Pcs=32Pcs×36W, side lights: 8Units×2Pcs=16Pcs×18W, with electronic ballasts, lighting boxes are powered coated, illumination  ≥ 1000LUXGenerator cabinetIntake from back upper, exhaust from rear upper, galvanized steel frame; white machine-made panel covered, filled with heat preservation material inside.Intake and Exhaust systemInlet:1×7.5KW turbo fan, air capacity for each fan: 25000m 3 / h.Outlet: 1×7.5KW turbo fan, air capacity for each fan: 25000m3/h. Manual damper, 4m ducts, 1 pcs 90 0  bend, 1 pcs 30 0  bend.Heating systemItaly RIELLO G20 diesel burner, stainless steel heat exchanger, pneumatic damper actuates from spraying to baking cycle. Max. heating productivity: 200000kcal/h, max temperature: 80 degree  4pcs chimney, 1 pcs bend.Purification systemPre-filter, ceiling filter, fibreglass filter, activated carbon filter.RoofGalvanized steelControl systemSpraying, heat spraying, baking, time setting, lighting switch, failure indicator, thermostat, power supply switch, emergency stop, all motors is normal start.Total power17.5KW (Power supply  1×220V, 3×380V, 50HZ)

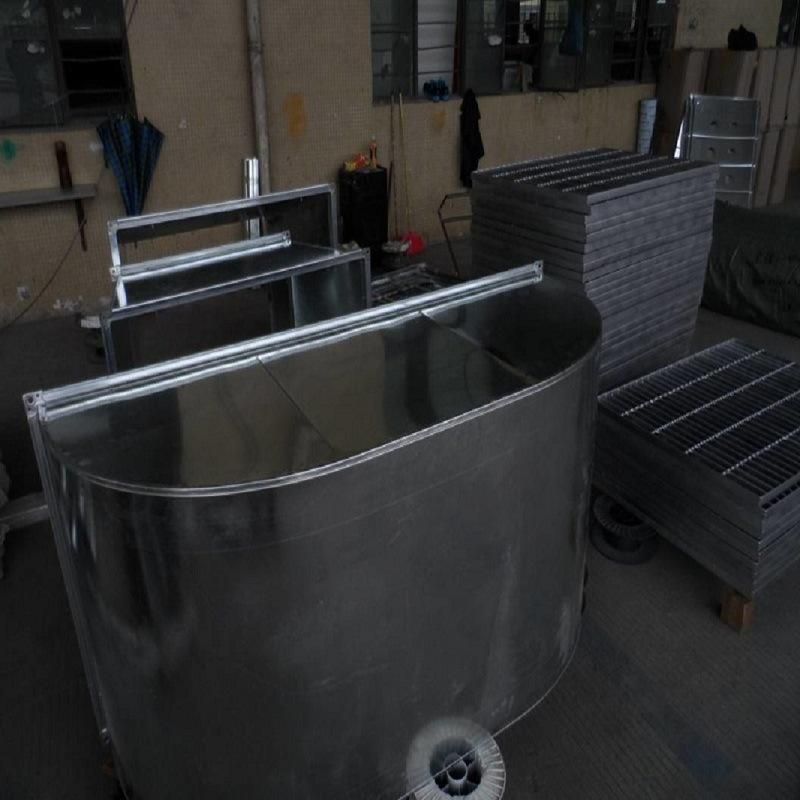

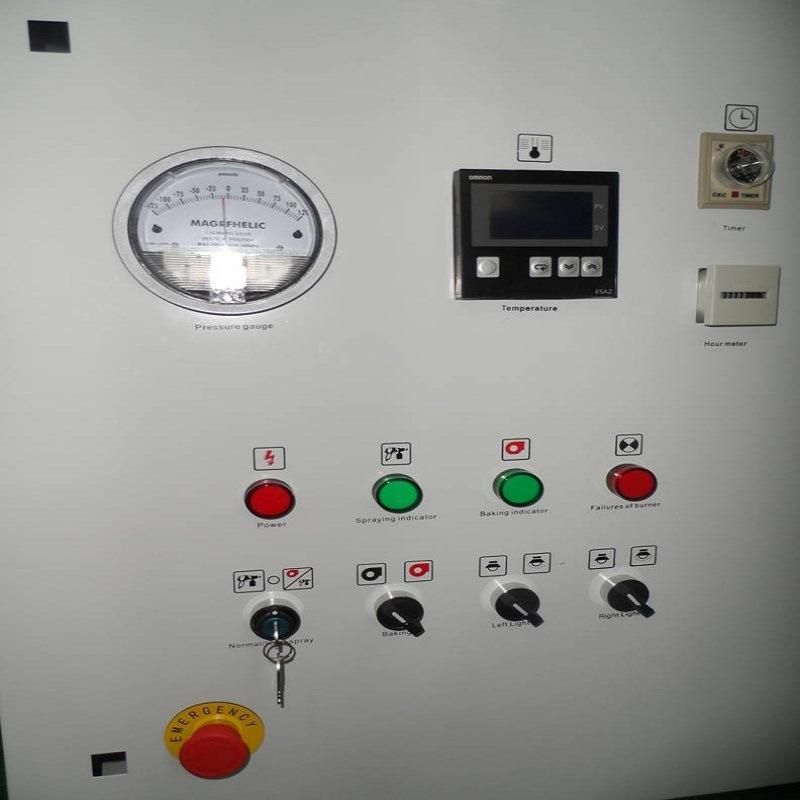

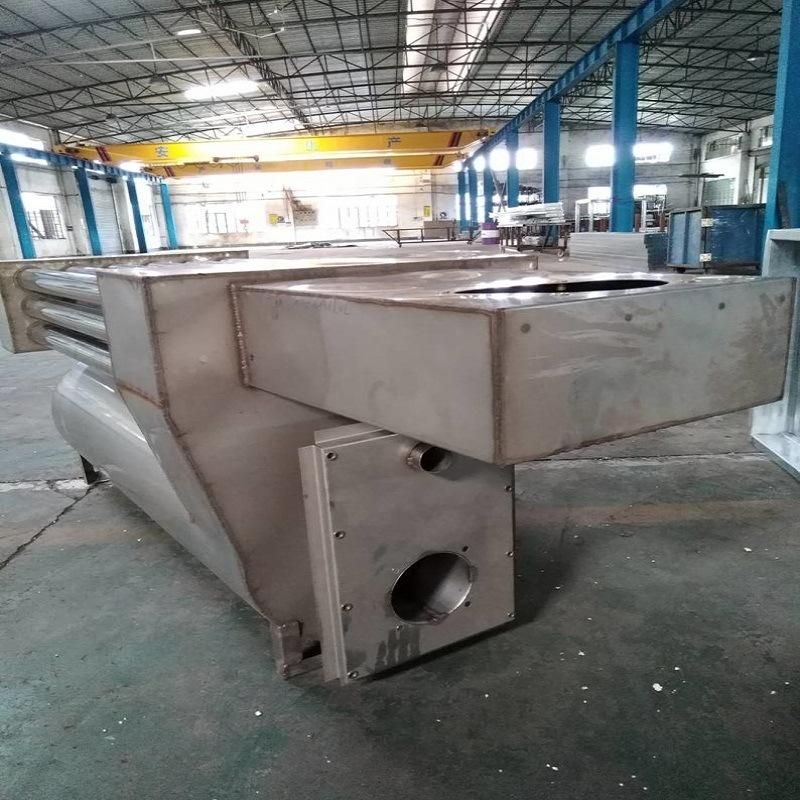

Parts details:

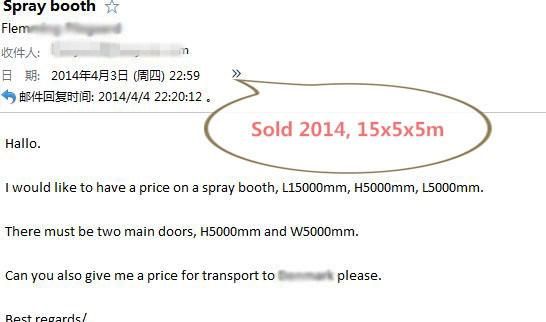

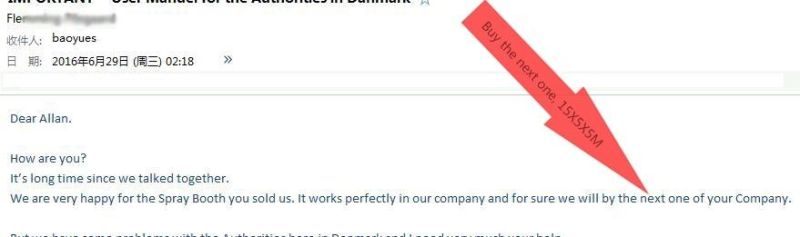

What customers saying:

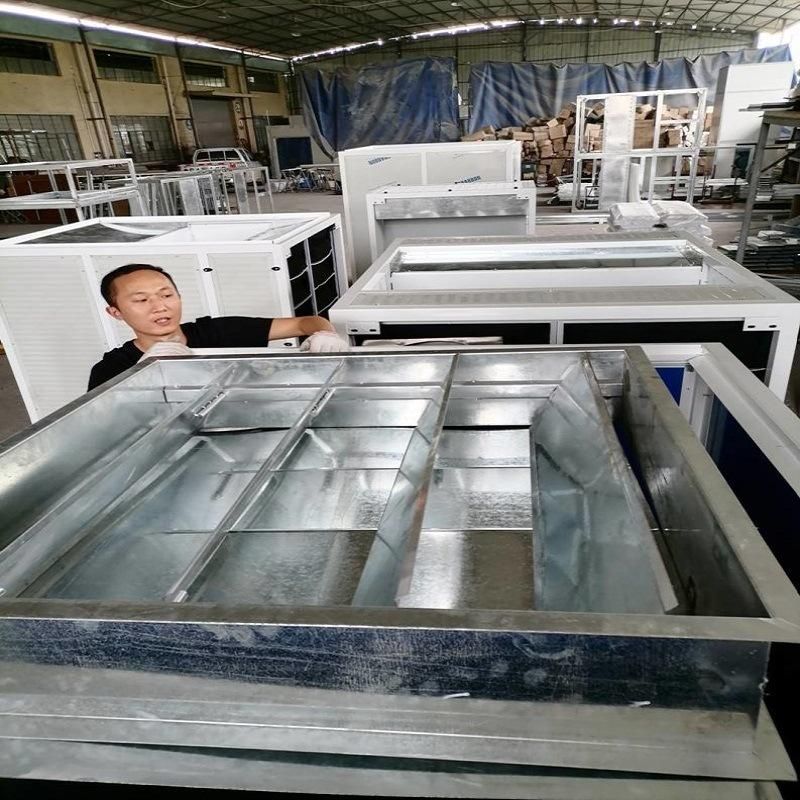

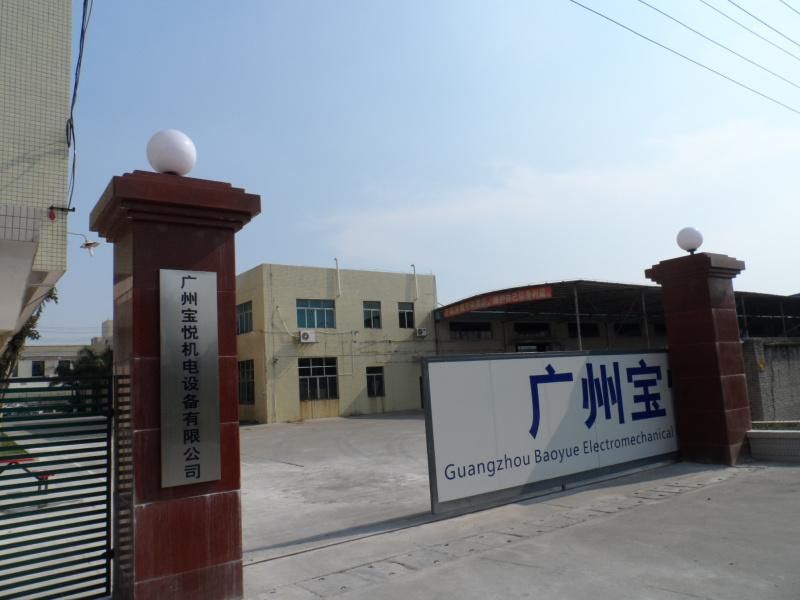

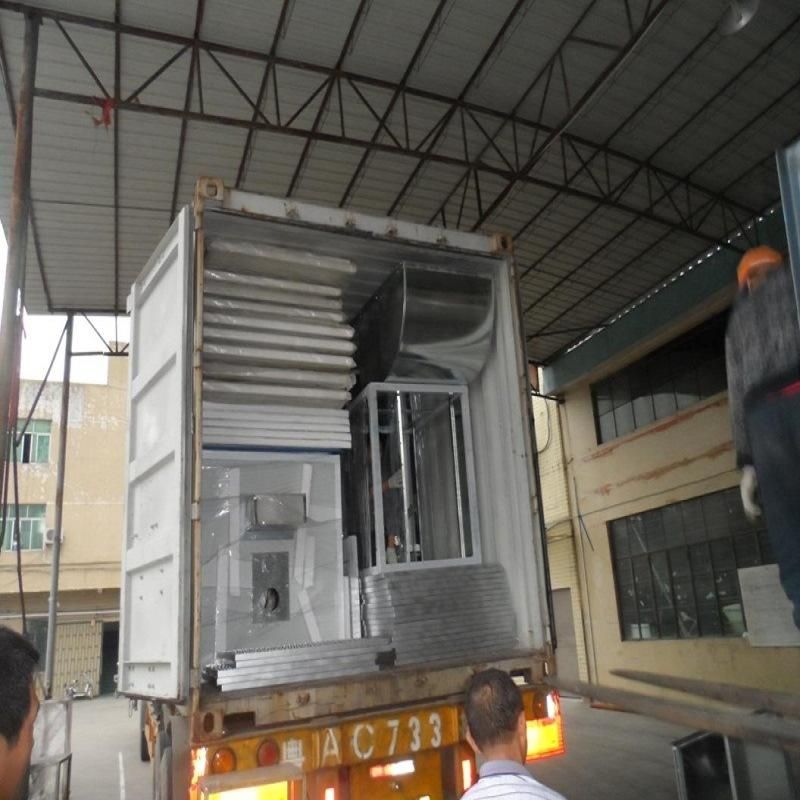

Factory show:
