• Model NO.：BY-23-5
• Brand：Baoyues
• Coating：Painting
• Airflow Direction：Cross-flow Type
• Heating Mode：Diesel
• Paint Mist Treatment：Dry-type
• Condition：New
• Function：Spraying and Baking
• Lights：LED
• Fan：Turbo Fan
• Control：Schneider Components
• Transport Package：Spray Booth Standard Export Package
• Specification：CE, CCS, TUV, SGS
• Trademark：Baoyues
• Origin：China
• HS Code：84198990
• Production Capacity：90units,Month
• Package size per unit product：2300.00cm * 500.00cm * 500.00cm
• Gross weight per unit product：20000.000kg

Basic Info.

Model NO. BY-23-5 Brand Baoyues Coating Painting Airflow Direction Cross-flow Type Heating Mode Diesel Paint Mist Treatment Dry-type Condition New Function Spraying and Baking Lights LED Fan Turbo Fan Control Schneider Components Transport Package Spray Booth Standard Export Package Specification CE, CCS, TUV, SGS Trademark Baoyues Origin China HS Code 84198990 Production Capacity 90units/Month

Packaging & Delivery

Package size per unit product 2300.00cm * 500.00cm * 500.00cm Gross weight per unit product 20000.000kg

Product Description

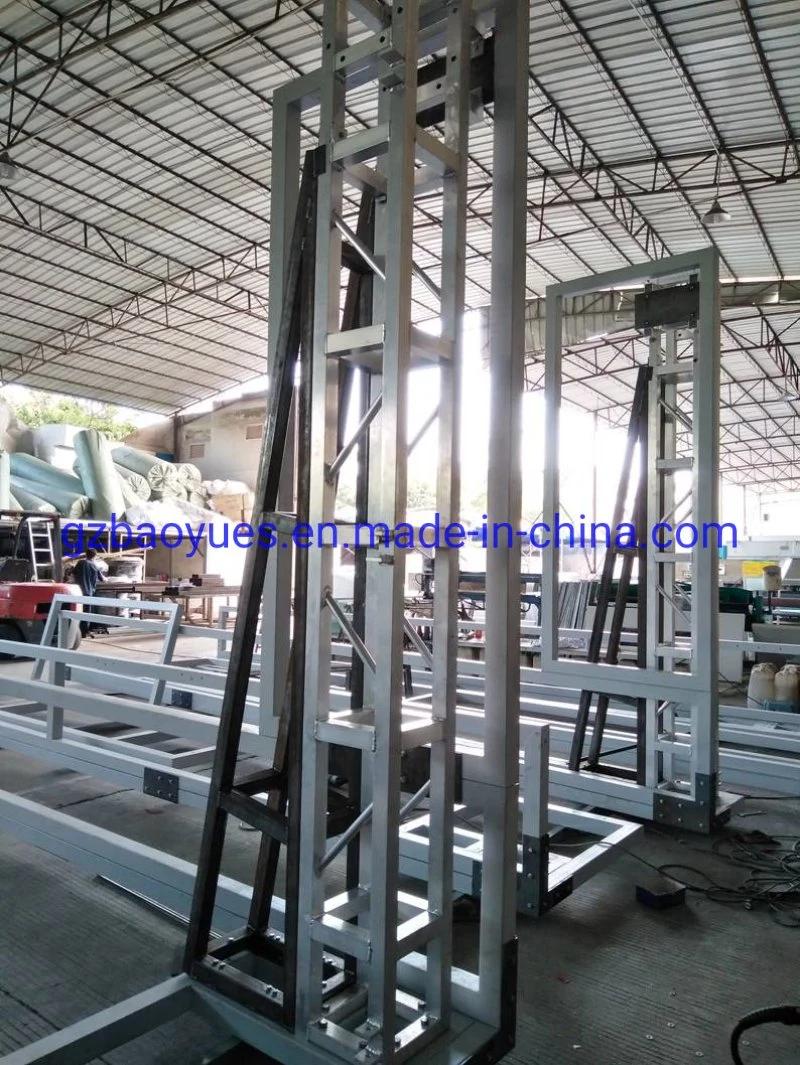

Paint Booth with 3D Lift Platform
1, CE approved
2, Spray booth professional manufacturer
3, Paint Spray Booth, suitable for bus and truck
4, Excellent painting and baking effect
5, Timely delivery
Can remake the design according to your request

Inside dimension	23000× 5000× 5000 mm  ( L× W× H )
Outside dimension	23144× 6896× 5600 mm  ( L× W× H )
Pits	2 rows of pits in the ground for exhaust air, dimension of each pit is 21000× 760mm(L× W), with galvanized grilles made by twisted steel and flat bar above.
Front door	With electrical roller shutter door
Emergency door	3 units, 800× 2000 mm (WXH), colour: white.
Room body	Profiled bar beams in the roof to strengthen the room body; wall panel thickness: 70mm, width: 1150mm, tongue and groove structure, 0.476mm colour steel with polystyrene(EPS) insulation inside, colour: white. With lift platform inside.
Light system	Ceiling Lights: 3 rows, with electronic ballasts. Side Lights: with electronic ballasts, vertically set, up and down interleaving installation.
Generator cabinet	Intake air from back upper direction, exhaust air from back upper direction galvanized steel molding frame; white coated steel outside, galvanized steel inside, filled with heat preservation material in the middle.
Intake and exhaust system (3 sets)	Intake: 6× 7.5KW double-intake centrifugal fans for intake air, model YDW4.5M, air capacity is 21000m 3 /h for each fan;   Exhaust: 3× 11KW double-intake centrifugal fans for exhaust air, with motor outside, belt-drive, model TAE-710H, air capacity is 36000m3/h for each fan. Equip manual dampers for exhaust air.

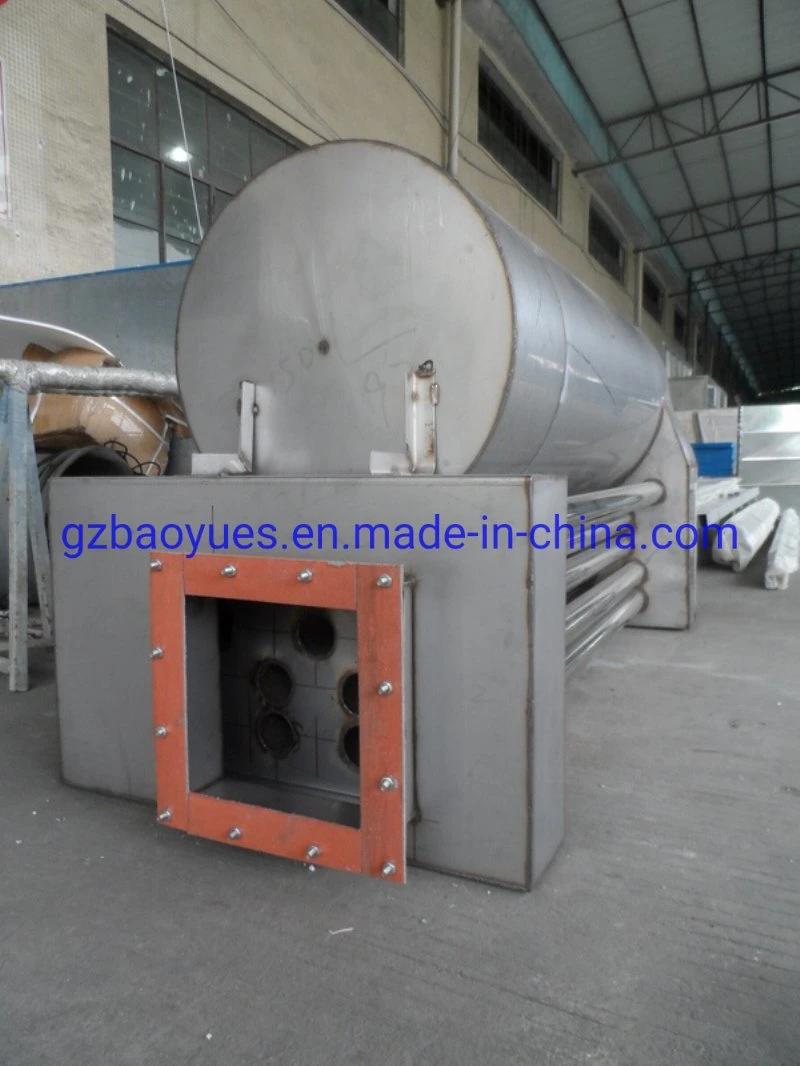

Heating system(3 sets)	3 units RIELLO RG5S diesel burners, heating productivity: 780000 Kcal/h, stainless steel heat exchanger, 3pcs pneumatic dampers actuate from spraying to baking cycle.

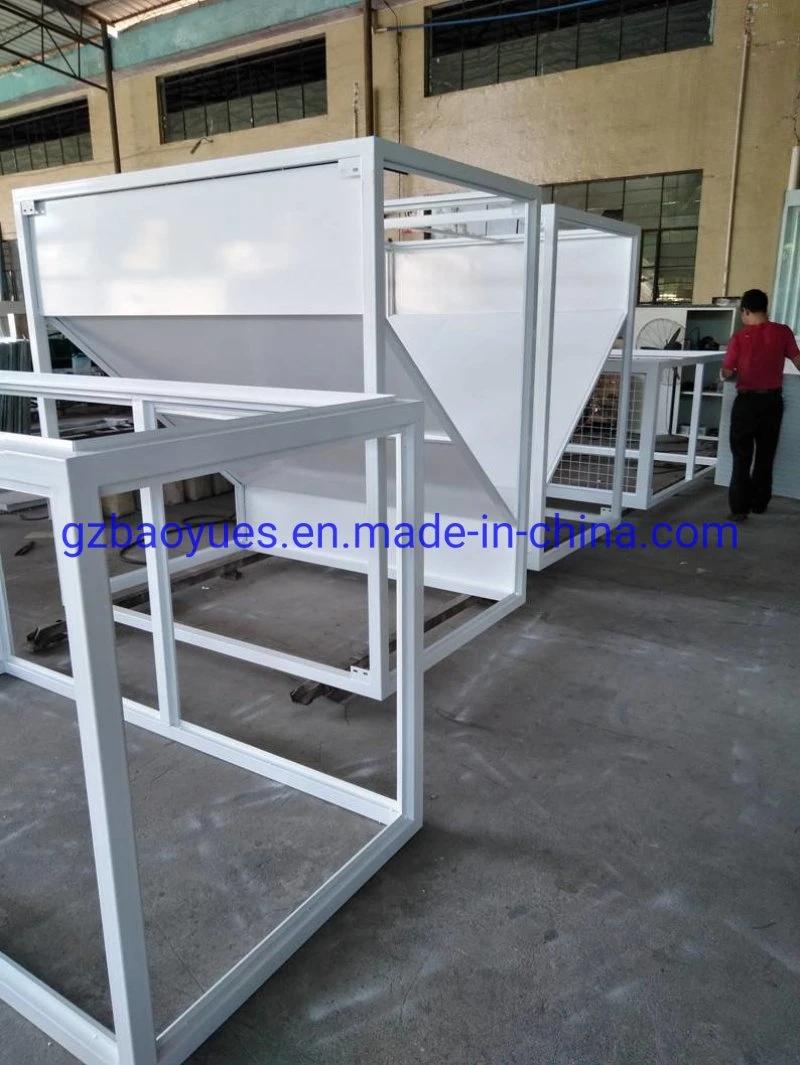

Purification system	Pre-filter, high efficiency filter(ceiling filter), exhaust fiberglass fiter, activated carbon filter.
Roof	50mm thick EPS heat insulation panels.
Control box	Spraying, heat spraying, baking, baking, time setting, lighting switch, failure indicator, thermostat, power supply switch, emergency stop, ampere meter, voltmeter, hours meter, temperature limit controller, pressure gauge. Exhaust star-delta motor start...
Total power	95KW
