Ce Certificate Dry Type Auto Preparation Areas for Vehicles with Rear Exhaust Plenum

Guangzhou Infitech Mechanical and Electrical Equipment Co., Ltd.
  • Type：Spray Booth
  • Certification：CE
  • Substrate：Steel
  • Coating：Powder Coating
  • Airflow Direction：Cross-flow Type
  • Paint Mist Treatment：Dry-type

Base Info

  • Model NO.：IT-PREP-6500
  • Condition：New
  • Extraction Area：3.2m2
  • Lights：LED Lamp
  • Filters：High Efficiency Filters
  • Air Volume：18,000m3,H
  • Fan：Direct-Drive Big Impeller Fan
  • Plenum：600mm High
  • Warranty：2 Years
  • Noise：<78dB
  • Motor：5.5kw, Siemens
  • Inverter：Yes
  • Rated Power：10kw
  • Usage：Sanding, Prepping
  • Back Walls：Powder Coated Galvanized Steel

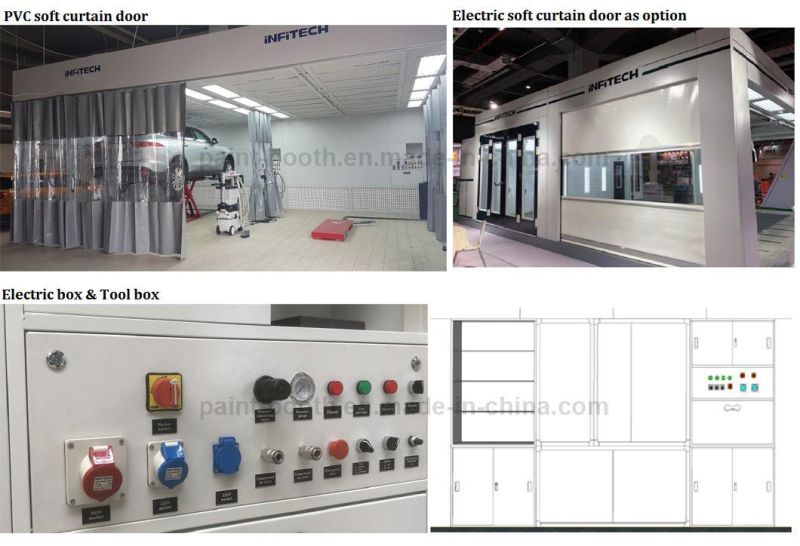

  • PVC Soft Curtain：Manual Curtains

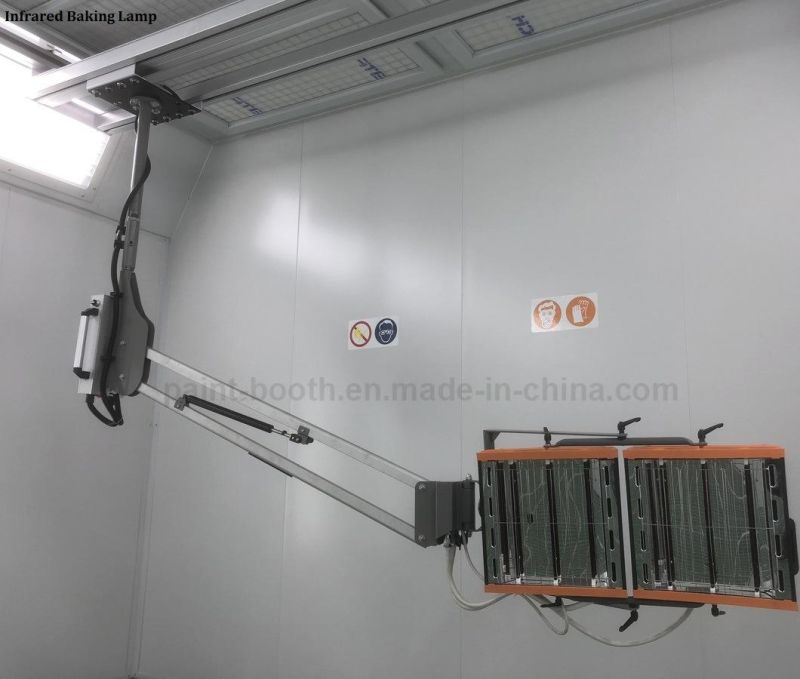

  • Infrared Baking Lamp：Option
  • Transport Package：Polyfoam and Metal Frame
  • Specification：6500*4000*3000mm
  • Trademark：INFITECH
  • Origin：Guangzhou, China
  • HS Code：8419899090
  • Production Capacity：1000 Pieces,Year

Description

CE Certified Automotive Preparation AreasITEMSSPECIFICATIONSDesign standardBS EN 13355: 2004+A1:2009
BS EN 60204: 2006+A1:2009Internal dimensions 6500 X 4000 X 3000mm (L X W X H)External dimensions7960 X 4075 X 3660mm (L X W X H)AirflowRear Semi DowndraftPlenum600mm highExtractionThrough exhaust plenum chambersExtraction area3.2m2PVC soft curtain door4 sets, 3450 X 2900mm (W X H)

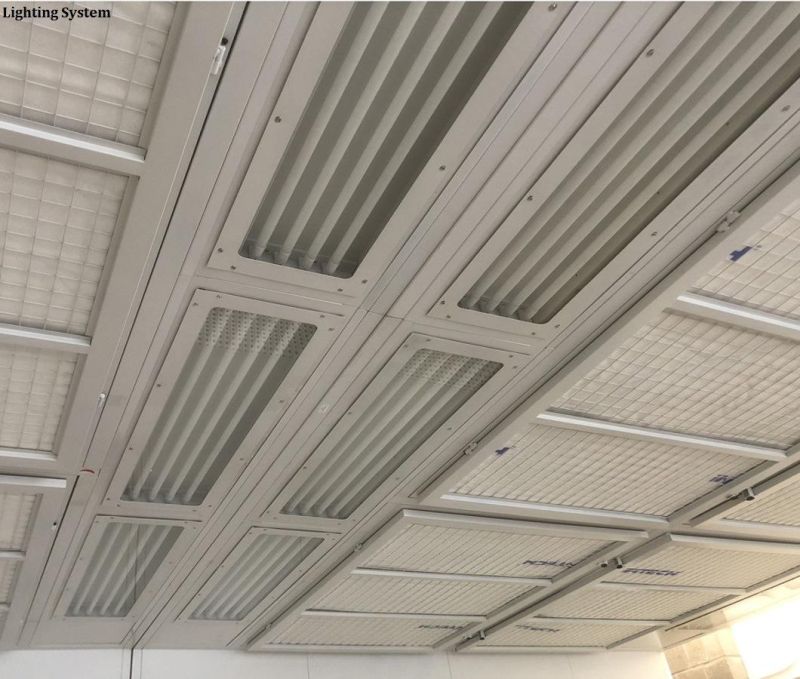

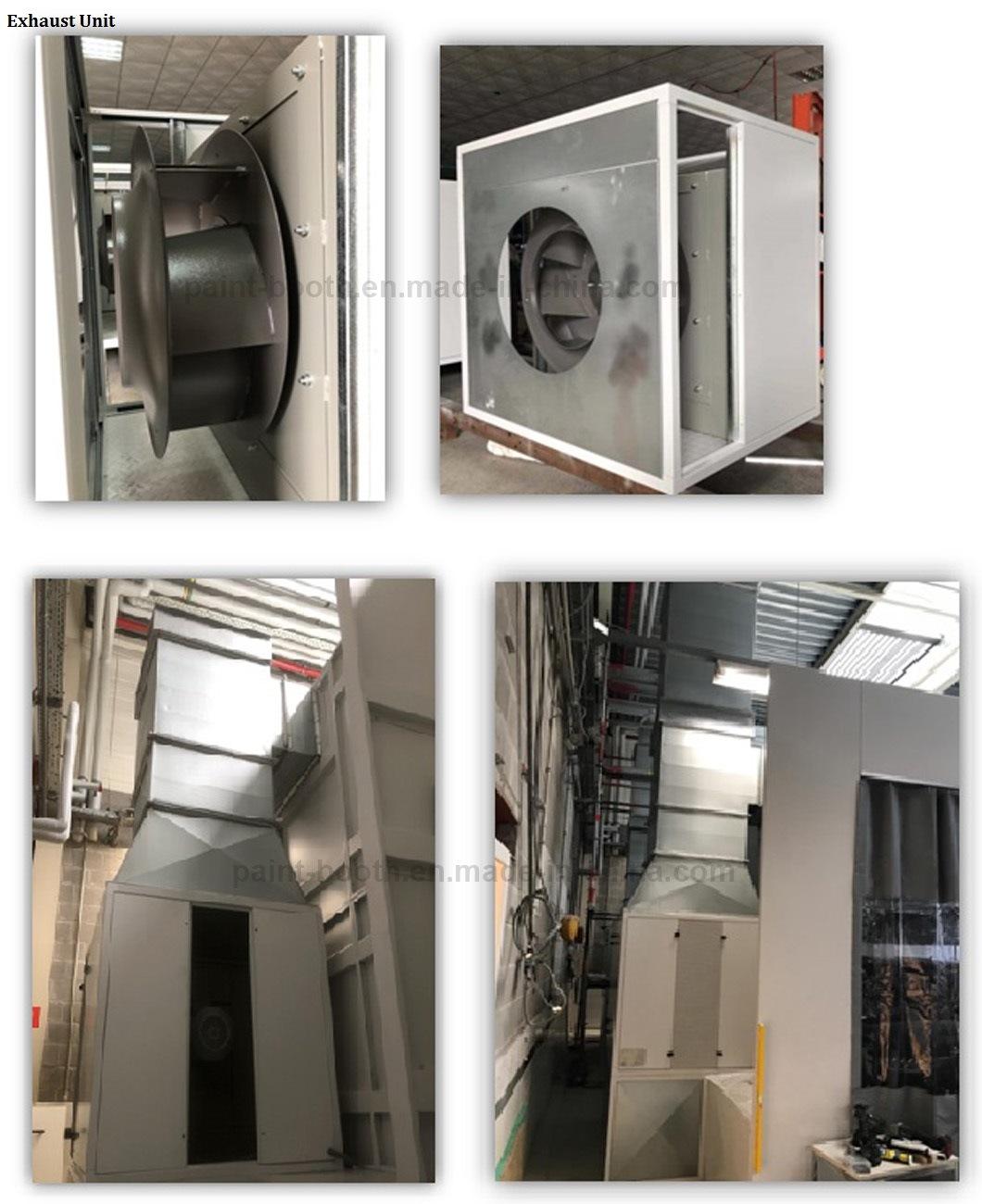

1 set, 4200 X 2900mm (W X H)Back wallGalvanized steel sheetCeiling lighting (LED)8 sets, each 4 X 18W, 576W totalBrightness>800LUXFiltersHigh efficiency ceiling filter, floor filter, exhaust filterExhaust unitDirect-type turbine fan, 1 X 5.5KW SIEMENS motorAir volume18,000m3/hControlsCE standard control boxInverterYes, inverter controlRated power10KW
3. Details

Ce Certificate Dry Type Auto Preparation Areas for Vehicles with Rear Exhaust Plenum
Ce Certificate Dry Type Auto Preparation Areas for Vehicles with Rear Exhaust Plenum
Ce Certificate Dry Type Auto Preparation Areas for Vehicles with Rear Exhaust Plenum
Ce Certificate Dry Type Auto Preparation Areas for Vehicles with Rear Exhaust Plenum

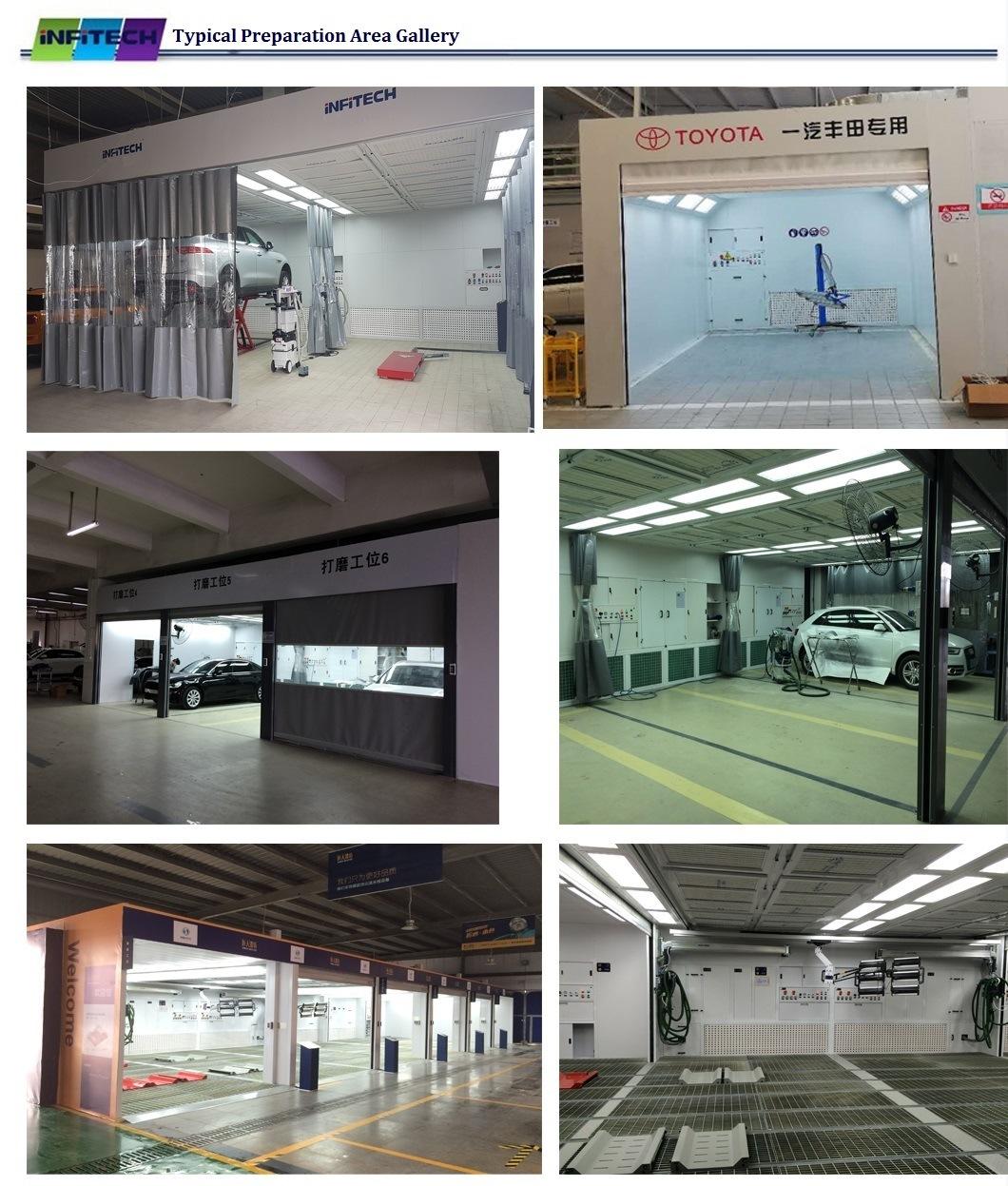

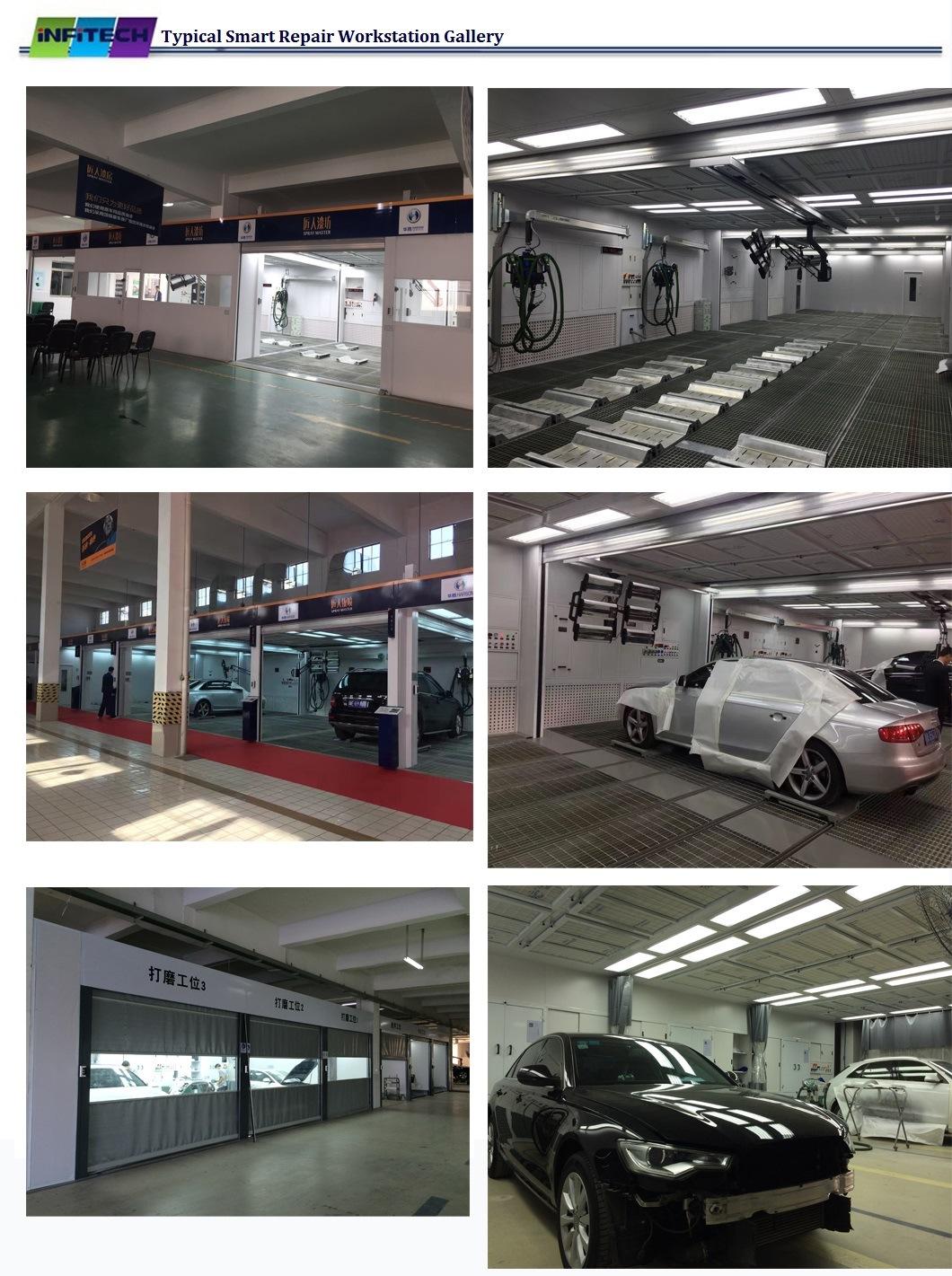

4. Typical projects

Ce Certificate Dry Type Auto Preparation Areas for Vehicles with Rear Exhaust Plenum
Ce Certificate Dry Type Auto Preparation Areas for Vehicles with Rear Exhaust Plenum
5. Packaging and Loading
Ce Certificate Dry Type Auto Preparation Areas for Vehicles with Rear Exhaust Plenum

6. Company Profile
GUANGZHOU INFITECH is professional provider of painting workshop solutions. INFITECH specializes in CE certified spray booth, offering complete solution including design and layout, manufacturing, installation and maintenance. We take pride in delivering professional and ideal solution that best suits specific requirements, while maximize profits for shop owners.

Ce Certificate Dry Type Auto Preparation Areas for Vehicles with Rear Exhaust Plenum
