Auto Spray Booth/Car Painting Equipment with Car Jack for Auto Body Shop
Guangzhou Infitech Mechanical and Electrical Equipment Co., Ltd.- After-sales Service：24 Hours After Service
- Warranty：2 Years
- Type：Spray Booth
- Certification：CE
- Substrate：Steel
- Brand：Infitech
Base Info
- Model NO.：IT-PREP-6500
- Coating：Powder Coating
- Airflow Direction：Cross-flow Type
- Paint Mist Treatment：Dry-type
- Condition：New
- Extraction Area：3.2m2
- Lights：LED Lamp
- Filters：High Efficiency Filters
- Air Volume：18,000m3,H
- Fan：Direct-Drive Big Impeller Fan
- Plenum：600mm High
- Noise：<78dB
- Motor：5.5kw, Siemens
- Inverter：Yes
- Rated Power：10kw
- Usage：Sanding, Prepping
- Back Walls：Powder Coated Galvanized Steel

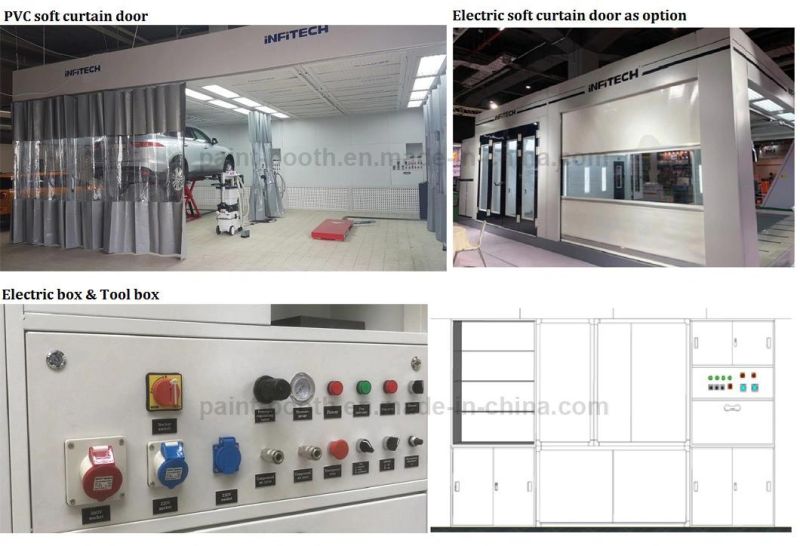

- PVC Soft Curtain：Manual Curtains

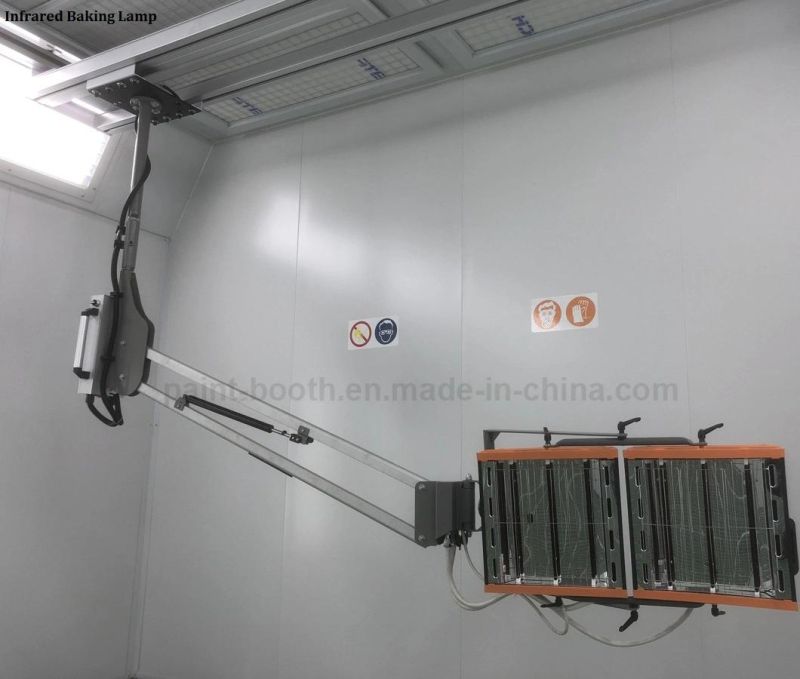

- Infrared Baking Lamp：Option
- Transport Package：Polyfoam and Metal Frame
- Specification：6500*4000*3000mm
- Trademark：INFITECH
- Origin：Guangzhou, China
- HS Code：8419899090
- Production Capacity：1000 Pieces,Year
Description
Auto Spray Booth/Car Painting Equipment With Car Jack for Auto Body ShopITEMS SPECIFICATIONS Design standard BS EN 13355: 2004+A1:2009
BS EN 60204: 2006+A1:2009 Internal dimensions 6500 X 4000 X 3000mm (L X W X H) External dimensions 7960 X 4075 X 3660mm (L X W X H) Airflow Rear Semi Downdraft Plenum 600mm high Extraction Through exhaust plenum chambers Extraction area 3.2m2 PVC soft curtain door 4 sets, 3450 X 2900mm (W X H)

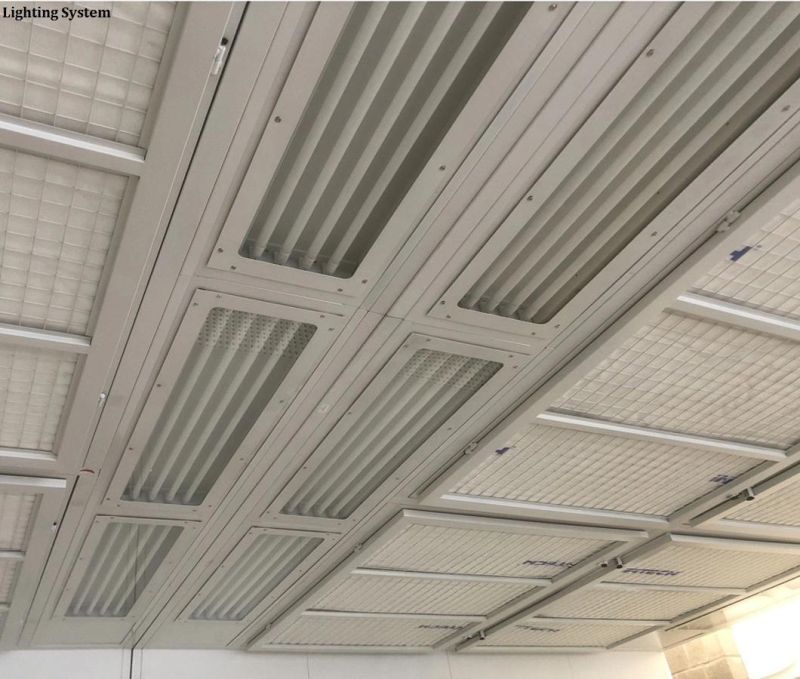

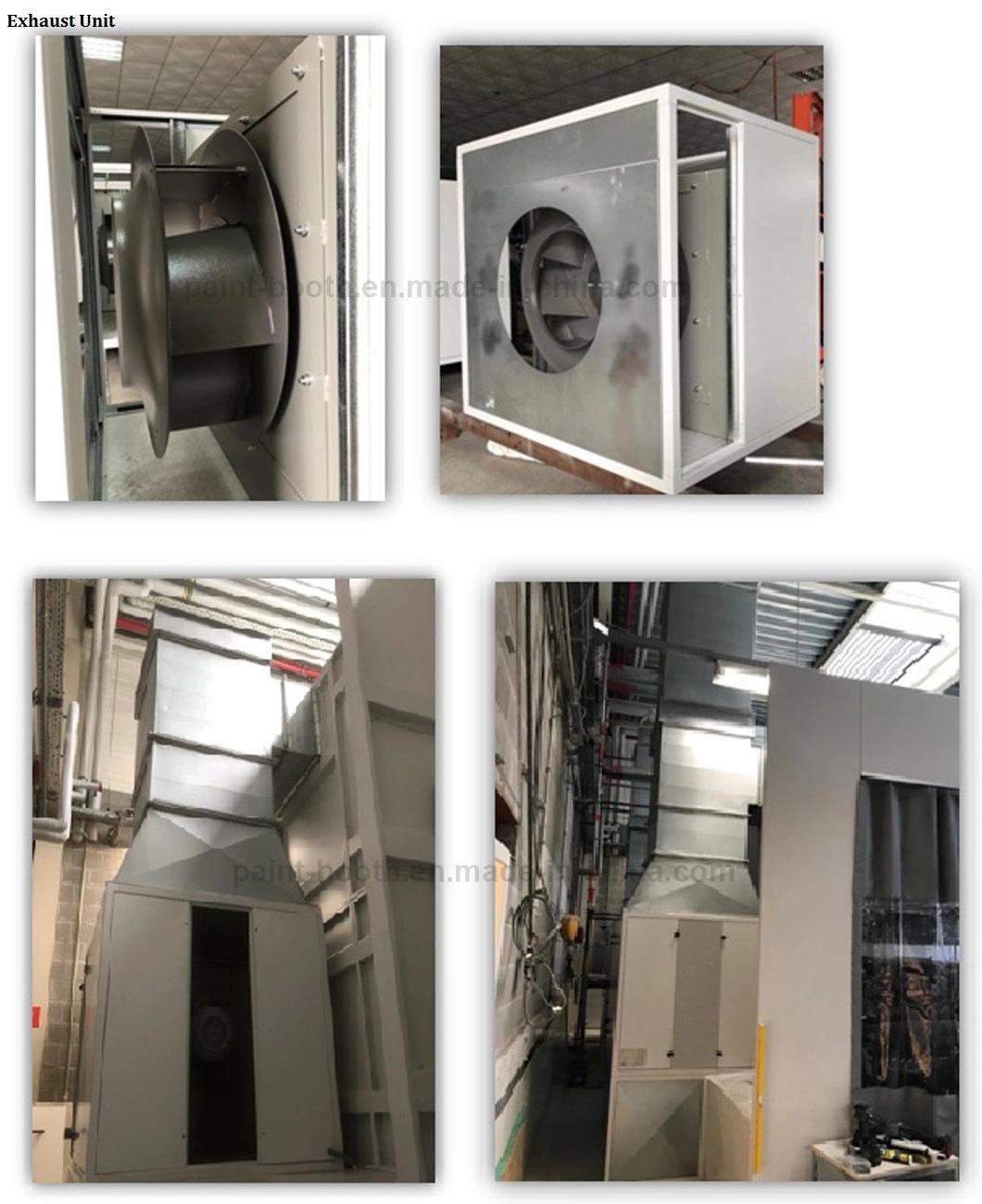

1 set, 4200 X 2900mm (W X H) Back wall Galvanized steel sheet Ceiling lighting (LED) 8 sets, each 4 X 18W, 576W total Brightness >800LUX Filters High efficiency ceiling filter, floor filter, exhaust filter Exhaust unit Direct-type turbine fan, 1 X 5.5KW SIEMENS motor Air volume 18,000m3/h Controls CE standard control box Inverter Yes, inverter control Rated power 10KW
3. Details

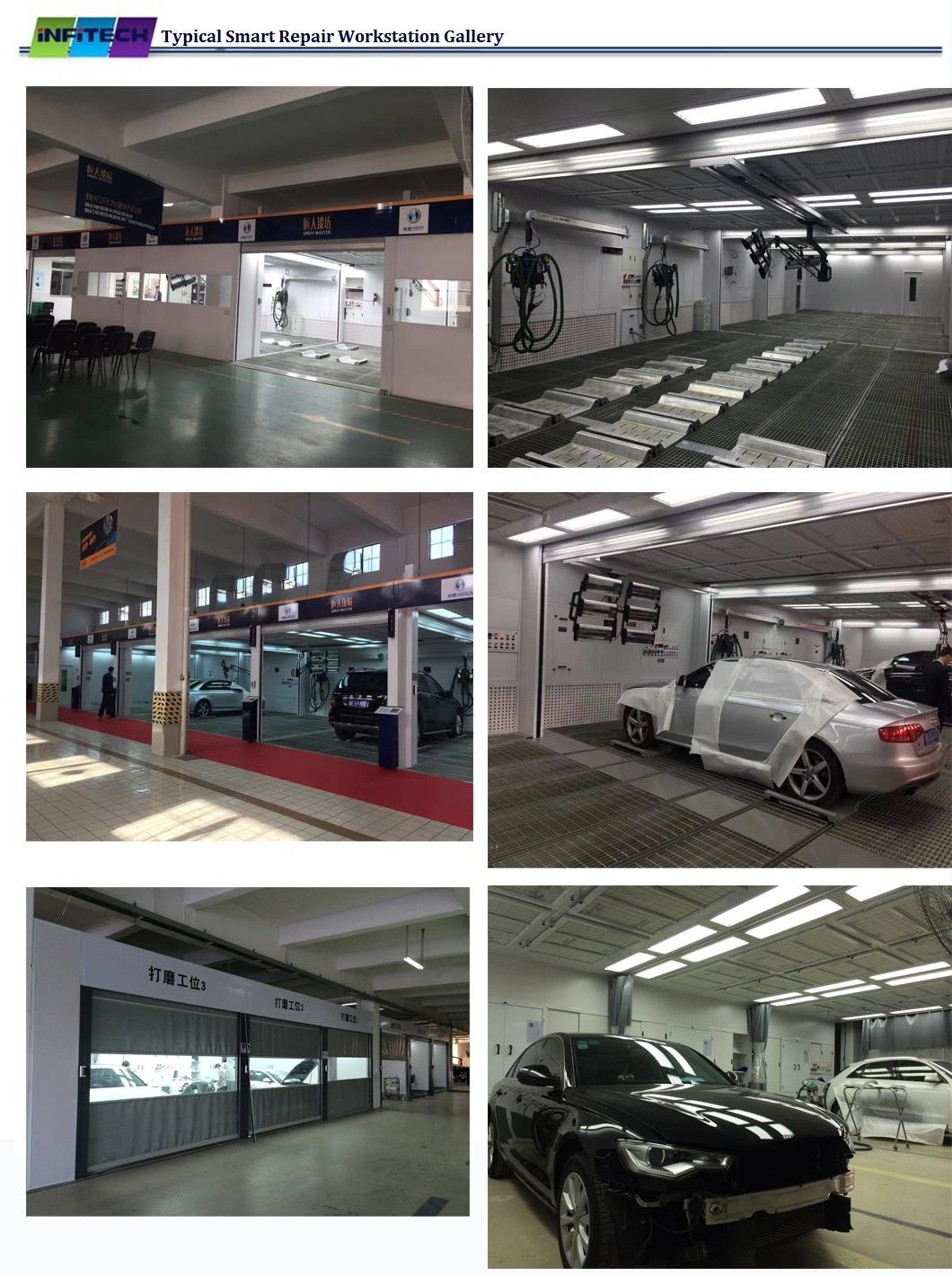

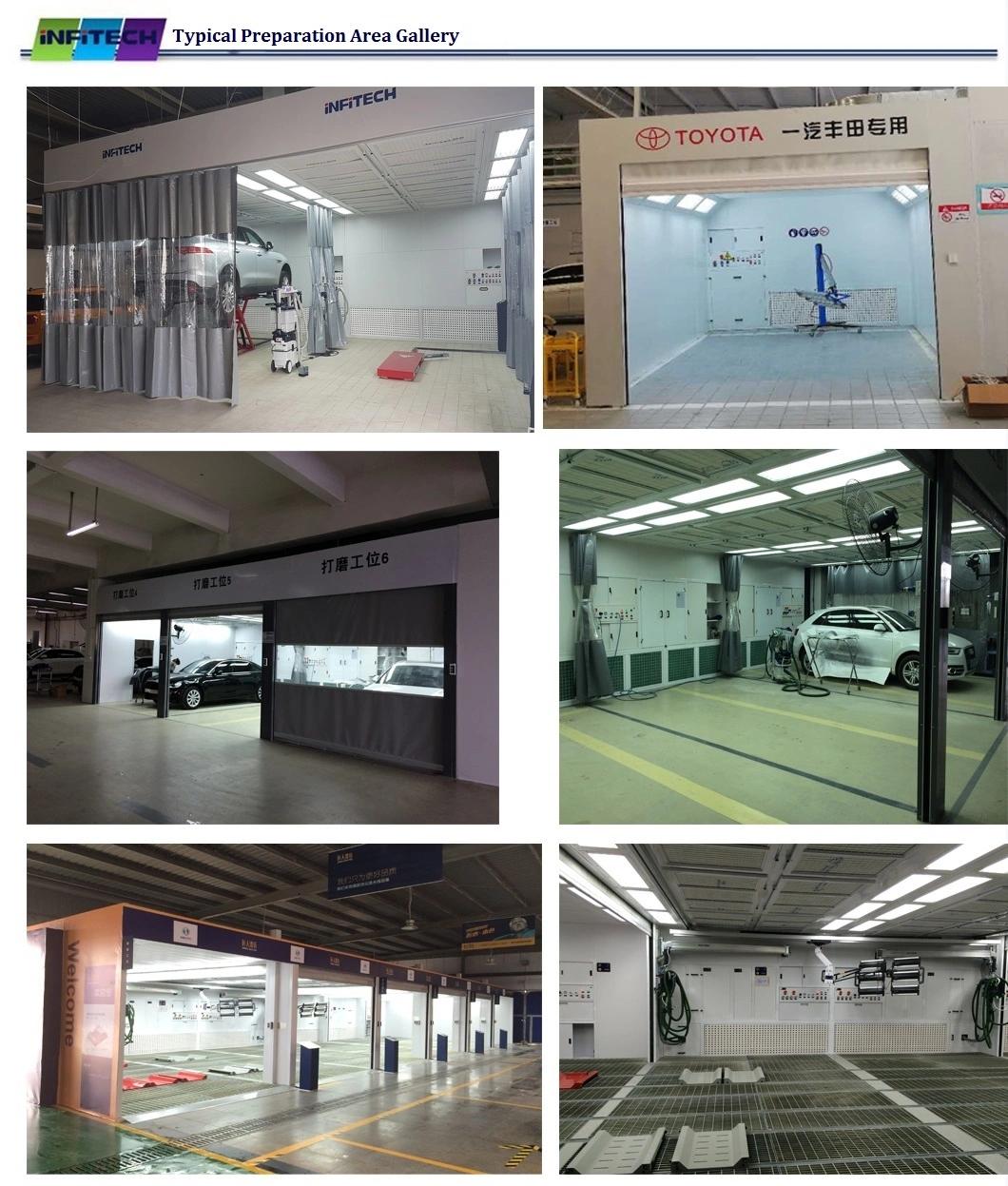

4. Typical projects

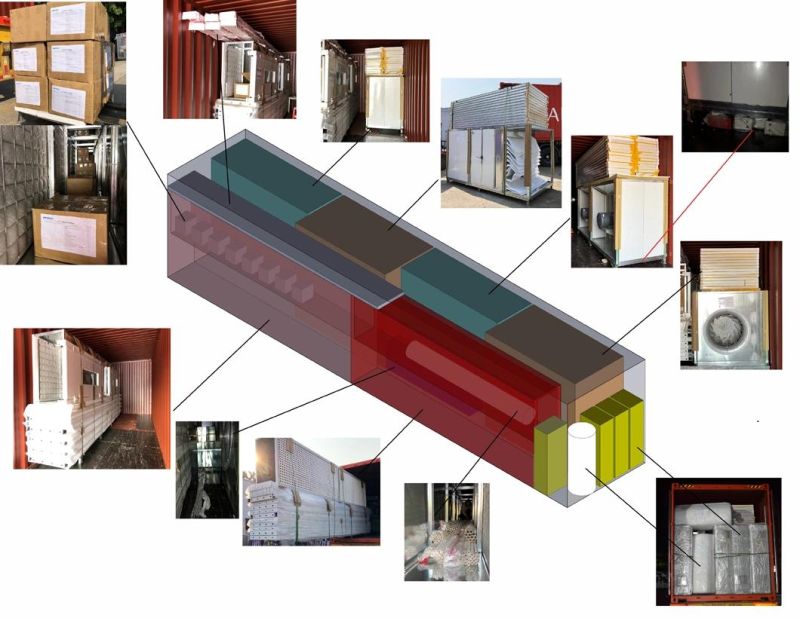

5. Packaging and Loading

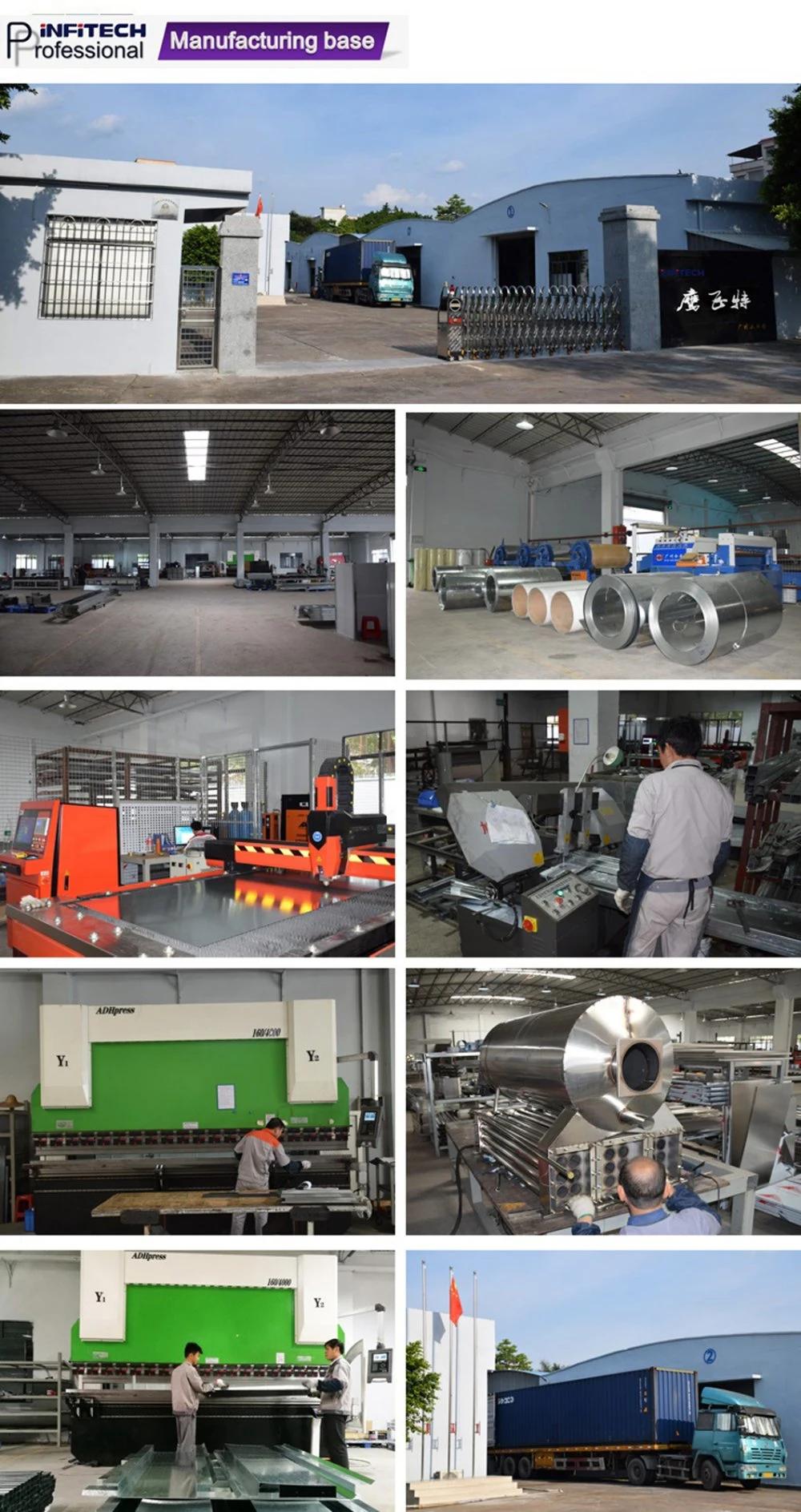

6. Company Profile
GUANGZHOU INFITECH is professional provider of painting workshop solutions. INFITECH specializes in CE certified spray booth, offering complete solution including design and layout, manufacturing, installation and maintenance. We take pride in delivering professional and ideal solution that best suits specific requirements, while maximize profits for shop owners.
Welcome to send your inquries. :-)
