• Model NO.：customized 500A
• Certification：CE
• Substrate：Steel
• Brand：Captain
• Coating：Painting
• Airflow Direction：Cross-flow Type
• Heating Mode：Electric
• Paint Mist Treatment：Dry-type
• Condition：New
• Outside Dimension：7900X5550X4200mm(L*W*H)
• Inside Dimension：7800X4200X3400 mm(L*W*H)
• Front Door：3000mm*2600mm
• Service Door：700X2000mm, 1 Unit
• Vehical Suited：Small Car Around 5m Long
• Ventilation Type：Full Downdraft
• Wall Panel：50mm EPS Panel, 0.4mm Steel
• Basement：300mm Depth with Grids, 3 Rows Grilles
• Air Intake：2 Sets 3kw Centrifugal Fan
• Exhausting Fan：1X4kw(Optional)
• Air Speed：0.3-0.35m,S
• Heating System：Italy Riello G20 Diesel Burner
• Lightening System：4X8units Ceiling Lights
• Voltage：as Required
• Certificate：CE
• Transport Package：Export Container ,Pallet ,Disassembly with Carton
• Specification：CE, SGS, ISO
• Trademark：OEM,Captain
• Origin：Jiangsu, China.
• HS Code：842489990
• Production Capacity：300sets,Month
• Package size per unit product：700.00cm * 535.00cm * 340.00cm
• Gross weight per unit product：3500.000kg

Basic Info.

Model NO. customized 500A Certification CE Substrate Steel Brand Captain Coating Painting Airflow Direction Cross-flow Type Heating Mode Electric Paint Mist Treatment Dry-type Condition New Outside Dimension 7900X5550X4200mm(L*W*H) Inside Dimension 7800X4200X3400 mm(L*W*H) Front Door 3000mm*2600mm Service Door 700X2000mm, 1 Unit Vehical Suited Small Car Around 5m Long Ventilation Type Full Downdraft Wall Panel 50mm EPS Panel, 0.4mm Steel Basement 300mm Depth with Grids, 3 Rows Grilles Air Intake 2 Sets 3kw Centrifugal Fan Exhausting Fan 1X4kw(Optional) Air Speed 0.3-0.35m/S Heating System Italy Riello G20 Diesel Burner Lightening System 4X8units Ceiling Lights Voltage as Required Certificate CE Transport Package Export Container /Pallet /Disassembly with Carton Specification CE, SGS, ISO Trademark OEM/Captain Origin Jiangsu, China. HS Code 842489990 Production Capacity 300sets/Month

Packaging & Delivery

Package size per unit product 700.00cm * 535.00cm * 340.00cm Gross weight per unit product 3500.000kg

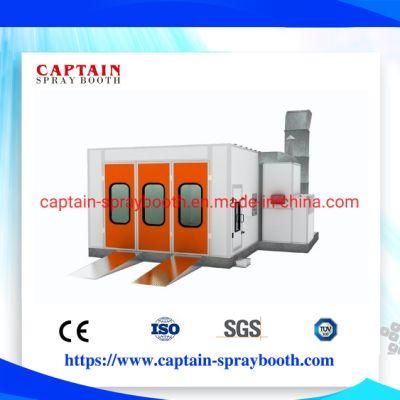

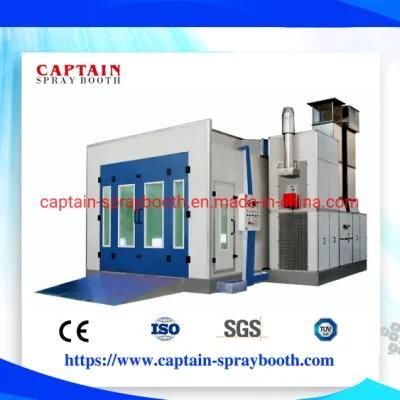

Product Description

This model is for Truck /bus,we also can design the booth according to your requirements,just tell me your need,our engineer will give you the best solution.

Inside Dimension	7800x4200x3400 mm(L×W×H)
Outside Dimension	7900x5550x4200mm(L×W×H)
Front Door	3000×2600 mm(W×H), 3 folds
Service Door	750×1800mm(W×H), 1 unit
Basement	Galvanized steel, 300mm high, 2 rows of grilles and 3 rows of diamond plate; 2pcs painted ramps, 1pc stair.
Wall Panel	50mm thick EPS panel with double 0.326 steels, width: 950mm, tongue and groove interlock structure.
Intake&Exhaust System	Inlet: 2×5.5KW centrifugal fan, air capacity: 30000m3/h. Outlet:1×7.5KW axial fan,air capacity:21000 m3/h.
Lighting System	Ceiling Lights: 8units×4pcs=32pcs×36W, with electronic ballasts, illumination≥80
Heating System	3kw x 9 groups of fixed short infrared lamps on both sides, total is 27kw. Max temperature: 80ºC
Purification System	Pre-filter, ceiling filter, fiberglass filter, activated carbon filter
Controlling System	spray&baking switch, time setting, lighting switch, temperature controller, power supply switch, emergency stop, breakdown alarm, etc.
Total Power	36 KW

Basic Draw----we can make draw according to your need and your installation place


Production----every step we do is according to our draw, we have all kinds of advanced machines to make production precise

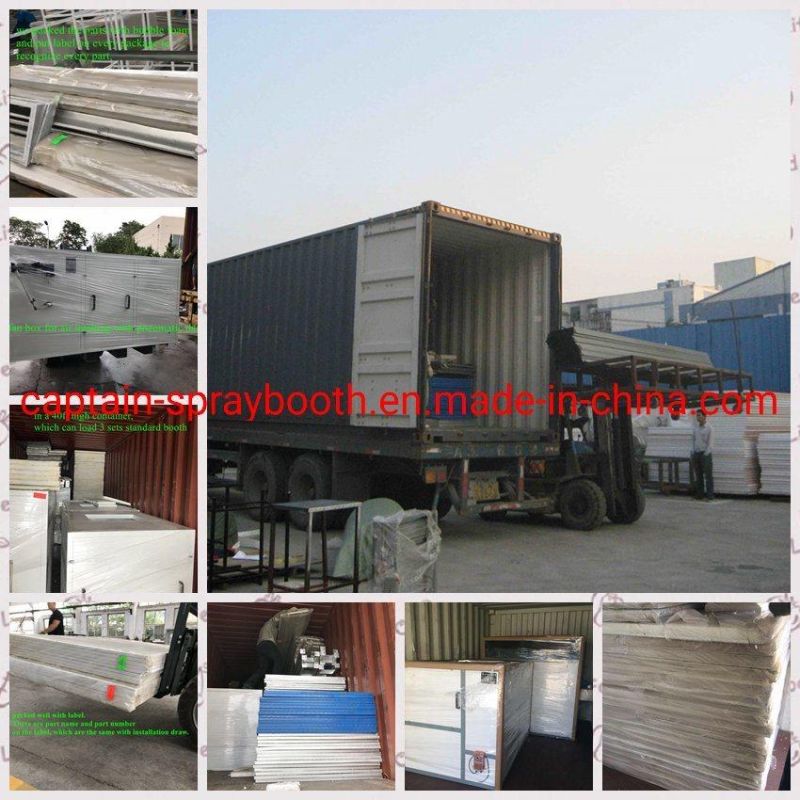

Package and Delivery----every package has a lable, we put part name and number on it. If 3 sets in one high container, we will have 3 different colors of lable for differentiate every ste.

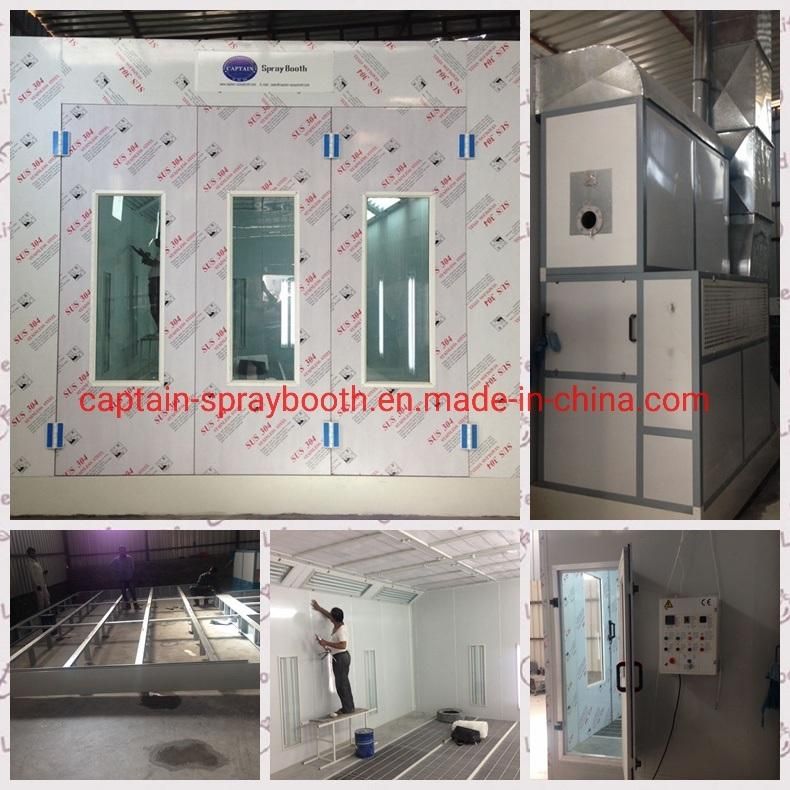

Installation----We can give you installation draw to guide you assemble step by step, and we also have installation vedio on Youtube.

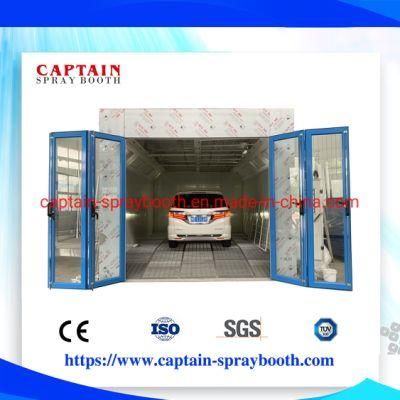

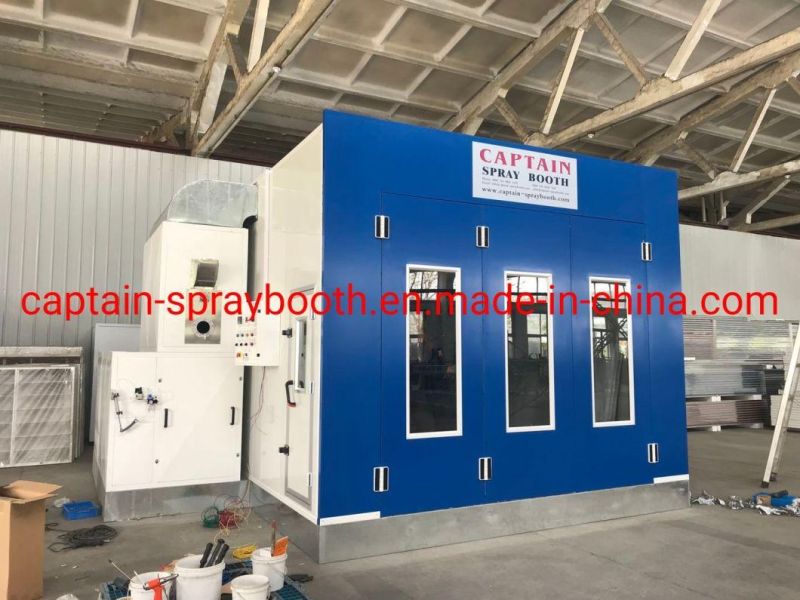

Real pictures of Installed Model----This is the model we installed ourself for testing, it works very well.

The installed models by our customers

Parts

High desensity wall panel, two men stand on it, it will not bend.


Stainless steel heat exchanger, we make ourself, our worker is professional, there is no leaking and strong enough.



Our control box is with SCHNEIDER parts

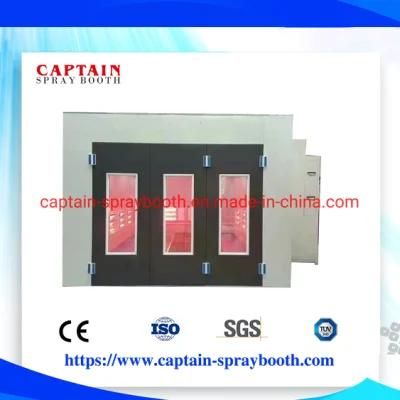

Different Colors for your choice

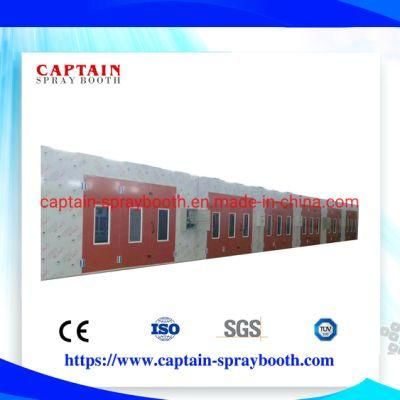

Workshop---- pictures for our workshop and stock, you  can see we have standard workshop and machine for producing, and enough stock for ensuring fast delivery



Factory View





Sincerely hope can get your inquiry and warmly welcome to our factory!
I'm just here waiting for you!

Introduction of our company

Captain Spray Booth(Qingdao Hua Yushun Commercial Co., Ltd)
Is a professional manufacturer of different kinds of spraybooth and we can customize according to your need and place. And also offering full garage equipments, such as following:

Car care equipment.

Car spray&baking room system

Bus spray&baking room system

Furnitue spray&baking room system

Industrial painting&baking room system

High temperature baking room system

Customized spray&bake booth and Offer car spray baking booth accossories


Services We Supply

Customized service

More Than 90% Of Our Spraying Booth Is Customized.

1. We can design the machines according your requirements. At the same time, our engineers will give you our professional suggestions.

2. We can give you free technical support and consultation such as design your factory, make the factory layout drawing and so on.

After-sales service

1. Our fast and professional after service engineer team can go to your factory and install the machine, give you the operating guidance, and train your employees until they can operate the machine well.

2. We often ask feedback and offer help to our customer whose machine have been used in their factory for some time.

3. We provide 2 years warranty.


Captain Advantages

*The same price higher quality, the same quality lower price! ! !
*2 years quality warranty! ! !
*Fast and stable supply capability! ! !
*Personalized design to meet customer various needs! ! !


Competitive Price and High Quality Spraying Booth with Perfect Service Is From Here.
