• Model NO.：HY-CB55C
• Certification：CCC, CE
• Substrate：Steel
• Brand：Hongyuan
• Coating：Painting
• Airflow Direction：Fully Undershot-type
• Heating Mode：Gas, LPG, LNG
• Paint Mist Treatment：Dry-type
• Condition：New
• Color：Red, Blue, White, Grey
• Panel：75mm Thickness EPS Foam Panel
• Grates：Full Grates
• Intake Fan：1set
• Exhaust Fan：1set
• Filter System：4-Stage Filtration
• Heating System：Gas, LPG, LNG
• Upper Lights：Available
• Side Lights：for Option
• Control Box：English Panel
• Control：Automatic
• Drawing：Available
• User Manual：Available
• Installation Video：Available
• Related Product：Large Truck Paint Spray Booth
• Transport Package：Standard Package for Sea Shipment
• Specification：26CBM for FCL
• Trademark：N,A
• Origin：Shandong, China
• Production Capacity：100 Set Per Month
• Package size per unit product：500.00cm * 200.00cm * 200.00cm
• Gross weight per unit product：1200.000kg

Basic Info.

Model NO. HY-CB55C Certification CCC, CE Substrate Steel Brand Hongyuan Coating Painting Airflow Direction Fully Undershot-type Heating Mode Gas, LPG, LNG Paint Mist Treatment Dry-type Condition New Color Red, Blue, White, Grey Panel 75mm Thickness EPS Foam Panel Grates Full Grates Intake Fan 1set Exhaust Fan 1set Filter System 4-Stage Filtration Heating System Gas, LPG, LNG Upper Lights Available Side Lights for Option Control Box English Panel Control Automatic Drawing Available User Manual Available Installation Video Available Related Product Large Truck Paint Spray Booth Transport Package Standard Package for Sea Shipment Specification 26CBM for FCL Trademark N/A Origin Shandong, China Production Capacity 100 Set Per Month

Packaging & Delivery

Package size per unit product 500.00cm * 200.00cm * 200.00cm Gross weight per unit product 1200.000kg

Product Description

Introduction of the Car paint booth/Spray booth for painting cars
1. full-down draft paint booth:
2. semi-down draft paint booth:
3. side-down draft paint booth:
4. cross-draft paint booth:

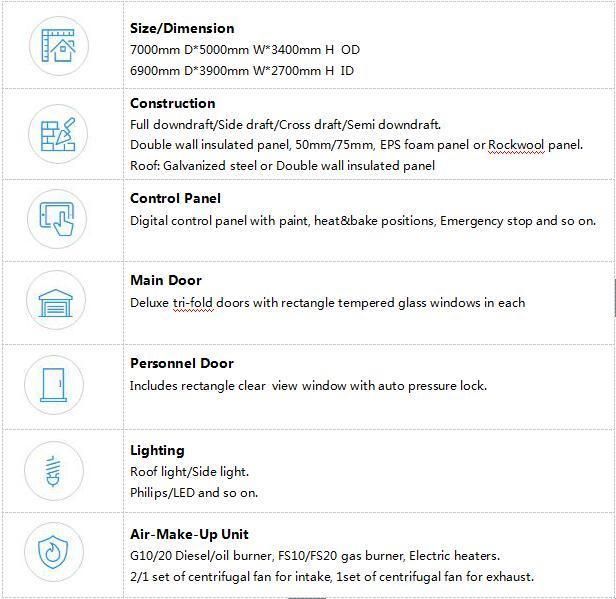

Quick Specification of Car paint booth/Spray booth for painting cars

Model	HY-CB55C
Outside Size(mm)	7000(L)*4000(W)*3400(H)
Inside Size(mm)	6900(L)*3900(W)*2700(H)
Front Door(mm)	3000*2600(W*H)
Side Door(mm)	700*2000(W*H)
Total power	<17kW
Voltage status	380V/3ph&220V/1ph@50Hz
Wall Panel	50mm EPS foam panel
Ceiling panel	Galvanized steel
Basement&floor	Raised metal-base (300mm high) with complete grating floor.
Intake	TWO set of fan, motor: 4kW.
Exhaust	One set of fan, motor: 5.5kW.
By-pass	Pneumatic damper from spraying to baking cycle
Heating System(ELECTRIC)	Infrared heat tubes, Italy Riello one-stage oil burner for option.
Filter System	4 stages of filters: Pre-filter, ceiling filter, floor paint-stop filter, extract paint-stop filter
Lighting	Upper lights, 8units, 4*36W each.
Control System	1set.

Package of the Car paint booth/Spray booth for painting cars


details show of Car paint booth/Spray booth for painting cars


parts show of the Car paint booth/Spray booth for painting cars




Comparison of the high price and lower price


Send us enquiry for Car paint booth/Spray booth for painting cars
