in Groud Mounted Auto Scissor Lift - (ORSL110)

Yancheng Sunrise Import & Export Co., Ltd.
  • Lifting Capacity：3000kgs
  • Driving Type：Hydraulic
  • Certification：CE, ISO
  • Driving Motor Number of Mechanical Lift：1
  • Condition：New
  • Brand：Orient

Base Info

  • Model NO.：ORSL110
  • Design：Scissor
  • Max Lifting Height：1850mm
  • Min Height：100mm
  • Transport Package：Standard Export Packaging
  • Specification：CE & ISO
  • Trademark：Orient
  • Origin：China
  • HS Code：84254290
  • Production Capacity：500units, Month

Description

Basic Info.

Model NO. ORSL110 Design Scissor Max Lifting Height 1850mm Min Height 100mm Transport Package Standard Export Packaging Specification CE & ISO Trademark Orient Origin China HS Code 84254290 Production Capacity 500units/ Month

Product Description

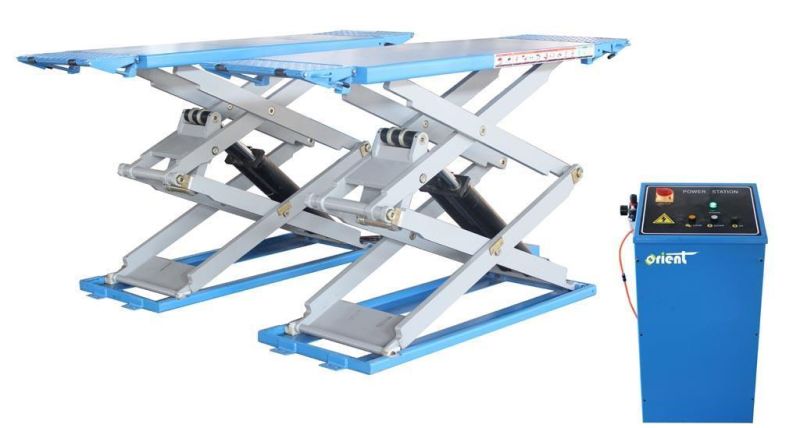

In groud mounted auto scissor lift  - (ORSL110)
in Groud Mounted Auto Scissor Lift - (ORSL110)


FEATURES:

*Ground mounting.

*4-cylinder structure, 110mm minimum height.
*Antiskid platform, aluminum motor prevents overheat.
*24V safety control system.
*24V height limit switch included.
*Safety signal when lowering from 500mm above ground.
*Platforms extension for lifting long vehicles.
*Pneumatic dontrol lock device.
*115% dynamic and 150% static loading test passed.
*CE approved.


ifting Capacity3000kg
Lifting Height1850mm
Minimum Height100mm
Lifting Time50s
Overall Length for Platform1450-1950mm
Overall Width for Platform600mm
Motor Power2.2kw
Power Supply220V/380V
Oil Pressure20Mpa
Air Supply Pressure6-8bar
Weight900kg
Packing Size1550*650*500+540*430*1100mm
