Garage Equipment in Ground Car Scissor Lift (ORSL330)
Yancheng Sunrise Import & Export Co., Ltd.- Lifting Capacity：3000kgs
- Driving Type：Hydraulic
- Certification：CE, ISO
- Driving Motor Number of Mechanical Lift：1
- Condition：New
- Brand：Orient
Base Info
- Model NO.：ORSL330
- Design：Scissor
- Max Lifting Height：2030mm
- Min Height：330mm
- Transport Package：Standard Export Packaging
- Specification：CE & ISO
- Trademark：Orient
- Origin：China
- HS Code：84254290
- Production Capacity：500units, Month
Description
Basic Info.
Model NO. ORSL330 Design Scissor Max Lifting Height 2030mm Min Height 330mm Transport Package Standard Export Packaging Specification CE & ISO Trademark Orient Origin China HS Code 84254290 Production Capacity 500units/ MonthProduct Description

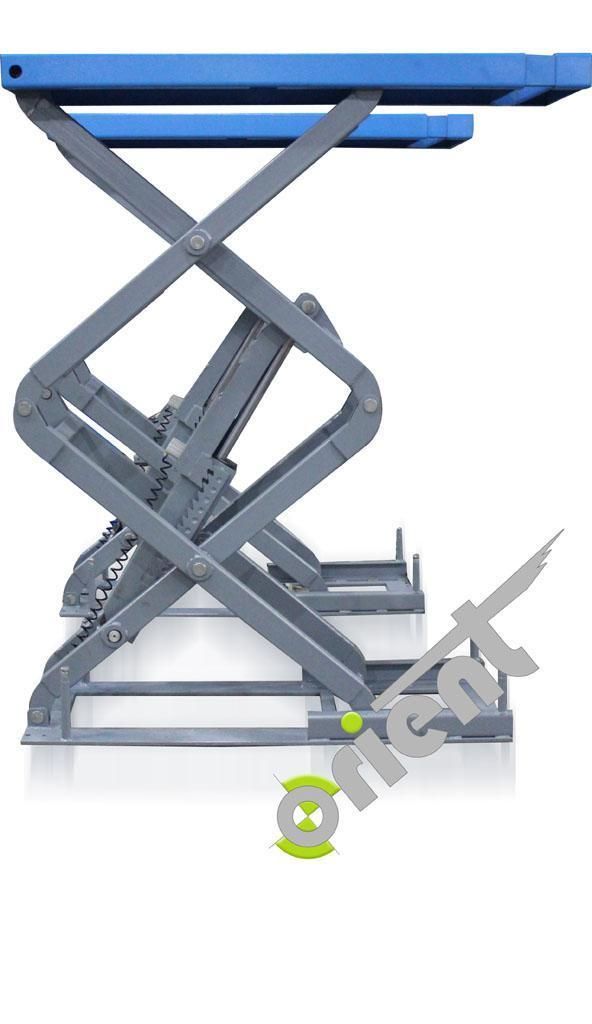

garage equipment in ground car scissor lift
FEATURES:
*In- ground mounting.
*2-cylinders structure,330mm under trench installation.
*Aluminum motor prevents overheat.
*Safety signal when lowering from 500mm above ground.
*24V safety control system.
*24V height limit switch included.
*Pneumatic control lock device.
*Platforms can extension for different long vehicles.
*115% dynamic and 150% static loading test passed.
*CE approved.

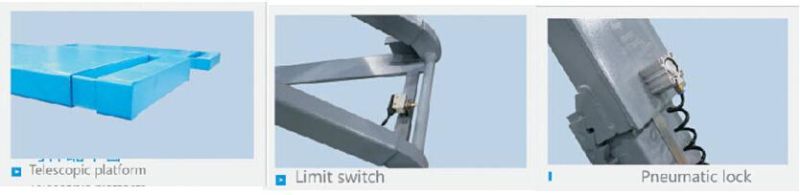

Accessories

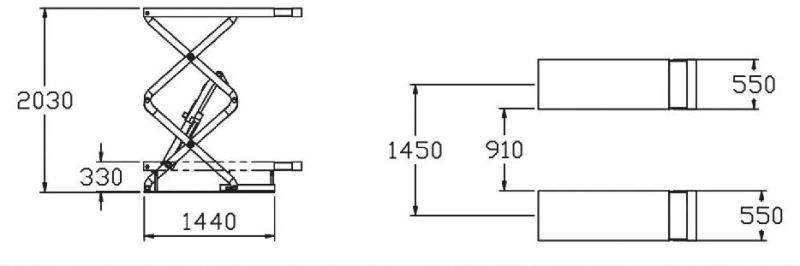

Overall Dimensions
| Lifting Capacity | 3000kg |
| Lifting Height | 2030mm |
| Minimum Height | 330mm |
| Lifting Time | 55-60s |
| Overall Length for Platform | 1500-1800mm |
| Overall Width for Platform | 550mm |
| Width Between Platform | 700mm |
| Motor Power | 2.2kw |
| Power Supply | 220V/380V |
| Oil Pressure | 20Mpa |
| Air Supply Pressure | 6-8bar |
| Weight | 795kg |
| Packing Size | 1600*600*780+540*430*1100mm |
