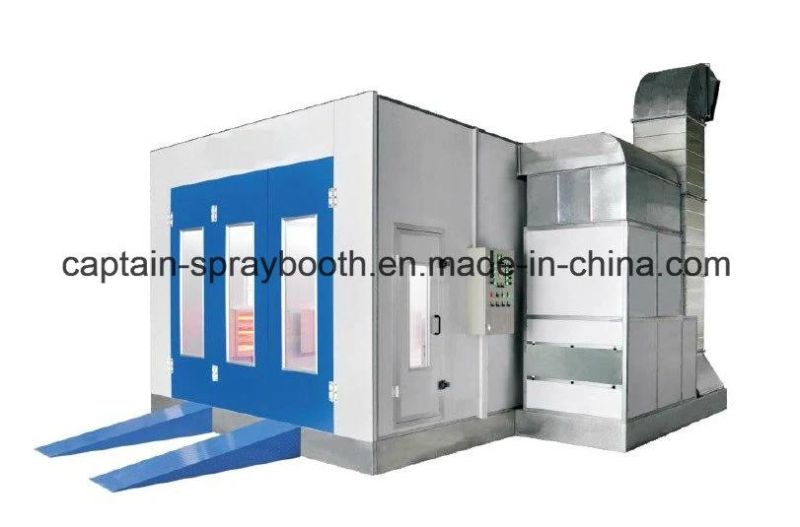

Diesel/Gas/Electric Automotive Large Baking Oven Bus Spray Paint Booth Factory
Qingdao Hua Yushun Commercial Co., Ltd.- Type：Spray Booth
- Certification：CE, Ce, ISO
- Substrate：Sandwich Panel
- Brand：Captain
- Coating：Painting
- Airflow Direction：Fully Undershot-type
Base Info
- Model NO.：captain diesel model
- Heating Mode：Diesel
- Paint Mist Treatment：Dry-type
- Condition：New
- Outside Dimension：7050 * 5400 * 3250(L*W*H)
- Inside Dimension：6900 * 3900 * 2600mm(L*W*H)
- Front Door(mm)：3000*2600(W*H)
- Service Door (mm)：1800*750(W*H)

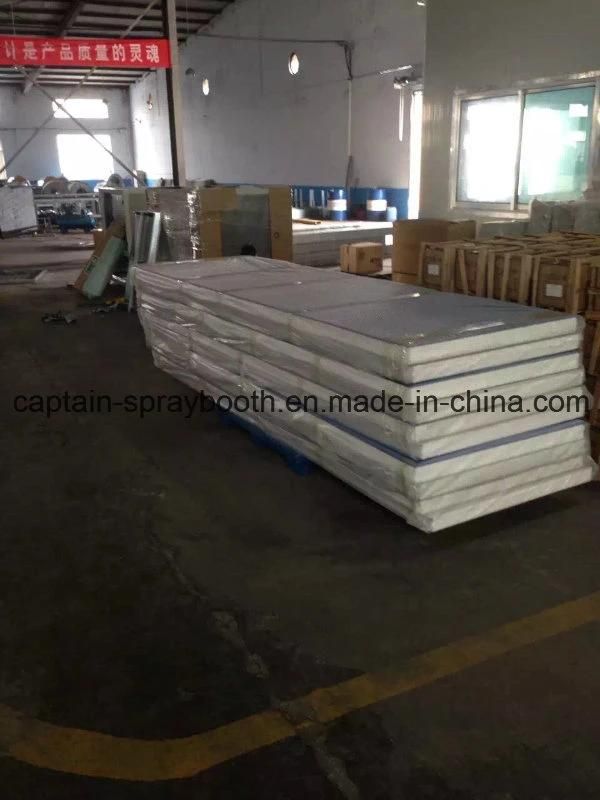

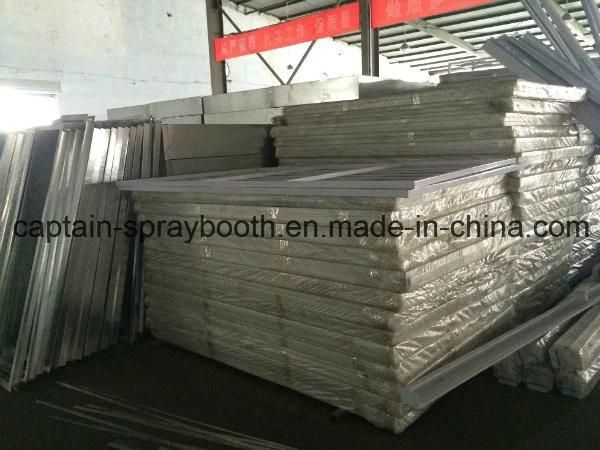

- Wall Panel：50mm EPS Panel, 0.326 Steel, 14kgs,M3
- Air Intake：2X3kw for Intaking,
- Air Exhaust：1X5.5kw for Exhausting
- Basement：300mm Depth with Grids
- Ramp：Three 2000*900mm Ramps
- Heating System：Diesel Burner From Italy Riello
- Transport Package：Export Container ,Pallet ,Disassembly with Carto
- Specification：CE, SGS
- Trademark：OEM,Captain
- Origin：China, Shandong
- HS Code：8424899990
- Production Capacity：100sets,Month
Description
33 KW
Optional Wall Panel 50mm thick rock wool panel with double steels

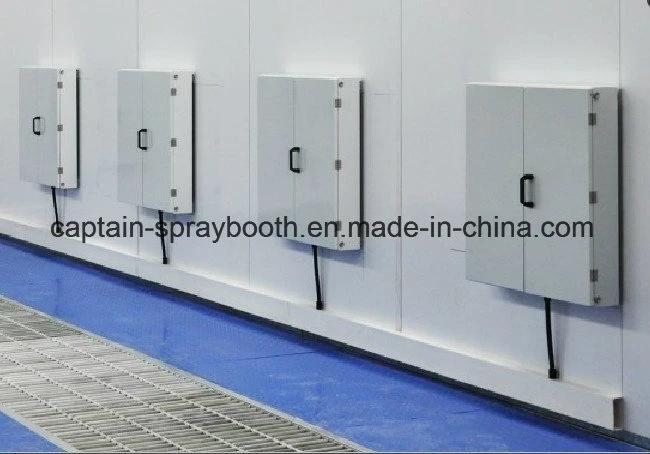

0.376/0.426mm Side Lights 10units×2pcs=20pcs×30w Exhaust 1x4kw centrifugal fan
Optional
0.376/0.426mm
