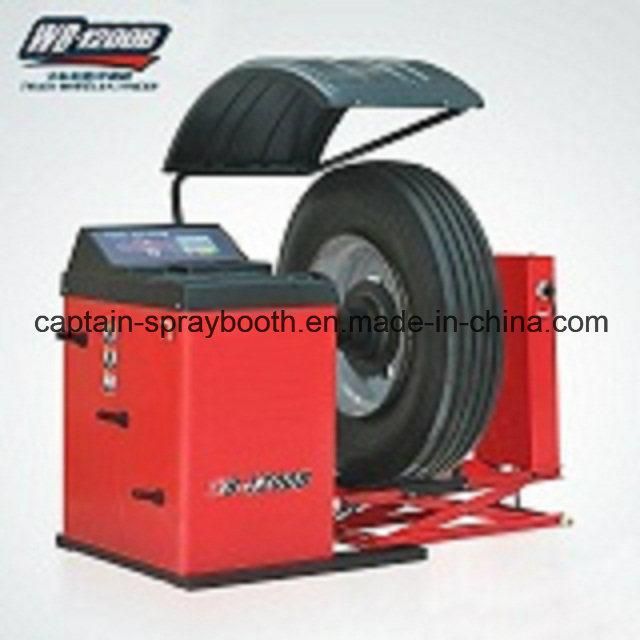

Truck and Car Wheel Balancer Machine with Ce 1200b
Qingdao Hua Yushun Commercial Co., Ltd.- Balancing Type of Wheel：Off-Car Type
- Balancing Range：Big Size Wheel
- Design Type：Horizontal Type
- Function：Wheel Balance
- Working Noise：<70db(A)
- Condition：New
Base Info
- Model NO.：Truck Wheel Balancer-1200B
- Rim Diameter：13"-24" (330mm-609mm)
- Balancing Speed：<=200rpm
- Maximum Wheel Weight：150kg (330lbs)
- Car Type：Bus and Truck
- Rim Width：1.5"-20" (40mm-510mm)
- Net Weight：291kgs
- Transport Package：Export Container ,Pallet ,Disassembly with Carton
- Specification：CE, SGS, ISO
- Trademark：OEM,Captain
- Origin：China, Shandong
- Production Capacity：196sets,Month
Description
Basic Info.
Model NO. Truck Wheel Balancer-1200B Rim Diameter 13"-24" (330mm-609mm) Balancing Speed <=200rpm Maximum Wheel Weight 150kg (330lbs) Car Type Bus and Truck Rim Width 1.5"-20" (40mm-510mm) Net Weight 291kgs Transport Package Export Container /Pallet /Disassembly with Carton Specification CE, SGS, ISO Trademark OEM/Captain Origin China, Shandong Production Capacity 196sets/MonthProduct Description
Specifications:
1. Cycle Time: 8sec.
2. Maximum Wheel Weight: 150Kg
3. Voltage: 220V/380V 50/60HZ 1ph/3ph, power: 500W
4. Balancing Speed: ≤ 200rpm
5. Balancing Precision: ± 1g/± 5g
6. Rim Diameter: 13"-24" (330mm-609mm)
7. Rim Width: 1.5"-20" (40mm-510mm)
8. Work Air Pressure: 8-10bar
9. Technical Features:
Automatic START/STOP
Automatic distance/ wheel diameter measuring
Self calibration
Changeable between gram and ounce
Changeable between millimeter and inch
4 ALU functions for light alloy wheels
Full screen display for the a. B. D. Reading
11. Net Weight: 291Kg, gross weight; 358kgs

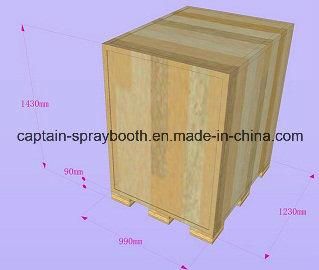

12. Packing Dimension:
1090mm*885mm*1460mm
915mm*520mm*1190mm
13. Volume: 1.93cbm
14. Shipping: 12pcs in one 20 feet container
