• Model NO.：Customized model
• Ventilation System：1X7.5kw Turbo Fan
• Lights：LED Type
• Heating System：Italy Riello G20 Diesel Burner
• Certificate：CE
• Transport Package：Export Container ,Pallet ,Disassembly with Carton
• Specification：SGS, ISO
• Trademark：OEM,Captain
• Origin：Jiangsu, China.
• HS Code：842489990
• Production Capacity：300sets,Month

Basic Info.

Model NO. Customized model Ventilation System 1X7.5kw Turbo Fan Lights LED Type Heating System Italy Riello G20 Diesel Burner Certificate CE Transport Package Export Container /Pallet /Disassembly with Carton Specification SGS, ISO Trademark OEM/Captain Origin Jiangsu, China. HS Code 842489990 Production Capacity 300sets/Month

Product Description

We are the manufacturer of different kinds of spray booth for 20 years , according to customers requirements , we can design the best solution for you , and show you the 3D drawing , then you can know more claerly about the spray booth /preparation bay / powder coating booth / baking oven you need .

1. CE approved
2. German Technology
3. Professional European-style blower system
4. Spray booth professional manufacturer
5. Factory price, energy saving
6. High quality, best sell service, timely delivery
7. We can meet at customer's special requirement

Same quality, our price is lower.
Same price, our quality is better.
We supply 2 years warranty!
This is our real photos of customized conbinetion booths : One set customized spray booth and one set mixing room

If you have any requirements , please feel free to contact me .

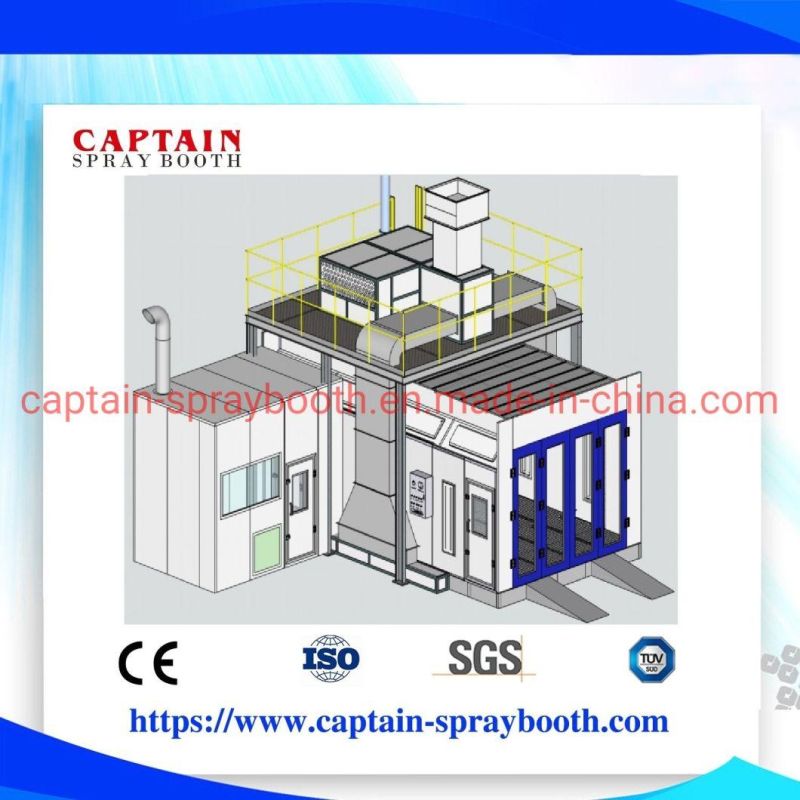

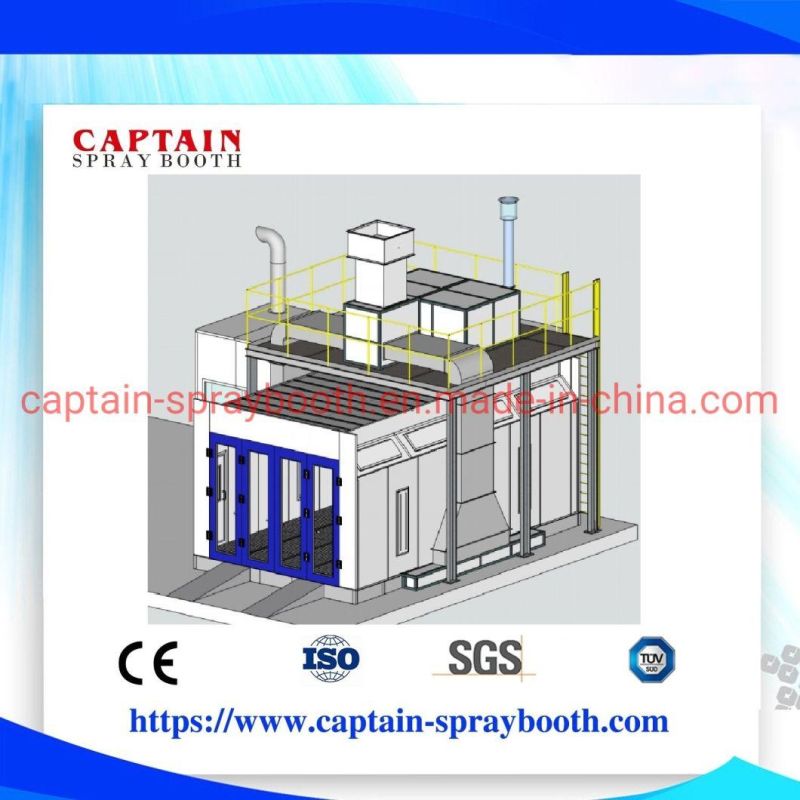

Customized Basic Draw :










This model is our luxury model for 4S repair shop,it's popular for Europe,please check the details,aslo we can design the booth according to your needs,so just tell me your requirements,we will give you the best solution.

Items	Specifications
Outside Dimension	7000×5350×3400mm(L×W×H)
Inside Dimension	6900×3900×2700mm(L×W×H)
Main Door	3-folds: 3200×2600mm (W×H),  aluminium alloy door frame
Personal Door	1-fold: 750×2000mm (W×H),aluminium alloy door frame

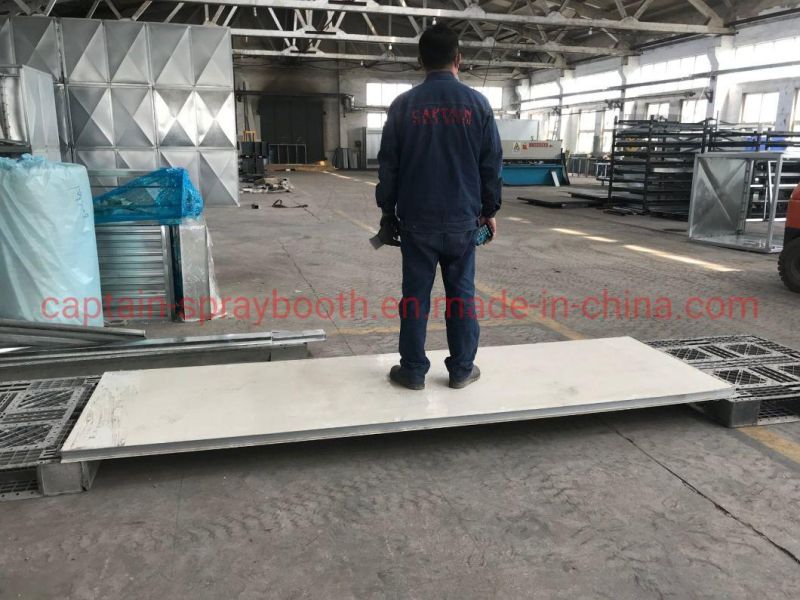

Wall panel	EPS colorful steel skin panel,50mm thick,steel 0.4mm thick,tongue groove style,compound construction,anti-flame and heat-insulation, aluminium roof panel.
Basement & Floor	Complete steel assemble, height is 300mm,  5 rows grilles on the metal basement, 2 Pcs ramps: 630×1800mm (W×L)/pc
Lighting System	Ceiling Lights: 8Units×4Pcs=24Pcs×40W, with electronic ballasts,power-coated light box. Optional : Side Lights: 10Units×2Pcs=20Pcs×36W, with electronic ballasts, vertically set,power-coated light box.
Generator Setting	Intake air from side back direction, quadrate steel frame, colourful coated steel plate
Intake Fan	1 set 7.5kw turbo fan for air intake, air capacity is 28000-30000m3/h
Extract Fan	1 set 7.5kw turbo fan for air exhaust, air capacity is 28000-30000m3/h , both air intake and air exhaust with air adjusting machine
Steel structure	Air intake and air exhaust box on the top , use steel structure to support
Number Of Air Changes (times/hour)	290
Wind Velocity At Full Load Inside The Room(M/S)	0.3m/s
Heating System	1set Riello G20  brand diesel oil burner, maximum heat productivity is 200,000Kcal/h, stainless steel heat exchanger, highest temperature is 80oC, electric damper executes from spraying to baking cycle .
Maximum Working Temperature	80
Heating Rate(/min 20--60)	4-6

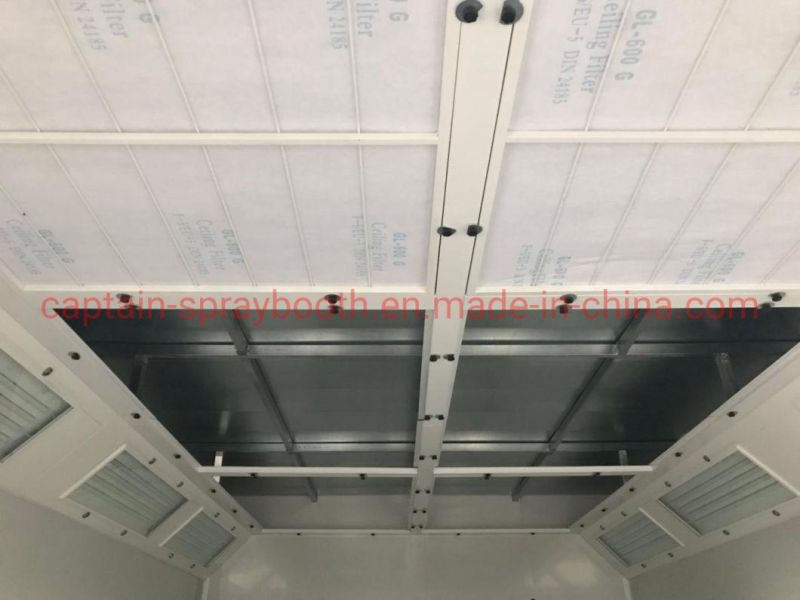

Filtering System	Pre-filter,600G high efficiency filter(ceiling filter),floor filter(fiberglass filter),activated carbon filter.
Control Panel	Spraying, heat spraying, baking temperature, time setting, failure indicator, lighting switch
Filter   Efficiency	≥98%
Noise(db)	≤75
Colour	Blue,red,white,Orange, Grey
Total power(Kw)	16KW



Delivery time : after received you payment ,we will produce , for this standard model ,  the delivery time is 2-3 weeks .

Payment term: 50% TT IN ADVANCE , 50 % before delivery

After sales service : 2 years warranty for most parts (Consumables (eg filters) are not included)

when your workers unloading the goods, If they find something damaged during transit by sea,  please take the pictures of the damage in the container and we will reissue you or give you some compensation.  (Please note: The picture shows the damaged picture of the goods in the container, which is convenient for us to record)

Production

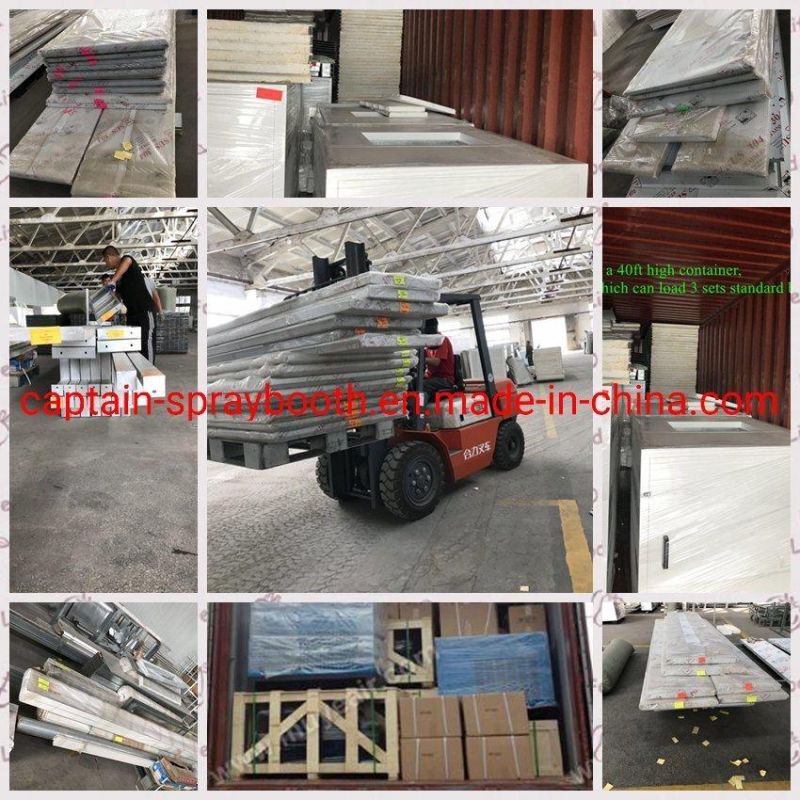

Package and Delivery

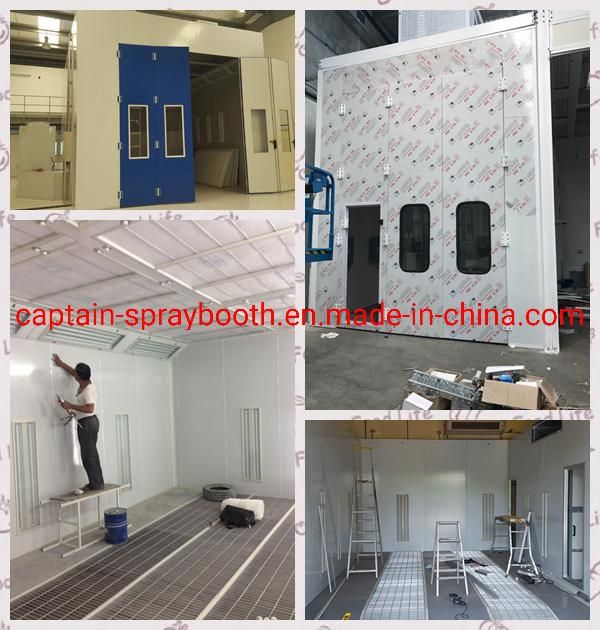

Installation

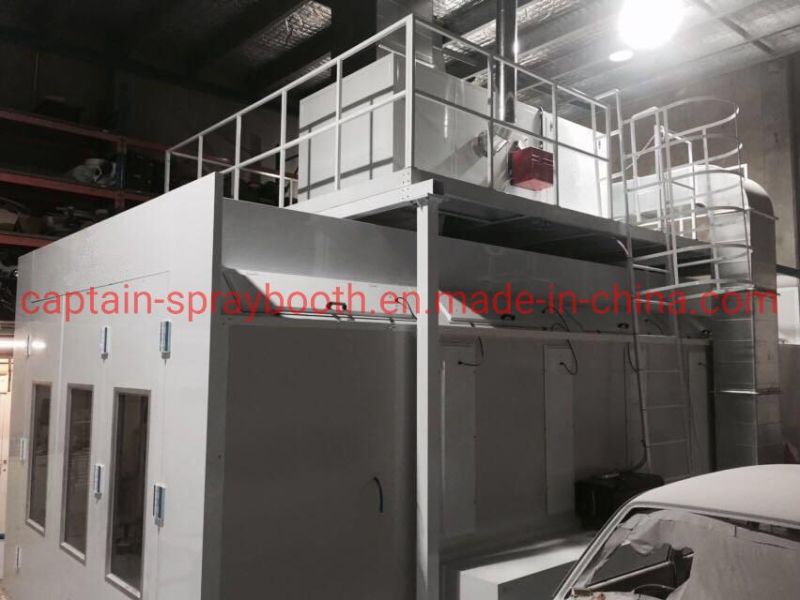

Real pictures of installed model


Workshop


Factory View



Also we can design the spray booth according to your need,so just tell me your needs,we can give you the best solution.

Captain Advantages

*The same price higher quality, the same quality lower price! ! !
*2 years quality warranty! ! !
*Fast and stable supply capability! ! !
*Personalized design to meet customer various needs! ! !
