High Quality Excellent Car Spray Booth From China Factory
Qingdao Hua Yushun Commercial Co., Ltd.- Warranty：24 Months
- Type：Spray Booth
Base Info
- Model NO.：Captain -CD-01
- Certification：CE, GS, UL
- Substrate：Steel
- Brand：Captain
- Coating：Painting
- Airflow Direction：Fully Undershot-type
- Heating Mode：Electric
- Paint Mist Treatment：Dry-type
- Condition：New
- Outside Dimension：7000 * 5400 * 3250(L*W*H)
- Inside Dimension：6900 * 3900 * 2600mm
- Front Door(mm)：2800*2500(W*H)
- Service Door (mm)：1800*650(W*H)
- Total Power：42kw
- Wall Panel：50mm EPS Panel, 0.4 Steel
- Basement：300mm Depth with Grids
- Ramp：Two 2000*750mm Ramps
- Heating Burner：2*12 Units High Energy Infra-Red Lamp
- Air Intake：2 Sets 3kw Centrifugal Fan
- Exhausting Fan：1X4kw(Optional)
- Air Speed：0.3-0.35m,S
- Ventilation Type：Full Downdraft
- Filter Type：Dry
- Certificate：CE
- Transport Package：Export Container ,Pallet ,Disassembly with Carton
- Specification：CE, SGS
- Trademark：Captain,OEM
- Origin：Jiangsu, China.
- HS Code：8424899990
- Production Capacity：196sets,Month
- Package size per unit product：700.00cm * 535.00cm * 340.00cm
- Gross weight per unit product：3500.000kg
Description
7000 * 5400 * 3250(L*W*H)Inside Dimension(mm) 6900 * 3900 * 2600(L*W*H) Front Door(mm) 2800*2500(W*H) Service door (mm) 1800*650(W*H) Total Power 36 KW Cabin system Wall panel 50mm EPS panel, double face steel sheet thickness: 0.4mm
Ceiling panel Galvanized steel sheet.
Basement 300mm depth, patented circumferential diamond plate design, middle with grids.
Ramp Two 2000*750mm ramps Air Make-up System Air Inlet fan system 2 * 3 kw double-intake centrifugal fan, air capacity for each fan: 10500m3/h.
Exhausted fan system 1 * 4 kw double-intake centrifugal fan, air capacity 14500m3/h.
Air Flowing speed 0.40 m/s in empty booth, 0.30 m/s when painting.
Exhausted ducting 3 meters air duct, one flop damper, one weather hood, one anti-bird mesh Purification System Pre-filter G3 grade, Air Inlet filter
Ceiling filter EU5 / F5
Floor filter Green fiber glass filter / G3 grade
Exhausted fan Filters Fiber glass filter.
Heating With 12 units high energy short wave infra-red lamps for heating. 2 pcs/ unit, each lamp 1 KW, total power of infra-red lamp:24KW
Max heating temperature
Heating time 60 degree centigrade
4-6min(20-60 degree centigrade) Lighting System Ceiling lights 8 Units, each 3 x 36W Philips lamps, Total 864 W
Illumination 900LUX Controlling system Switched control panel Spraying & baking switch, lighting switch, emergency stop, breakdown alarm, failure alarm
Basic Draw----we can make draw according to your need and your installation place
Production----every step we do is according to our draw, we have all kinds of advanced machines to make production precise

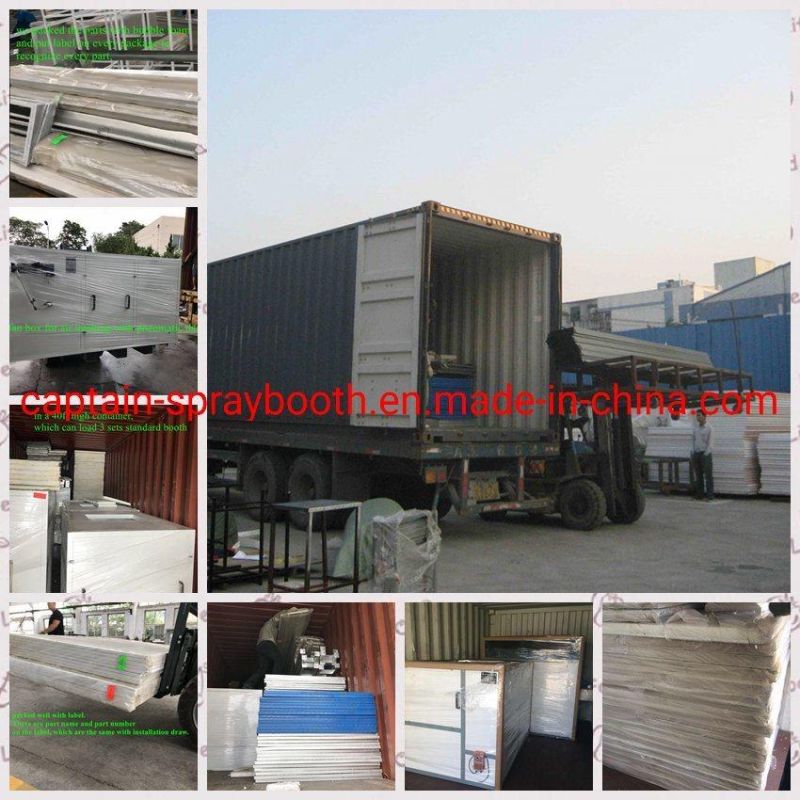

Package and Delivery----every package has a lable, we put part name and number on it. If 3 sets in one high container, we will have 3 different colors of lable for differentiate every ste.
Installation----We can give you installation draw to guide you assemble step by step, and we also have installation vedio on Youtube.

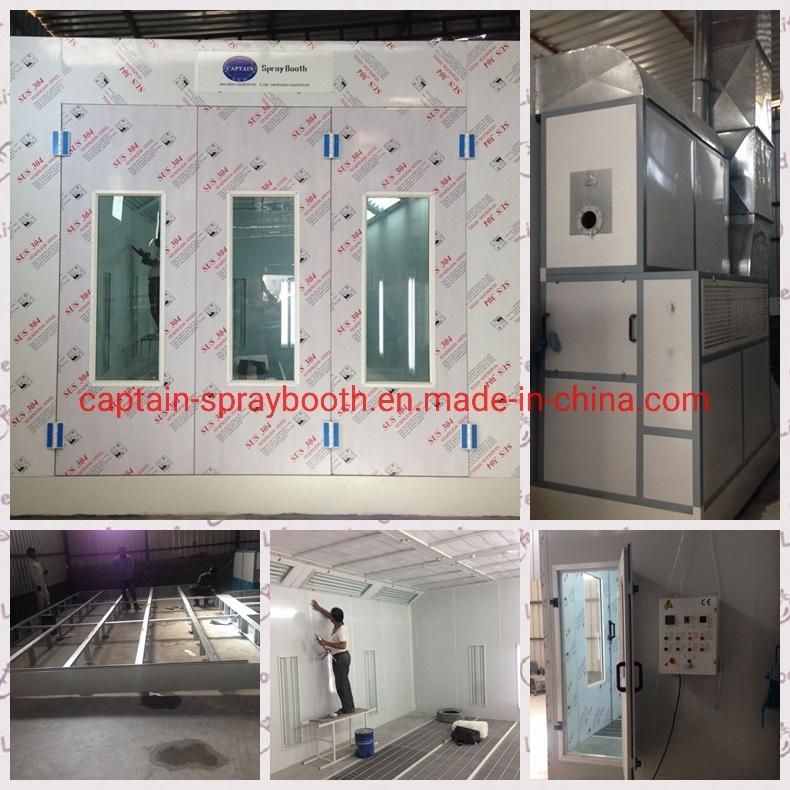

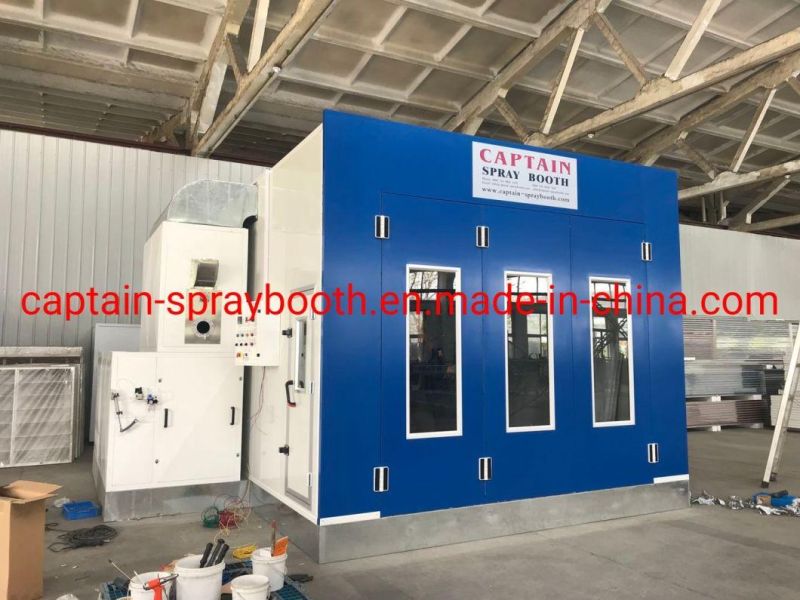

Real pictures of Installed Model----This is the model we installed ourself for testing, it works very well.
The installed models by our customers
Parts
High desensity wall panel, two men stand on it, it will not bend.
Stainless steel heat exchanger, we make ourself, our worker is professional, there is no leaking and strong enough.
Our control box is with SCHNEIDER parts
Different Colors for your choice
Workshop---- pictures for our workshop and stock, you can see we have standard workshop and machine for producing, and enough stock for ensuring fast delivery
Factory View
Sincerely hope can get your inquiry and warmly welcome to our factory!
I'm just here waiting for you!
Introduction of our company
Captain Spray Booth(Qingdao Hua Yushun Commercial Co., Ltd)
Is a professional manufacturer of different kinds of spraybooth and we can customize according to your need and place. And also offering full garage equipments, such as following:
Car care equipment.
Car spray&baking room system
Bus spray&baking room system
Furnitue spray&baking room system
Industrial painting&baking room system
High temperature baking room system
Customized spray&bake booth and Offer car spray baking booth accossories
Services We Supply
Customized service
More Than 90% Of Our Spraying Booth Is Customized.
1. We can design the machines according your requirements. At the same time, our engineers will give you our professional suggestions.
2. We can give you free technical support and consultation such as design your factory, make the factory layout drawing and so on.
After-sales service
1. Our fast and professional after service engineer team can go to your factory and install the machine, give you the operating guidance, and train your employees until they can operate the machine well.
2. We often ask feedback and offer help to our customer whose machine have been used in their factory for some time.
3. We provide 2 years warranty.
Captain Advantages
*The same price higher quality, the same quality lower price! ! !
*2 years quality warranty! ! !
*Fast and stable supply capability! ! !
*Personalized design to meet customer various needs! ! !
Competitive Price and High Quality Spraying Booth with Perfect Service Is From Here.
