• Model NO.：B-01
• Coating：Painting
• Airflow Direction：Cross-flow Type
• Heating Mode：Diesel
• Paint Mist Treatment：Dry-type
• Condition：New
• Outside Dimension：7000X5000X;3200mm(Lxwxh)
• Inside Dimension：6900X3900X2600mm(Lxwxh)
• Main Door：3-Folds: 2800X2500mm (Wxh)
• Personal Door：1-Fold: 650X1800mm (Wxh)
• Wallboard：50mm Double Skinned EPS Panel
• Basement：Complete Steel Assemble
• Intake Fan：2*4kw Centrifugal Fan
• Lighting：Ceiling:8units*3; Side:4units *3
• Heating System：1riello, Baltur Bt14 Diesel Oil Burner
• Total Power：11kw
• Exhaust Fan：1 Set 5.5kw Centrifugal Fan
• Air Speed：0.3-0.35m,S
• Ventilation Type：Full Downdraft
• Filter Type：Dry
• Certificate：CE
• Transport Package：Export Container ,Pallet ,Disassembly with Carton
• Specification：CE, SGS, ISO
• Trademark：OEM,Captain
• Origin：Jiangsu, China.
• HS Code：8424899990
• Production Capacity：196sets,Month

Basic Info.

Model NO. B-01 Coating Painting Airflow Direction Cross-flow Type Heating Mode Diesel Paint Mist Treatment Dry-type Condition New Outside Dimension 7000X5000X;3200mm(Lxwxh) Inside Dimension 6900X3900X2600mm(Lxwxh) Main Door 3-Folds: 2800X2500mm (Wxh) Personal Door 1-Fold: 650X1800mm (Wxh) Wallboard 50mm Double Skinned EPS Panel Basement Complete Steel Assemble Intake Fan 2*4kw Centrifugal Fan Lighting Ceiling:8units*3; Side:4units *3 Heating System 1riello/ Baltur Bt14 Diesel Oil Burner Total Power 11kw Exhaust Fan 1 Set 5.5kw Centrifugal Fan Air Speed 0.3-0.35m/S Ventilation Type Full Downdraft Filter Type Dry Certificate CE Transport Package Export Container /Pallet /Disassembly with Carton Specification CE, SGS, ISO Trademark OEM/Captain Origin Jiangsu, China. HS Code 8424899990 Production Capacity 196sets/Month

Product Description

Items	Spec
Outside Dimension	7000×5000×3200mm(L×W×H)
Inside Dimension	6900×3900×2600mm(L×W×H)
Main Door	3-folds: 2800×2500mm (W×H),  aluminium alloy door frame
Personal Door	1-fold: 650×1800mm (W×H),aluminium alloy door frame
Wallboard	50mm double skinned EPS heat preservation wall panel with tongue and groove joints,steel 0.36mm thick
Basement & Floor	Complete steel assemble, height is 300mm, pave 3rows indented plates and 2rows grilles on the metal basement, 2Pcs ramps: 520×2000mm (W×L)/pc
Lighting System	Inclined ceiling lights: 3Pcs/teamX8team,Waist light 3Pcs/teamX4team,total 1440W.
Generator Setting	Intake air from side back direction, quadrate steel frame, colourful coated steel plate
Intake Fan	2set 4 Kw centrifugal fan, direct drive, air capacity is 36000m³/h
Extract Fan	Optional
Number Of Air Changes (times/hour)	320
Wind Velocity At Full Load Inside The Room(M/S)	0.36m/s
Heating System	1set Riello or Baltur BT14 brand diesel oil burner, maximum heat productivity is 200,000Kcal/h, stainless steel heat exchanger,  highest temperature is 80oC, electric damper executes from spraying to baking cycle .
Maximum Working Temperature	80
Heating Rate(/min 20--60)	4-6
Filtering System	Primary filter, high efficiency filter, activated carbon filter.
Control Panel	Spraying, heat spraying, baking temperature, time setting, failure indicator, lighting switch
Filter   Efficiency	≥98%
Noise(db)	≤75
Colour	Blue,red,white
Total power(Kw)	11KW

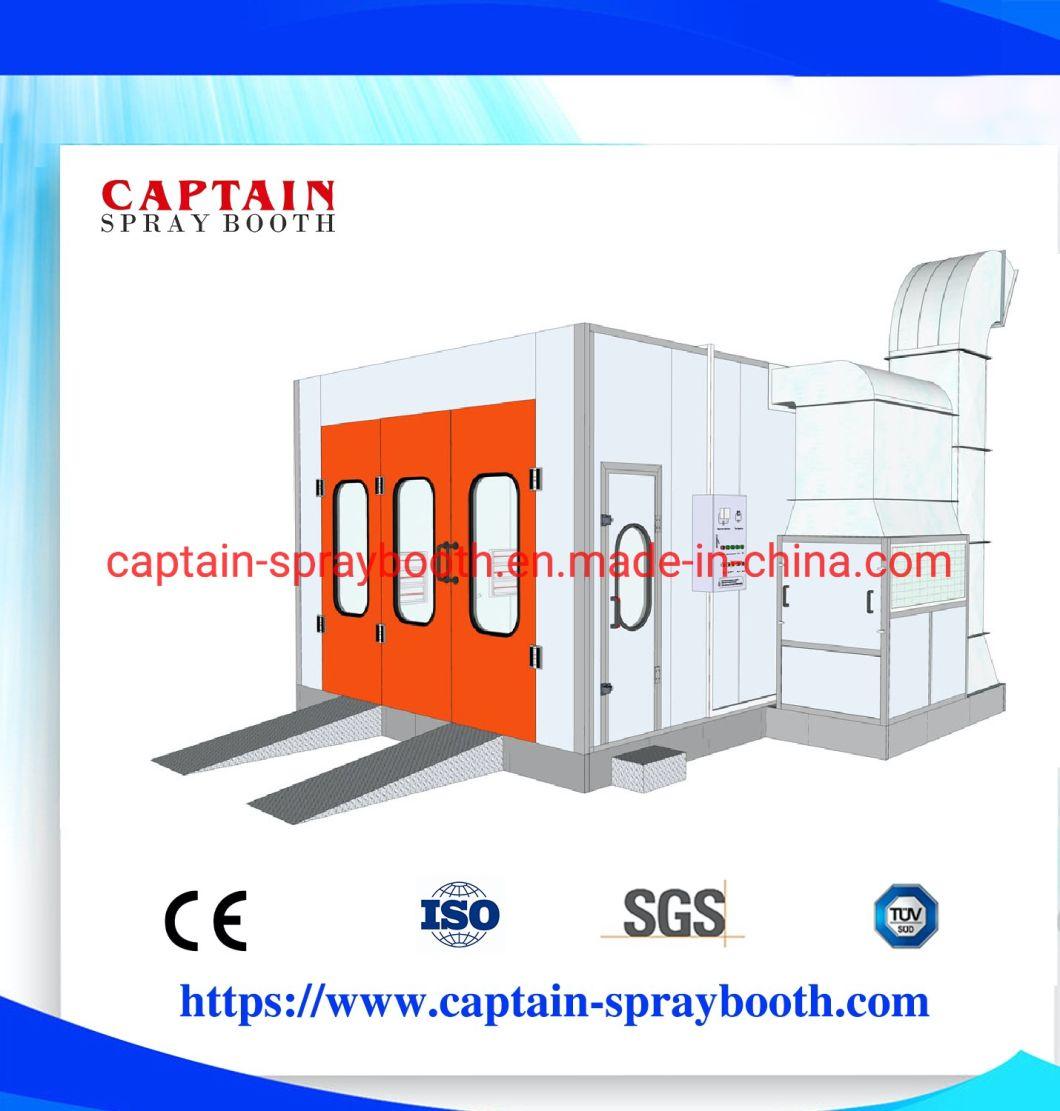

Basic Draw----we can make draw according to your need and your installation place


Production----every step we do is according to our draw, we have all kinds of advanced machines to make production precise

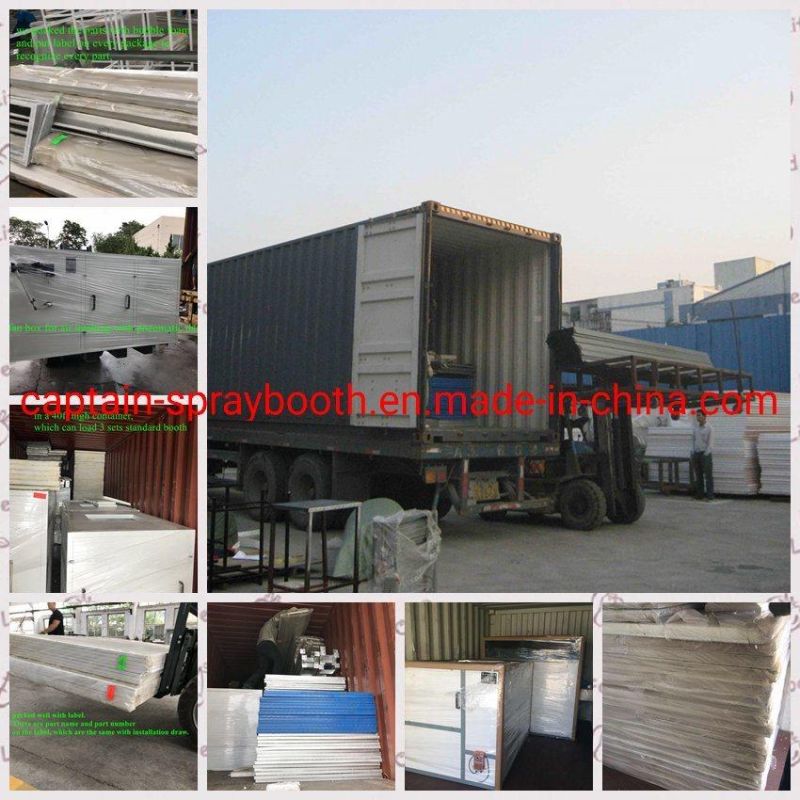

Package and Delivery----every package has a lable, we put part name and number on it. If 3 sets in one high container, we will have 3 different colors of lable for differentiate every ste.


Installation----We can give you installation draw to guide you assemble step by step, and we also have installation vedio on Youtube.

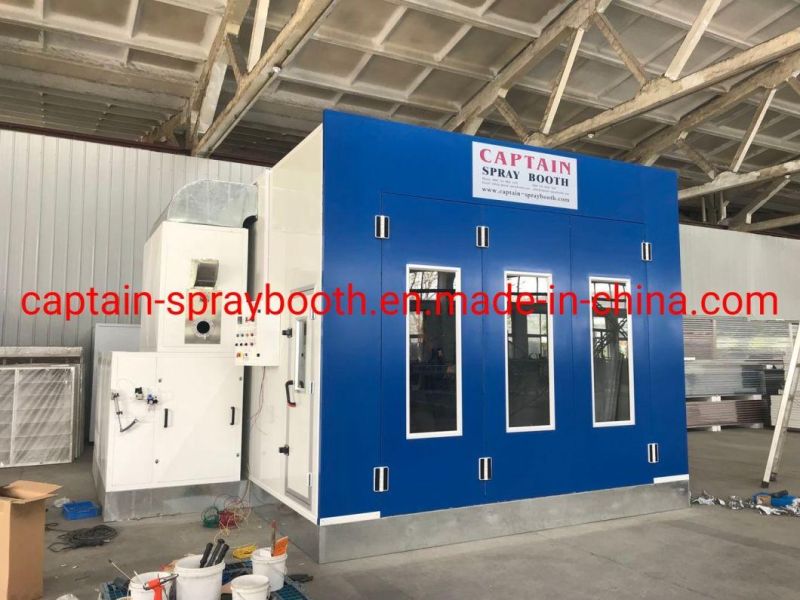

Real pictures of Installed Model----This is the model we installed ourself for testing, it works very well.

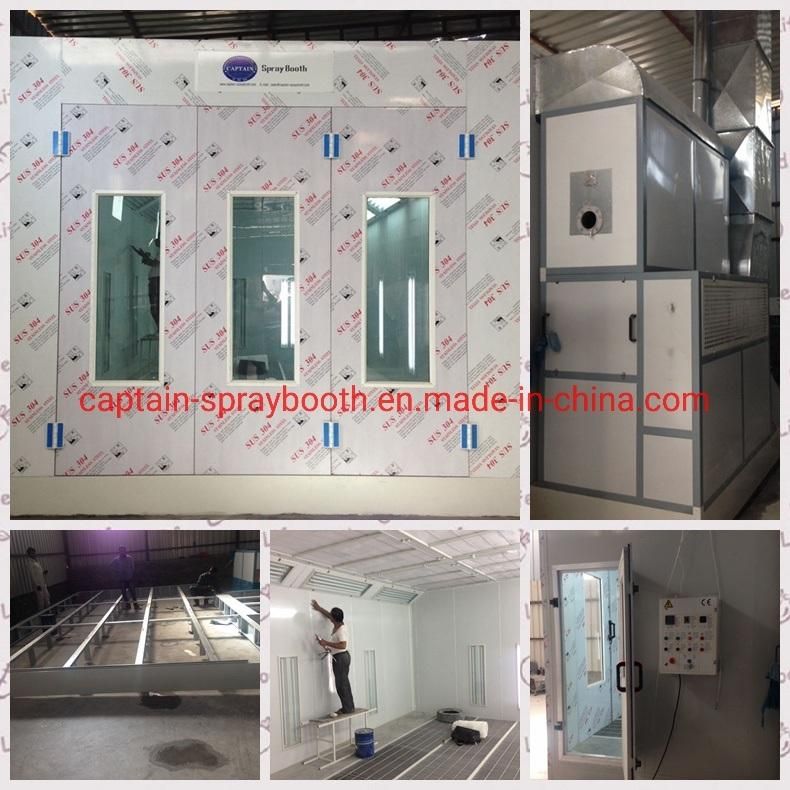

The installed models by our customers

Parts

High desensity wall panel, two men stand on it, it will not bend.


Stainless steel heat exchanger, we make ourself, our worker is professional, there is no leaking and strong enough.



Our control box is with SCHNEIDER parts


Different Colors for your choice

Workshop---- pictures for our workshop and stock, you  can see we have standard workshop and machine for producing, and enough stock for ensuring fast delivery



Factory View





Sincerely hope can get your inquiry and warmly welcome to our factory!
I'm just here waiting for you!

Introduction of our company

Captain Spray Booth(Qingdao Hua Yushun Commercial Co., Ltd)
Is a professional manufacturer of different kinds of spraybooth and we can customize according to your need and place. And also offering full garage equipments, such as following:

Car care equipment.

Car spray&baking room system

Bus spray&baking room system

Furnitue spray&baking room system

Industrial painting&baking room system

High temperature baking room system

Customized spray&bake booth and Offer car spray baking booth accossories


Services We Supply

Customized service

More Than 90% Of Our Spraying Booth Is Customized.

1. We can design the machines according your requirements. At the same time, our engineers will give you our professional suggestions.

2. We can give you free technical support and consultation such as design your factory, make the factory layout drawing and so on.

After-sales service

1. Our fast and professional after service engineer team can go to your factory and install the machine, give you the operating guidance, and train your employees until they can operate the machine well.

2. We often ask feedback and offer help to our customer whose machine have been used in their factory for some time.

3. We provide 2 years warranty.


Captain Advantages

*The same price higher quality, the same quality lower price! ! !
*2 years quality warranty! ! !
*Fast and stable supply capability! ! !
*Personalized design to meet customer various needs! ! !


Competitive Price and High Quality Spraying Booth with Perfect Service Is From Here.
