• Model NO.：ORSL1742
• Design：Scissor
• Max Lifting Height：1700mm
• Min Height：210mm
• Transport Package：Standard Export Packaging
• Specification：CE & ISO
• Trademark：Orient
• Origin：China
• HS Code：84254290
• Production Capacity：500units, Month

Basic Info.

Model NO. ORSL1742 Design Scissor Max Lifting Height 1700mm Min Height 210mm Transport Package Standard Export Packaging Specification CE & ISO Trademark Orient Origin China HS Code 84254290 Production Capacity 500units/ Month

Product Description

Scissor car lifter

FEATURES:

*Super loe ptofile design and perfect for sutface mounted.

*The two-cylinder structure makes the minimum height of 240mm.

*Idea for wheel alignment,body service and other repair work.
*Single platform leveling system makes leveling operation easier and ensures the synchronization.

*With high quality anti-surge valve and ltalian ball valve.

*The mechanical safety lock automatically engaged when rising.

*24V control voltage and 500mm safety height buzzer guard against unexpected hurt or injury.
It has been proofed by dynamic test with 115% of rated capacity and static test with 150% of rated capacity .

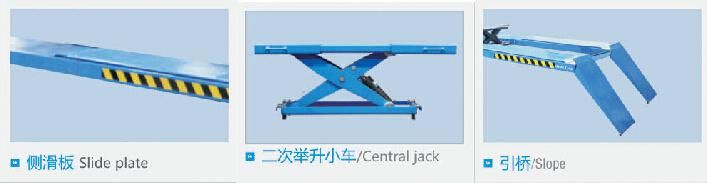

Accessories:

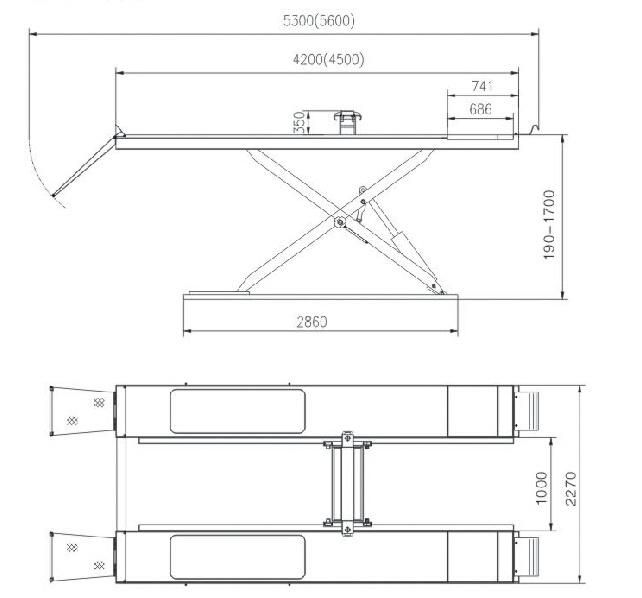

Overall Dimensions:




Rating Capacity	3500kg/
Runway length	4200
Runway Width	635
Central Jack Raised Height	450mm
max. Lifting height	1700
Min. height	210
Lifting time	60s
Ack capacity	2500kg
Central jack raised height	450mm
Motor power	2.2kw
Air supply	6~8Kg/cm2
Power Supply	380V/415V  3phase
Weight	2167
Packing Size	4600/4900*650*700
