• Model NO.：ORSL1842
• Design：Scissor
• Max Lifting Height：1800mm
• Min Height：220mm
• Transport Package：Standard Export Packaging
• Specification：CE & ISO
• Trademark：Orient
• Origin：China
• HS Code：84254290
• Production Capacity：500units, Month

Basic Info.

Model NO. ORSL1842 Design Scissor Max Lifting Height 1800mm Min Height 220mm Transport Package Standard Export Packaging Specification CE & ISO Trademark Orient Origin China HS Code 84254290 Production Capacity 500units/ Month

Product Description

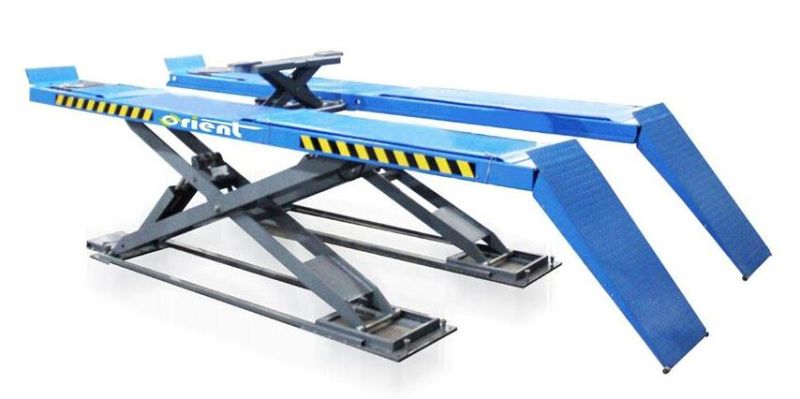

Scissor car lifter



FEATURES:

*Super loe ptofile design and perfect for sutface mounted.

*The two-cylinder structure makes the minimum height of 240mm.

*Idea for wheel alignment,body service and other repair work.
*Single platform leveling system makes leveling operation easier and ensures the synchronization.

*With high quality anti-surge valve and ltalian ball valve.

*The mechanical safety lock automatically engaged when rising.

*24V control voltage and 500mm safety height buzzer guard against unexpected hurt or injury.
It has been proofed by dynamic test with 115% of rated capacity and static test with 150% of rated capacity .

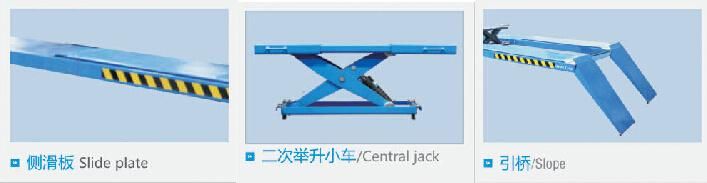

Accessories:

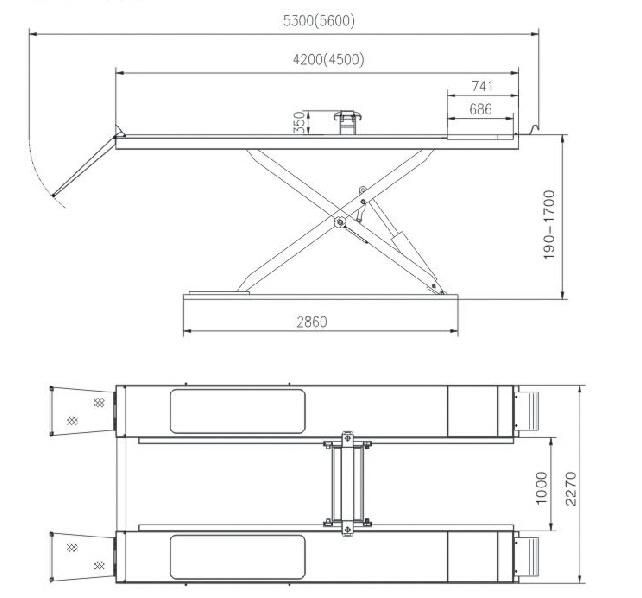

Overall Dimensions:




Rating Capacity  4000kg Runway length 4500mm Runway Width 635mm Central Jack Raised Height 450mm max. Lifting height 1800mm Min. height 220mm Lifting time 60s Ack capacity 2500kg Central jack raised height 450mm Motor power 2.2kw Air supply 6~8Kg/cm2 Power Supply 380V/415V  3phase Weight 2277kg Packing Size 4600/4900*650*700
